Brother HL-5350DN Service Manual

2-5
Confidential
3.2.1 Plate-up Function of the Paper Tray
The plate ASSY in the paper tray is pushed up with the motor drive and not with the spring in
order to maintain the constant pressure to the feed roller and to give the paper feeding
performance.

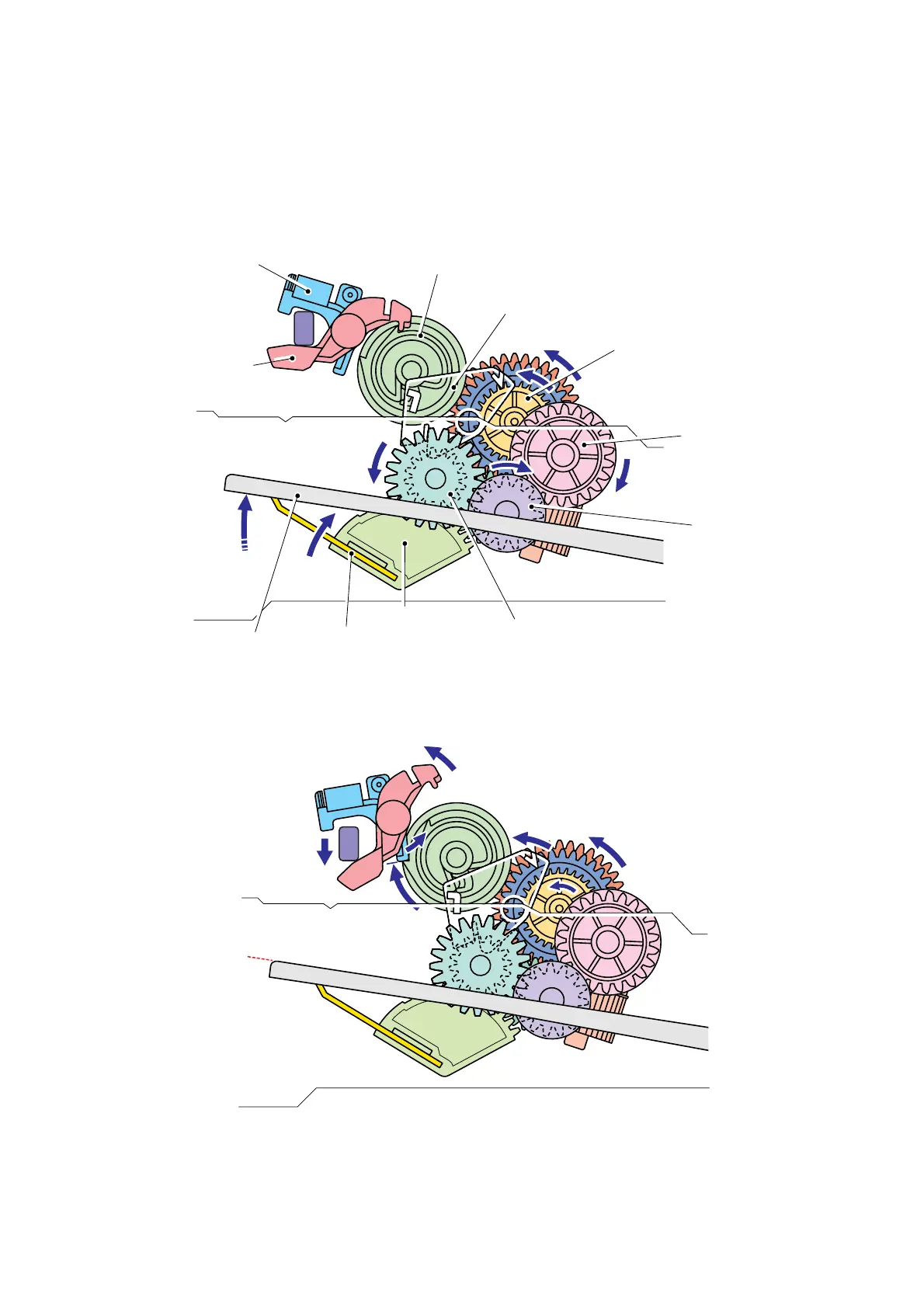

When the paper tray (Tray1 cassette) is installed into the printer, the lift gear 46 is rotated,
and the motor drive is transmitted to the plate ASSY so that it is pushed up.
Fig. 2-5
When the feed roller is pushed up, the hook is released by the lift arm, and the rotation of the
clutch gear is stopped. Then, the pressure plate is stopped to push up.
Fig. 2-6
When the tray is pulled out from the printer, the pressure plate is returned to the original position.
When the tray is put into the printer, the above operation is performed from the start again.
Lift gear 46
Gear 21-16
Gear 15
P/P gear 22/B23
tray drive
P/P clutch hook B
Plate up plate
Plate ASSY
P/P differential
P/P gear 29 clutch cam
P/P clutch hook A2
P/P clutch hook A1
Stop

Brother HL-5350DN Specifications

General

Color	No
N-up printing	4, 9, 16, 25
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	32 MB
Processor model	NEC VR5500
Maximum internal memory	544 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	54 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 105 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Supported network protocols (IPv4)	IPv4: ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD responder, WebServicesPrint, IPv6: NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMPv6, LLTD responder, WebServicesPrint
Networking features	10/100 Base-TX
Power consumption (active)	675 W
Compatible operating systems	Windows: Vista, 2000 Prof., XP Home Edition, XP Prof. Edition (32 & 62 bits), Server 2003 (32 & 64 bits), Server 2008. MacIntosh: Mac OS X 10.3.9 + Linux
Power consumption (standby)	75 W
Power consumption (PowerSave)	6 W
Package weight	11500 g

Weight and Dimensions

Dimensions (WxDxH)	371 x 384 x 246 mm
