8.5 Tray MP ASSY
(1) Open the MP tray cover ASSY.
(2) Release the Pins of the Tray MP ASSY from the MP tray cover ASSY.
(3) Remove the Tray MP ASSY.

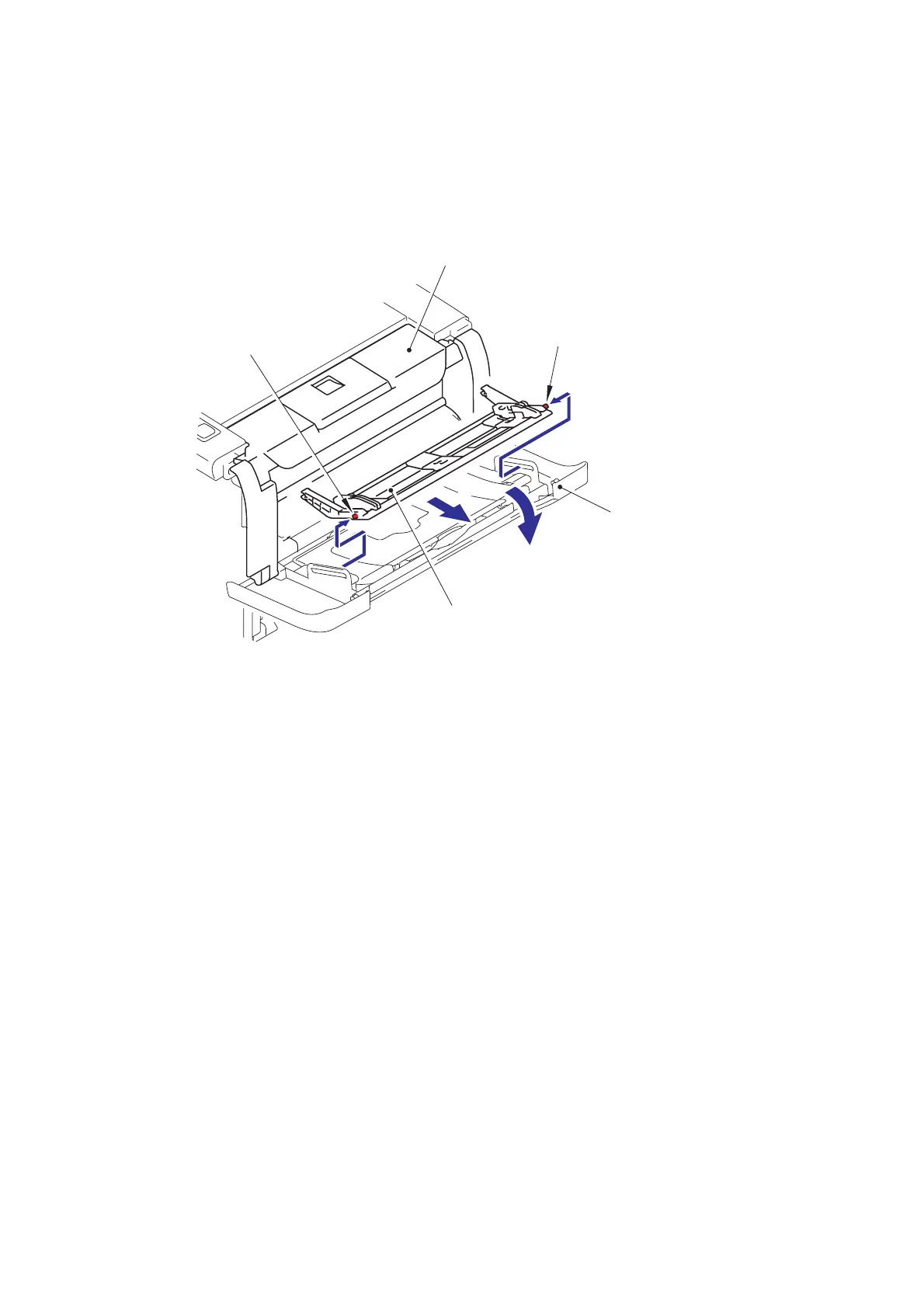

Fig. 5-24
Process cover ASSY
Pin
Tray MP ASSY
MP tray cover ASSY
2
2
1
Pin
3
