9.4 LT Side Cover L
(1) Remove the bind B M4x12 Taptite screw.
(2) Remove the cup S M3x6 Taptite SR screw.
(3) Release the Hooks in the order of the arrows and remove the LT side cover L.

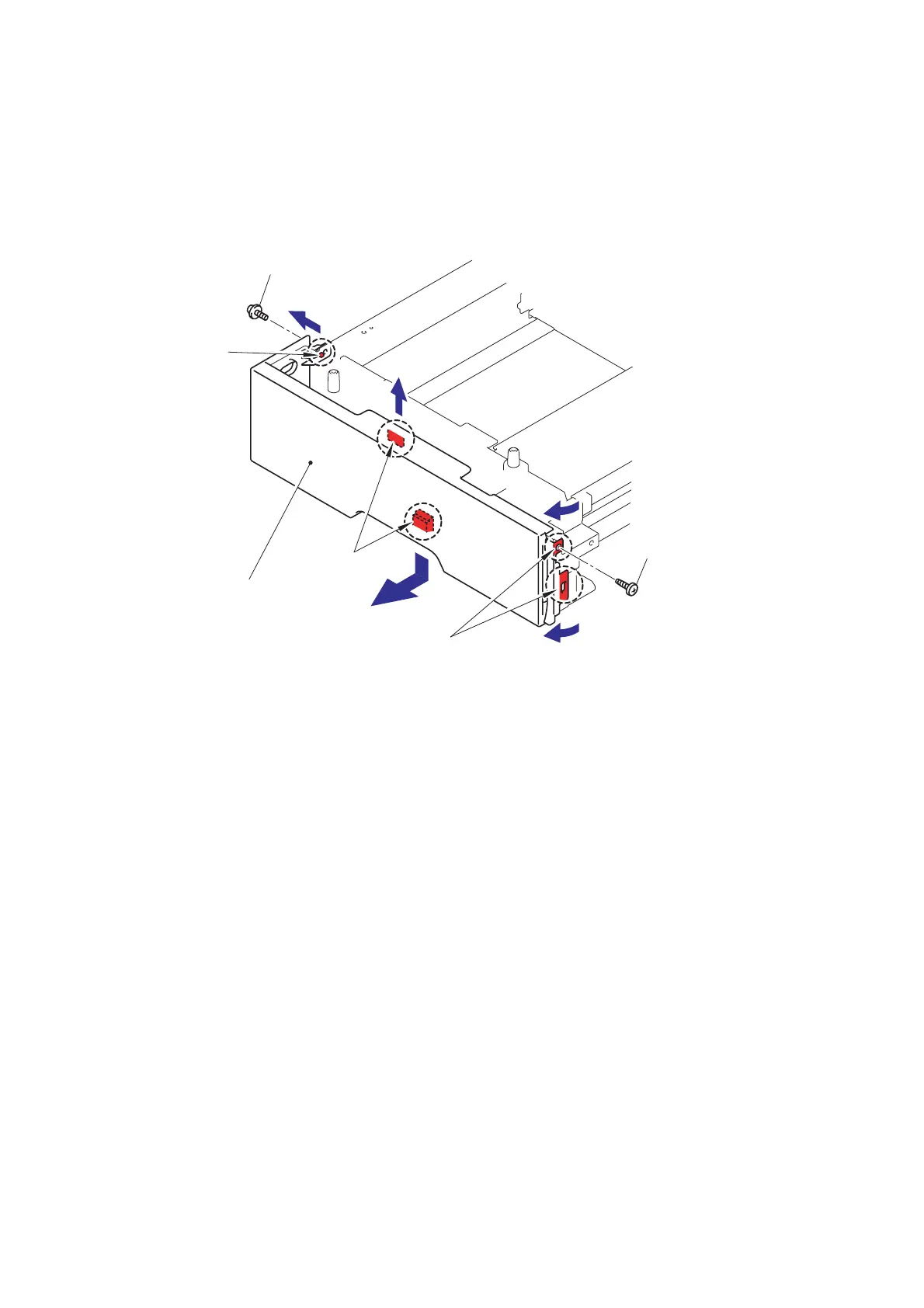

Fig. 5-144
Hooks
<Left side>
Hooks
Boss
LT side cover L
Taptite, bind B M4x12
Taptite, cup S M3x6 SR
3a
3b
3e
3d
3c
