8.11.1 Inner Chute/Pinch Roller Holder
(1) Remove the seven bind B M4x12 Taptite screws, and then remove the Inner chute.
(2) Release all Hooks of the Inner chute and lift up the front side of the Inner chute.
(3) Pull out the Inner chute to the front side.

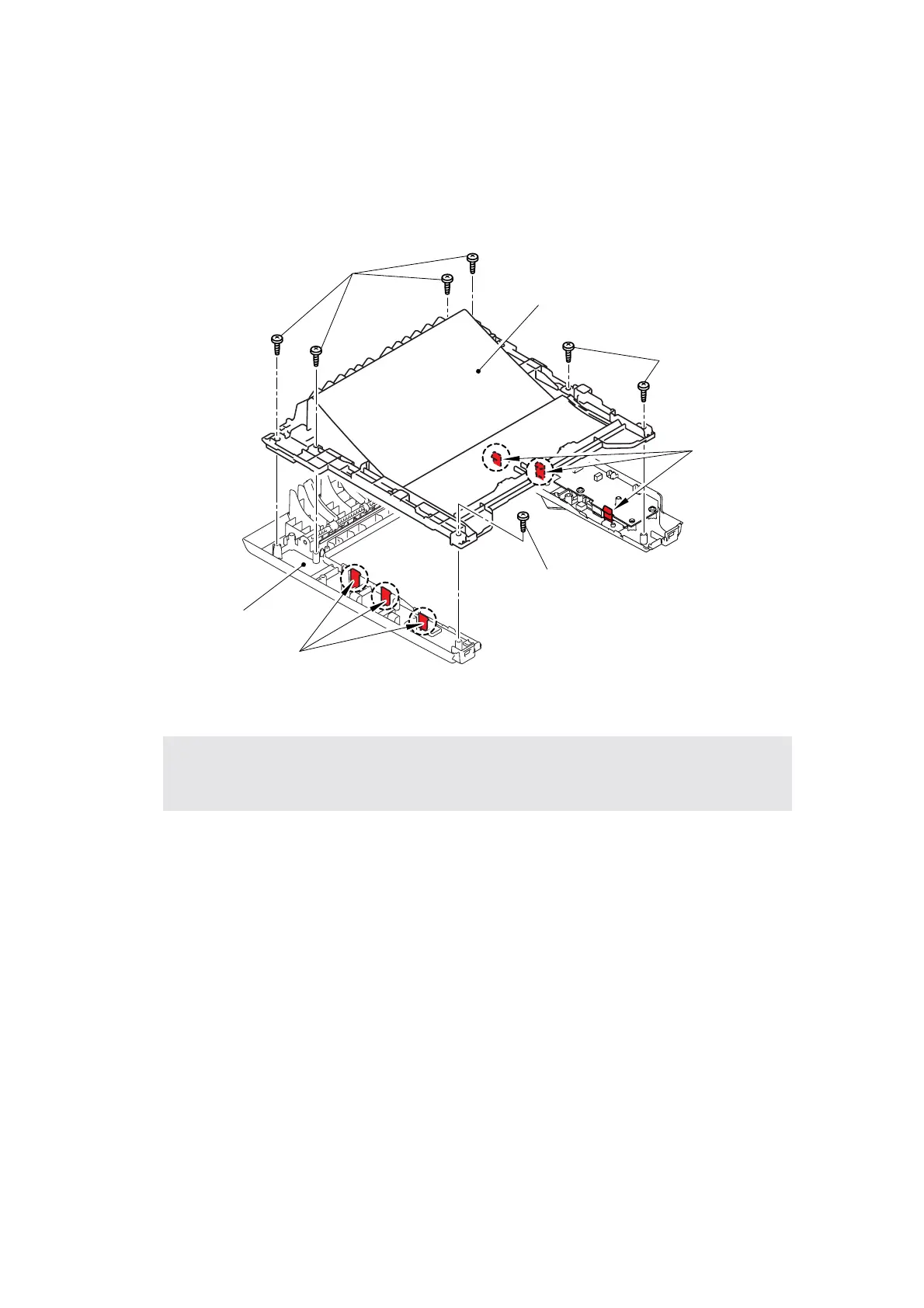

Fig. 5-46
Assembling Note:
• When assembling the Inner chute, secure the screws according to the order of alphabet
described in the figure above.
Taptite, bind B M4x12
Taptite, bind B M4x12
Inner chute
Taptite, bind B M4x12
Hooks
Hooks
Top cover printed ASSY
a
e
f
g
b
d
c
