5-109
Confidential

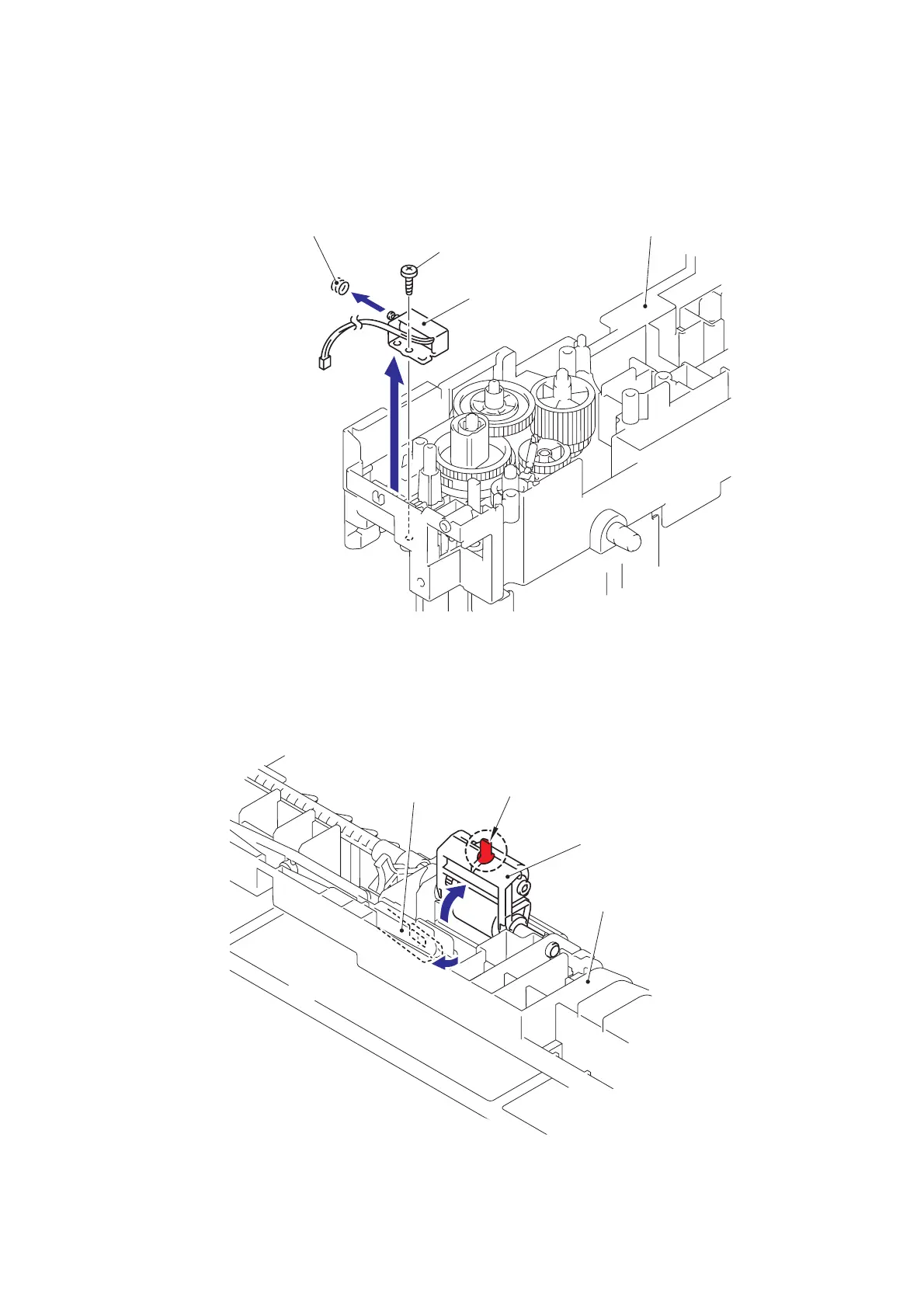

9.11 LT Solenoid ASSY
(1) Remove the bind B M3x10 Taptite screw, and then remove the LT solenoid ASSY.
(2) Remove the Solenoid release spring P/R from the LT solenoid ASSY.
Fig. 5-160
9.12 Roller Holder ASSY
(1) Push the Lift arm to the direction of the arrow 1a and pull out the pin of the Roller holder
ASSY. Then, turn the Roller holder ASSY to the direction of the arrow 1b.
Fig. 5-161
Solenoid release spring P/R
Taptite, bind B M3x10
LT solenoid ASSY
LT frame L
Lift arm
Pin
Roller holder ASSY
LT paper feed frame
1b
1a
