8.10.1 Panel PCB ASSY
(1) Turn the Top cover printed ASSY upside down.
(2) Remove the three cup B M3x8 Taptite screws, and then remove the Panel PCB ASSY.

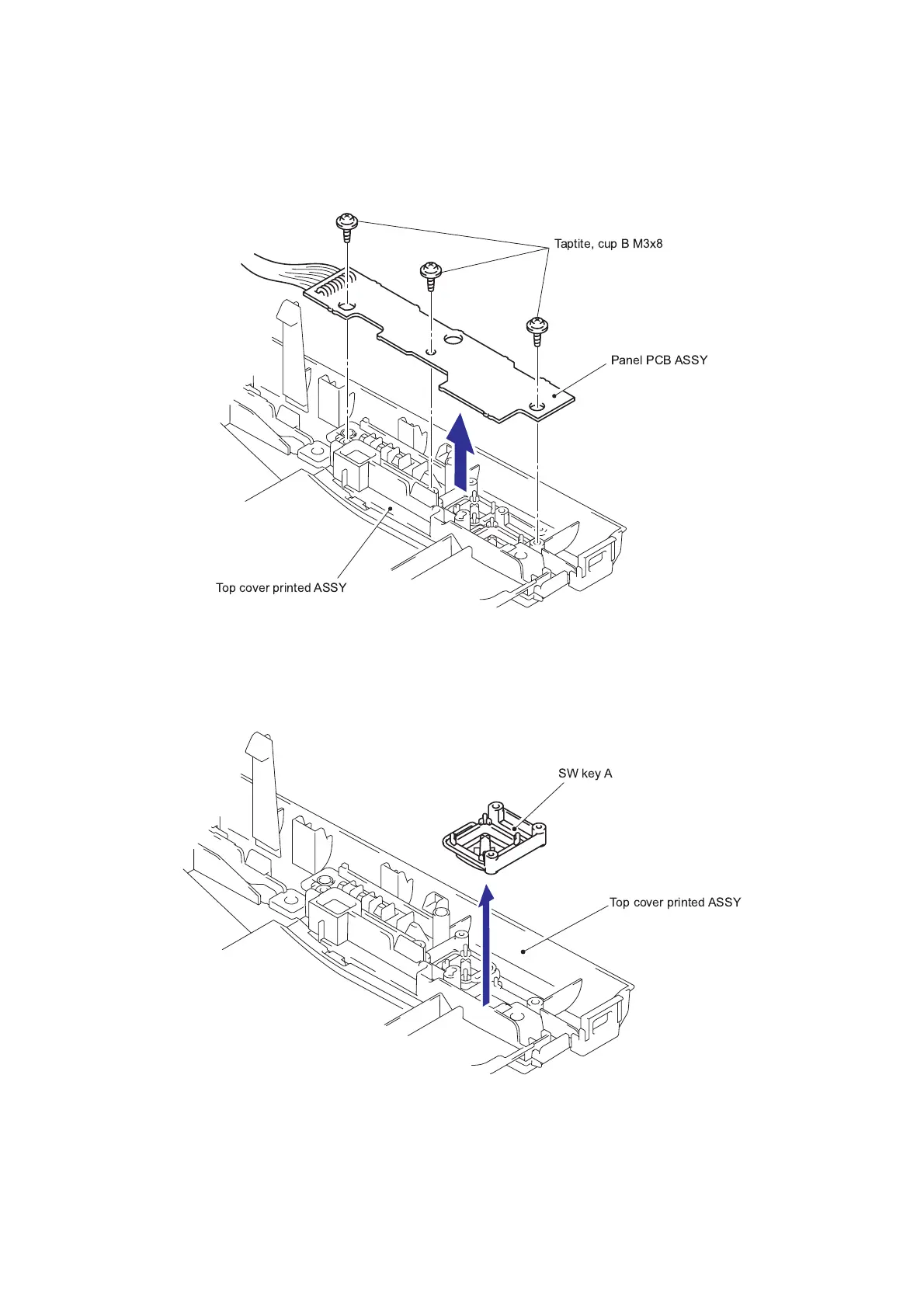

Fig. 5-39
8.10.2 SW Key A/B
(1) Remove the SW key A from the Top cover printed ASSY.
Fig. 5-40
   
  
   
SW key A
Top cover printed ASSY
