9.6 LT PCB ASSY
(1) Disconnect the connectors from the LT PCB ASSY.
(2) Remove the bind B M4x12 Taptite screw, and then remove the LT PCB ASSY.

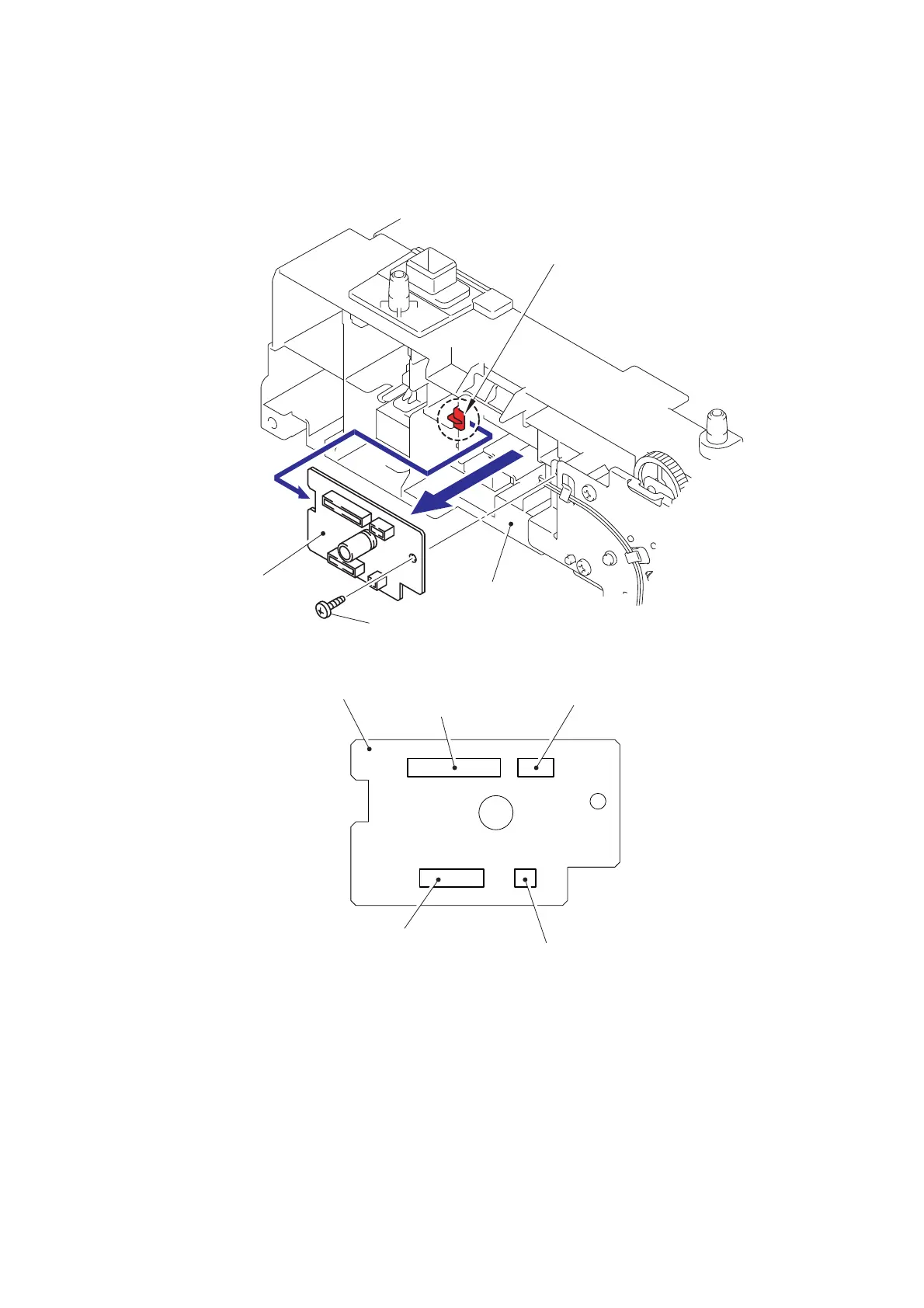

Fig. 5-146
<Left side>
Hook
LT PCB ASSY
LT frame L
Taptite, bind B M4x12
LT sensor PCB connector
LT solenoid connector
LT PCB ASSY
LT sensor harness
ASSY 1 connector
LT sensor harness
ASSY 2 connector
