Brother HL-5350DN

5-81
Confidential
8.34 MP Unit

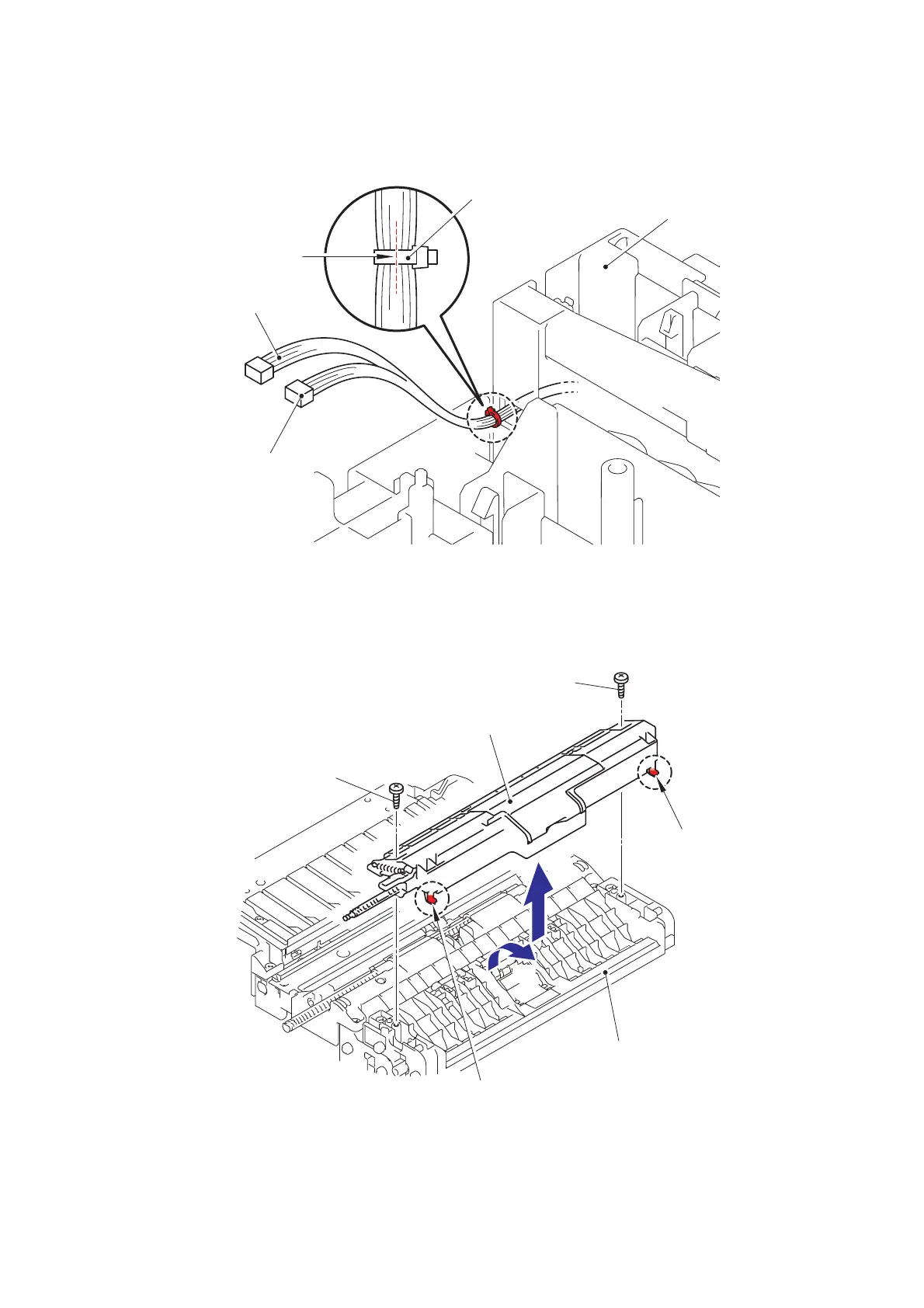

(1) Cut the Binder bundling the harnesses with nippers.
Fig. 5-112
(2) Remove the two bind B M3x8 Taptite screws.
(3) Lift up the back side of the MP feed frame and pull up the MP feed frame to remove.
Fig. 5-113
Binder
Paper feed frame
Cut
MP PE sensor connector
PE EG sensor connector
Hook
Hook
Paper feed frame
Taptite, bind B M3x8
MP feed frame
3b
3a
Taptite, bind B M3x8
