5-41
Confidential

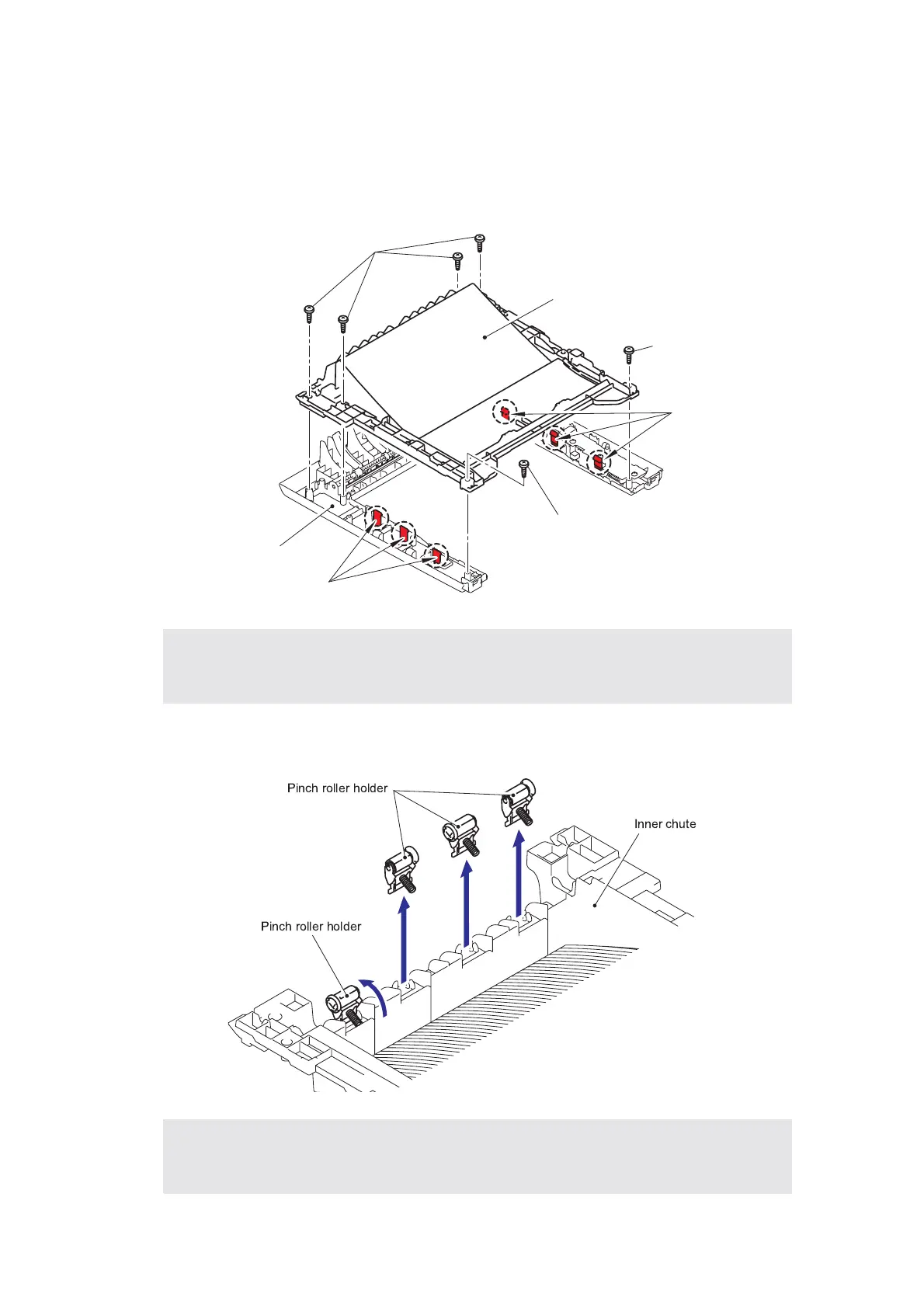

8.10.3
Inner Chute/Pinch Roller Holder
(1) Remove the six bind B M4x12 Taptite screws, and then remove the Inner chute.
(2) Release all Hooks of the Inner chute and lift up the front side of the Inner chute.
(3) Pull out the Inner chute to the front side.
Fig. 5-42
(4) Turn the Inner chute upside down.
(5) Remove the Pinch roller holder from the Inner chute.
Fig. 5-43
Assembling Note:
When assembling the Inner chute, secure the screws according to the order of alphabet
described in the figure above.
Assembling Note:
When assembling the Pinch roller holder, be sure that its direction is correct as shown in
the figure above.
Top cover printed ASSY
Hooks
Hooks
Inner chute
Taptite, bind B M4x12
Taptite, bind B M4x12
Taptite, bind B M4x12
a
f
e
b
d
c
Inner chute
Pinch roller holder
Pinch roller holder
