8.6 MP Tray Cover ASSY/Process Cover ASSY/Emblem cover

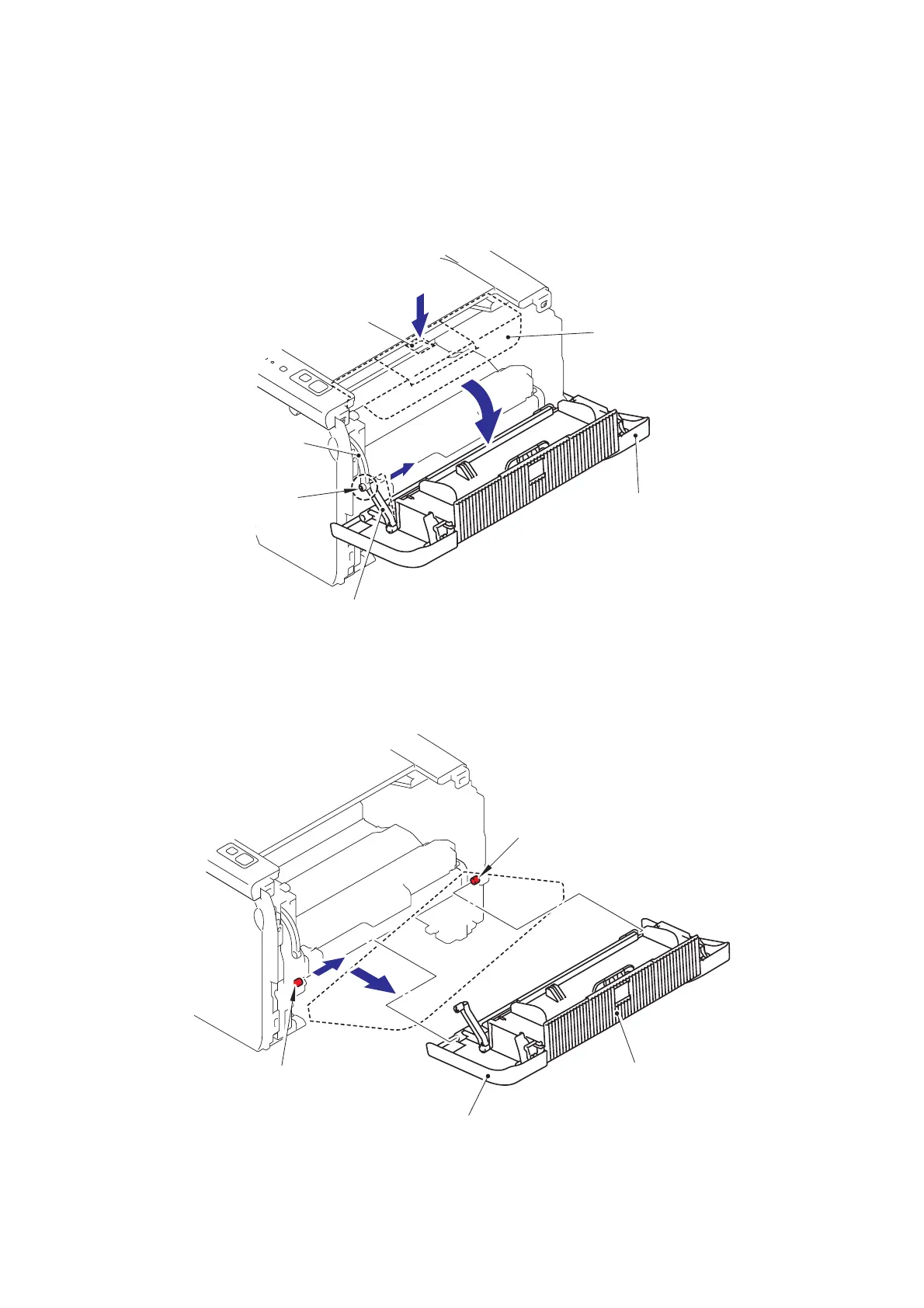

(1) Push the front cover release button.
(2) Open Process cover ASSY.
(3) Release the Hook to remove the Process cover stopper.
Fig. 5-25
(4) Remove the MP tray cover ASSY and the Process cover ASSY to the direction of 4a and
4b to release the Pins, and remove them.
Fig. 5-26
1
2
3
Process cover ASSY
MP tray cover ASSY
Process cover stopper
Drive release link
Front cover release button
Hook
Pin
Pin
4a
4b
Process cover ASSY
MP tray cover ASSY
