Brother HL-5350DN

5-112
Confidential
9.15 LT Sensor PCB ASSY

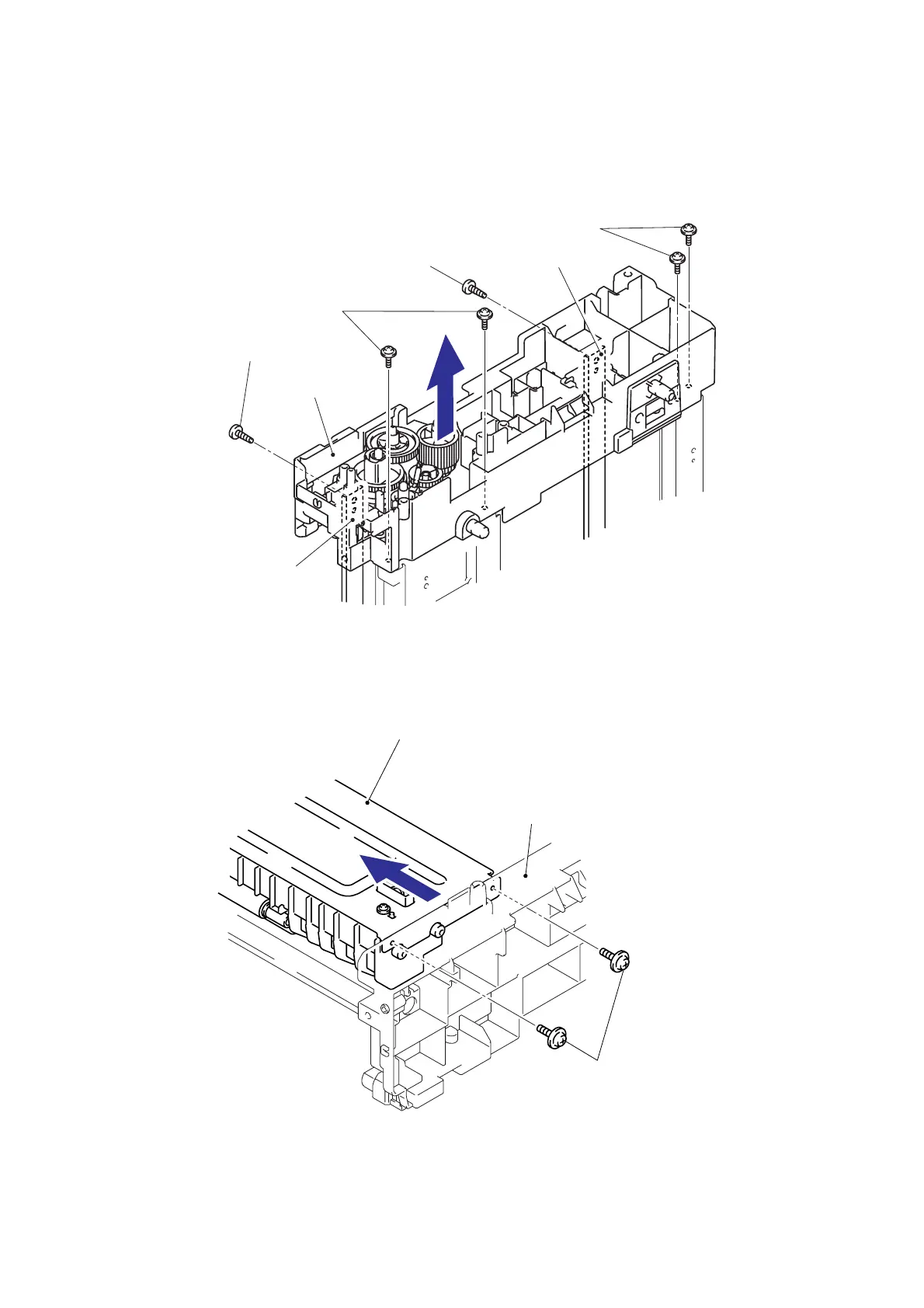

(1) Remove the two bind B M4x12 Taptite screws.
(2) Remove the four cup S M3x6 Taptite SR screws, and then remove the LT frame L.
Fig. 5-166
(3) Remove the two cup S M3x6 Taptite SR screws, and then remove the LT paper feed
frame.
Fig. 5-167
Taptite, cup S M3x6 SR
Taptite, cup S M3x6 SR
Under bar
Under bar
LT frame L
Taptite, bind B M4x12
Taptite, bind B M4x12
LT paper feed frame
LT frame R
Taptite, cup S M3x6 SR
