Brother HL-5350DN Service Manual

3-5
Confidential
2. DISTINGUISH ERROR CAUSE

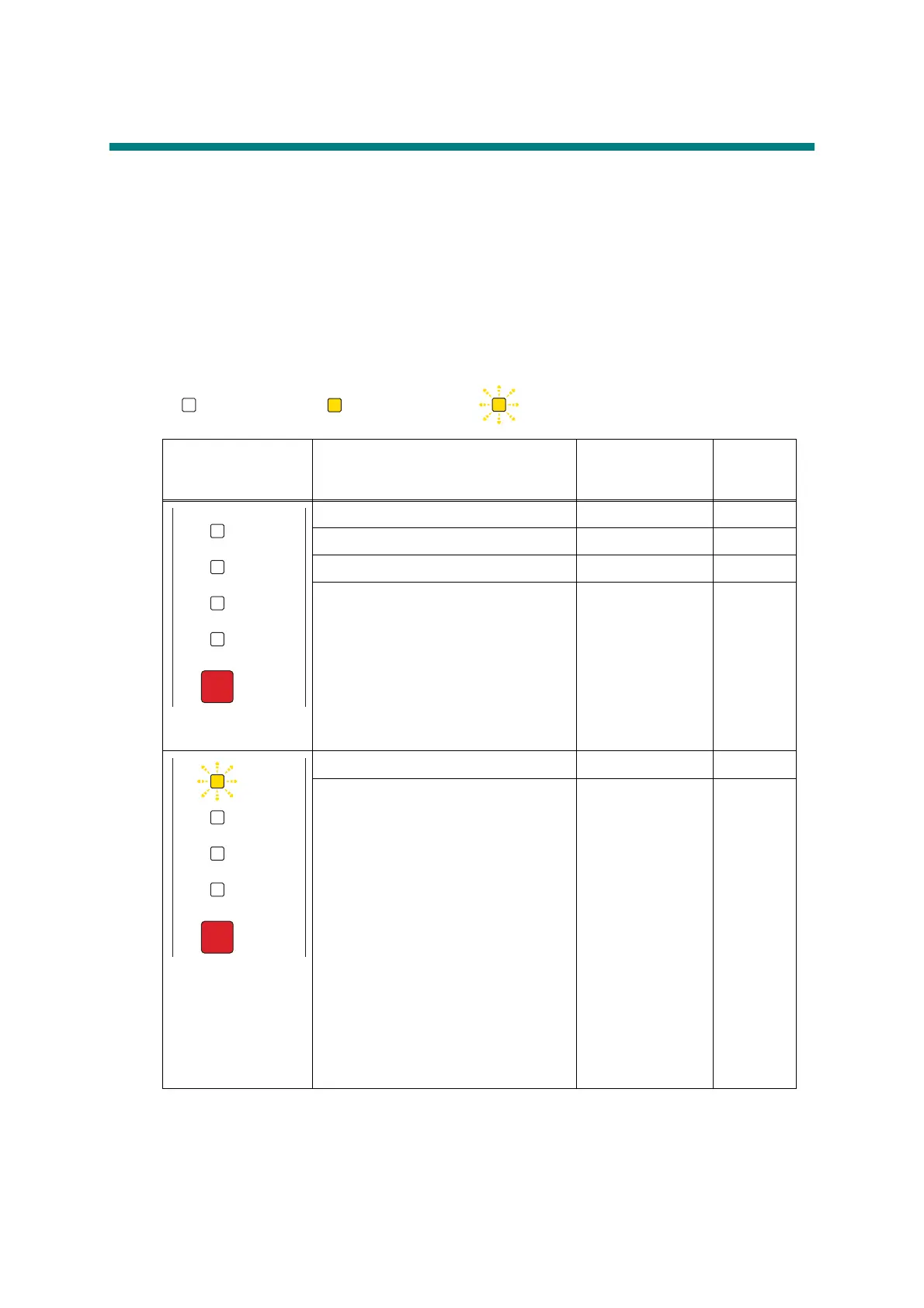

2.1 LED indication (LED model)
2.1.1 LED indication at Operator Calls
Distinguish the contents of message by LED indication in the control panel. See the
reference page and take the corrective action described for each indication to correct it. when
the red Error LED is ON or blinking to indicate it, the machine automatically recovers from
most errors. But some of errors are necessary to reset the machine by holding down the [Go]
button.
LED indication of the following table is that
LED is OFF, LED is ON and LED is blinking.
LED Type of error
Error clearance
by pressing the
[Go] button
Refer to:
Front cover is opened No 3-19
Memory full Yes 3-22
Option tray is installed too much No 3-24
Print overrun Yes 3-23
Fuser cover is opened No 3-20
DX unit is not set Yes 3-19
Back
Cover
Toner
Drum
Paper
Status
Status : Red light ON
Back
Cover
Toner
Drum
Paper
Status
Status : Red light ON
The Back Cover
LED will turn on for
0.5 seconds and
off for 0.5 seconds

Brother HL-5350DN Specifications

General

Color	No
N-up printing	4, 9, 16, 25
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	32 MB
Processor model	NEC VR5500
Maximum internal memory	544 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	54 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 105 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Supported network protocols (IPv4)	IPv4: ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD responder, WebServicesPrint, IPv6: NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMPv6, LLTD responder, WebServicesPrint
Networking features	10/100 Base-TX
Power consumption (active)	675 W
Compatible operating systems	Windows: Vista, 2000 Prof., XP Home Edition, XP Prof. Edition (32 & 62 bits), Server 2003 (32 & 64 bits), Server 2008. MacIntosh: Mac OS X 10.3.9 + Linux
Power consumption (standby)	75 W
Power consumption (PowerSave)	6 W
Package weight	11500 g

Weight and Dimensions

Dimensions (WxDxH)	371 x 384 x 246 mm
