Brother HL-5350DN

5-63
Confidential

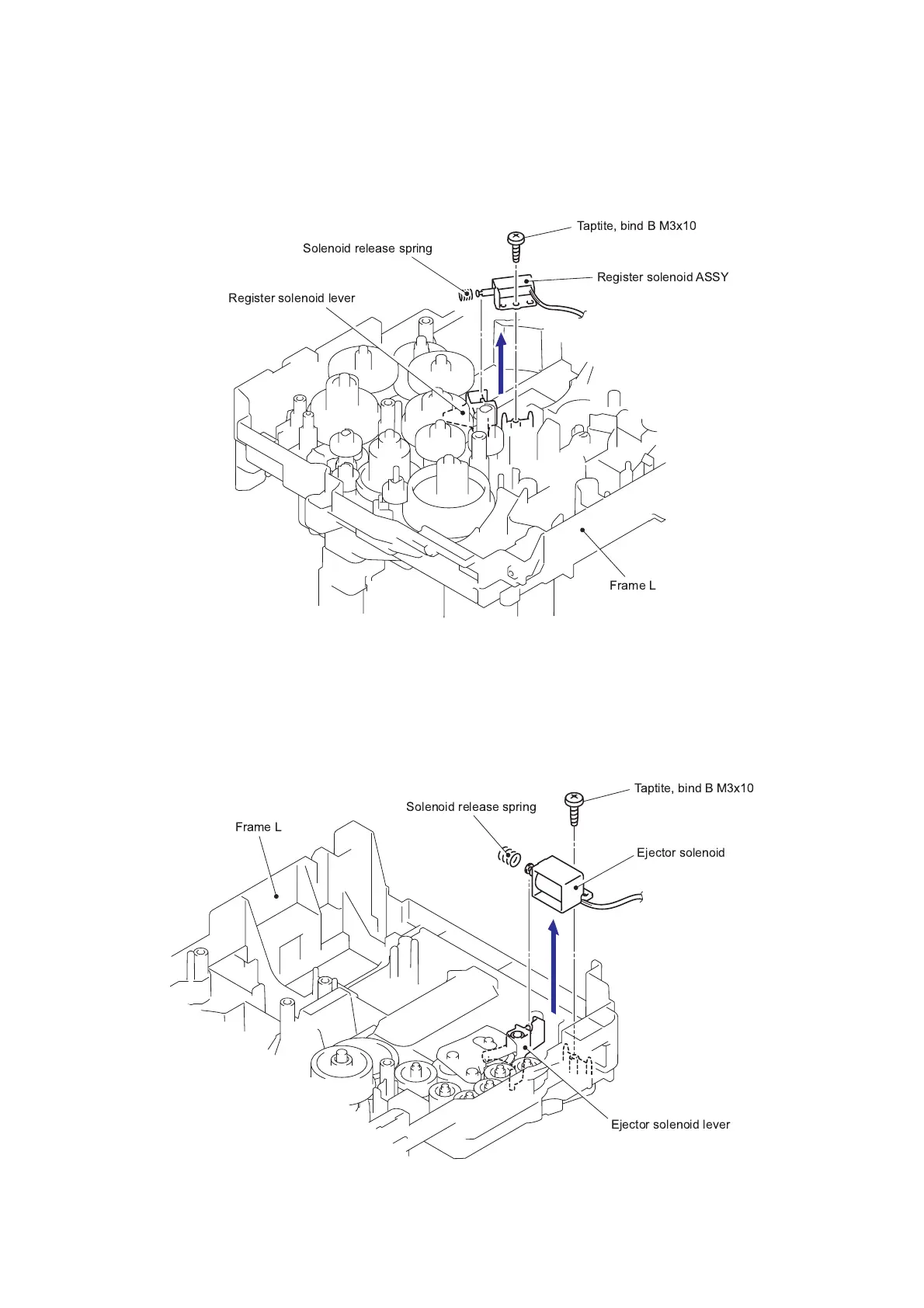

8.20 Register Solenoid ASSY
(1) Remove the bind B M3x10 Taptite screw.
(2) Remove the Register solenoid ASSY and the Solenoid release spring.
Fig. 5-79
8.21 Ejector Solenoid ASSY
(1) Remove the bind B M3x10 Taptite screw.
(2) Remove the Ejector solenoid and the Solenoid release spring.
Fig. 5-80
  
   
  
 
  
   
 
  
  
 
