8.25 Filter

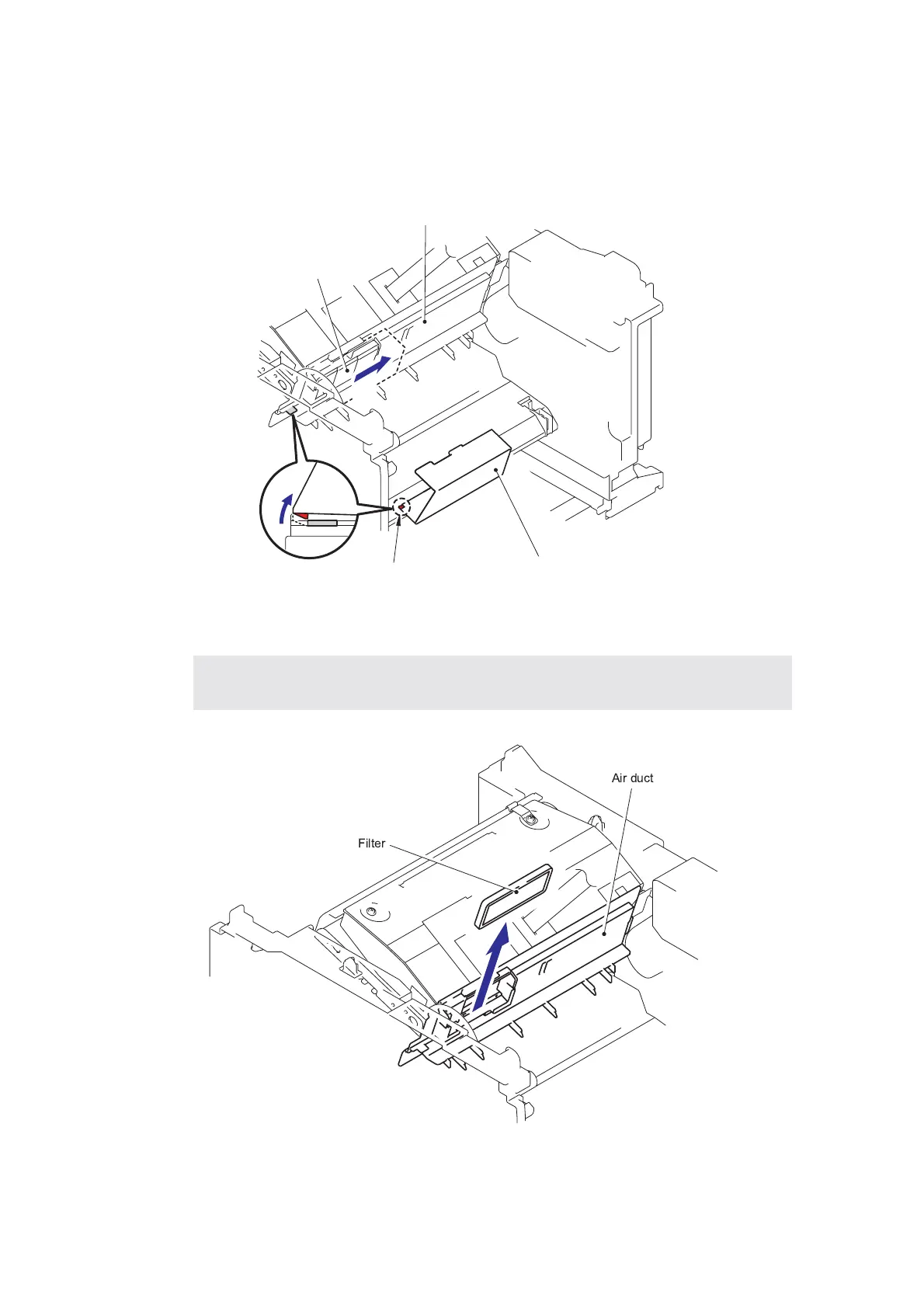

(1) Slide the Sub duct to the direction of 1b while pressing the Hook to the direction of 1a
and remove the Sub duct from the Air duct.
Fig. 5-88
(2) Remove the Filter from the Air duct.
Fig. 5-89
Note:
• The filter is dirt. Be careful when disassembling or assembling it.
1a
1b
Air duct
Filter
Hook
Sub duct
<Back side>
Air duct
Filter
