8.11.4 LCD Holder ASSY

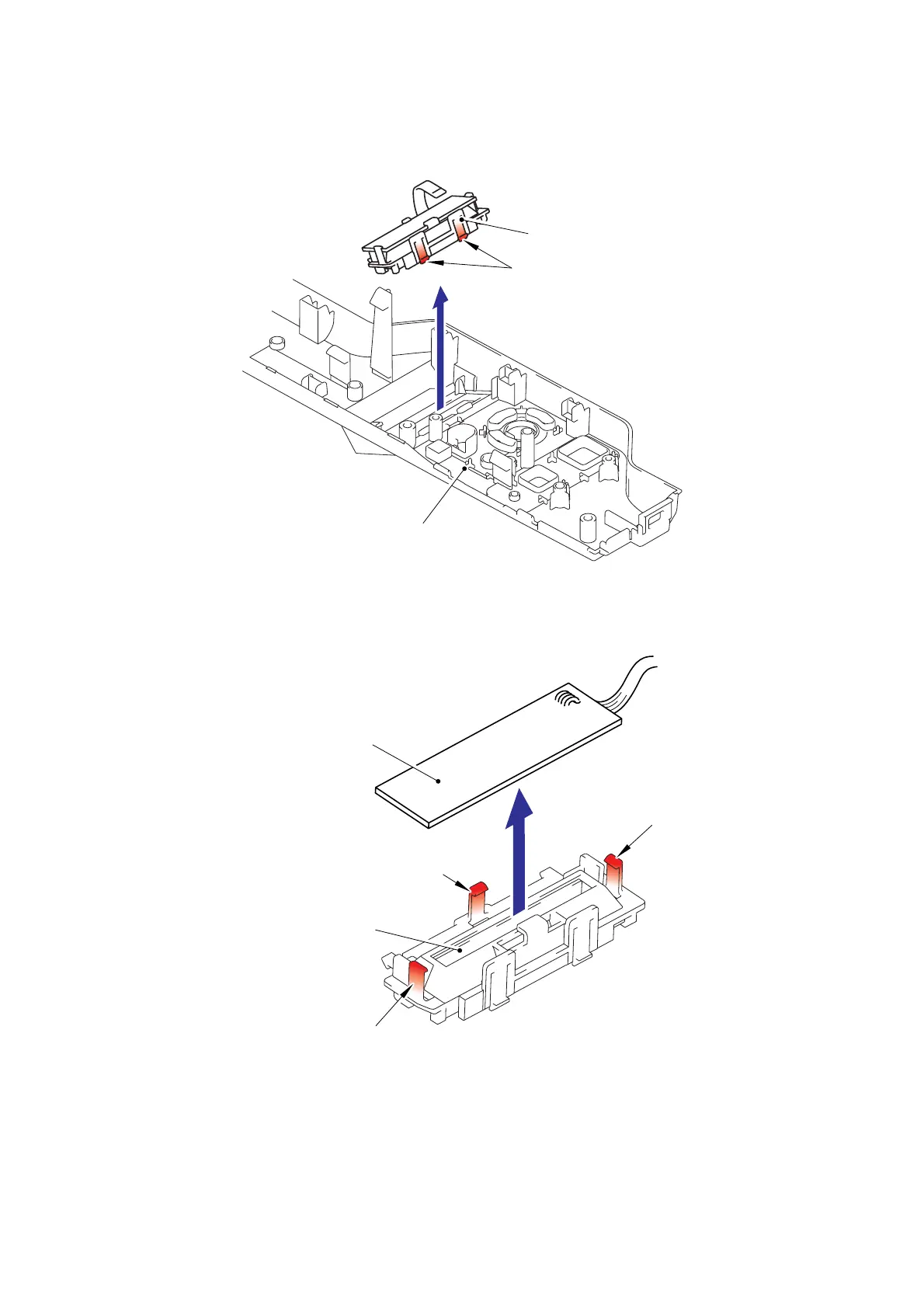

(1) Release the Hook, and remove the LCD holder from the Top cover printed ASSY.
Fig. 5-56
(2) Release the Hook, and remove the Back light PCB ASSY from the LCD holder.
Fig. 5-57
LCD holder
Top cover printed ASSY
Hook
Back light PCB ASSY
LCD holder
Hook
Hook
Hook
