CAUTION:

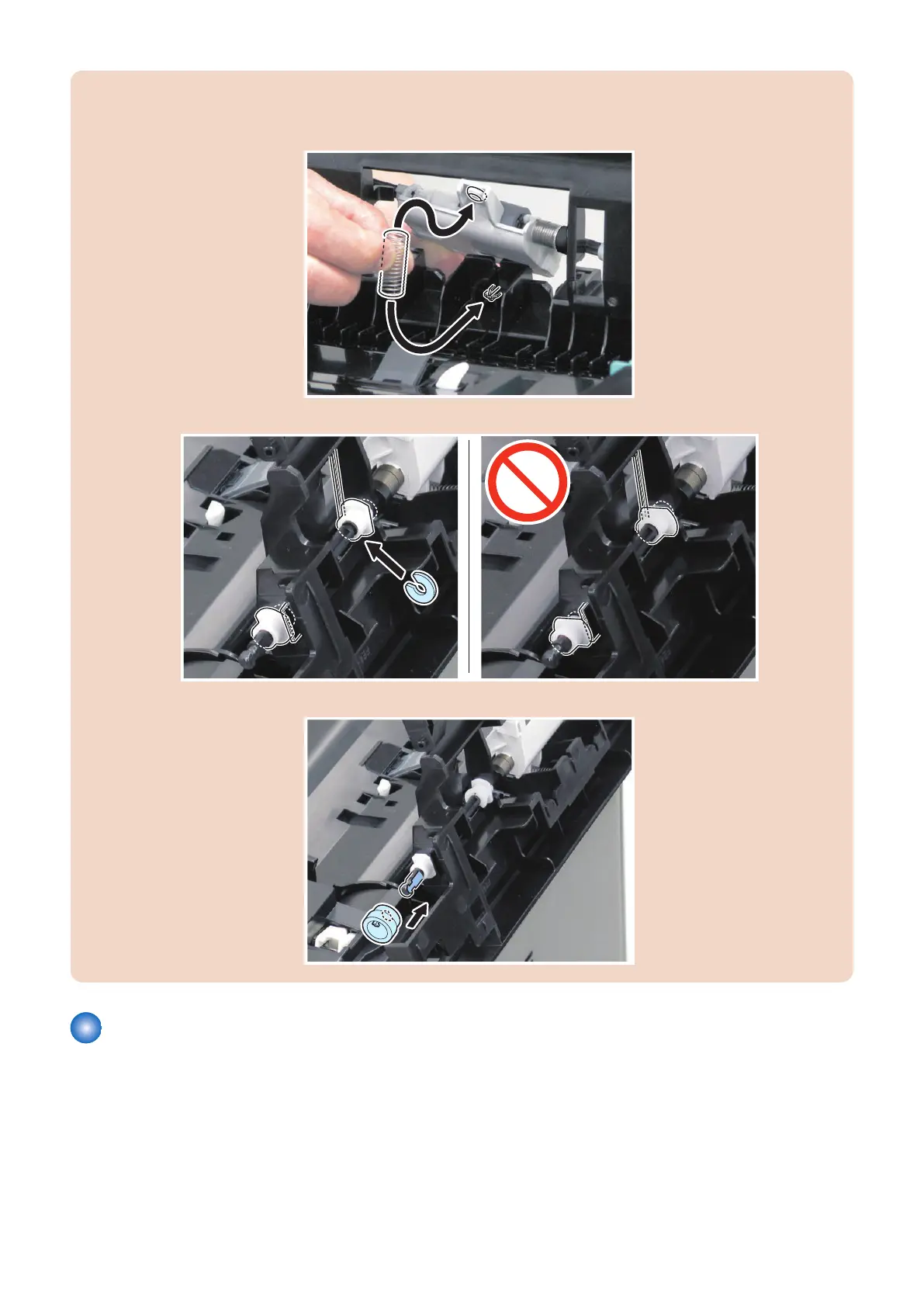

Points to note when assembling the DADF Pickup Roller Unit
• Be sure to fit the spring to the boss.
• Be sure to pay attention to the direction of the 2 bushings.
• Be sure to align the gear and the D-cut of the DADF Pickup Roller shaft.
Removing the DADF Pickup Roller
■ Preparation
1. “Removing the DADF Pickup Roller Unit” on page 106
4. Parts Replacement and Cleaning
109
