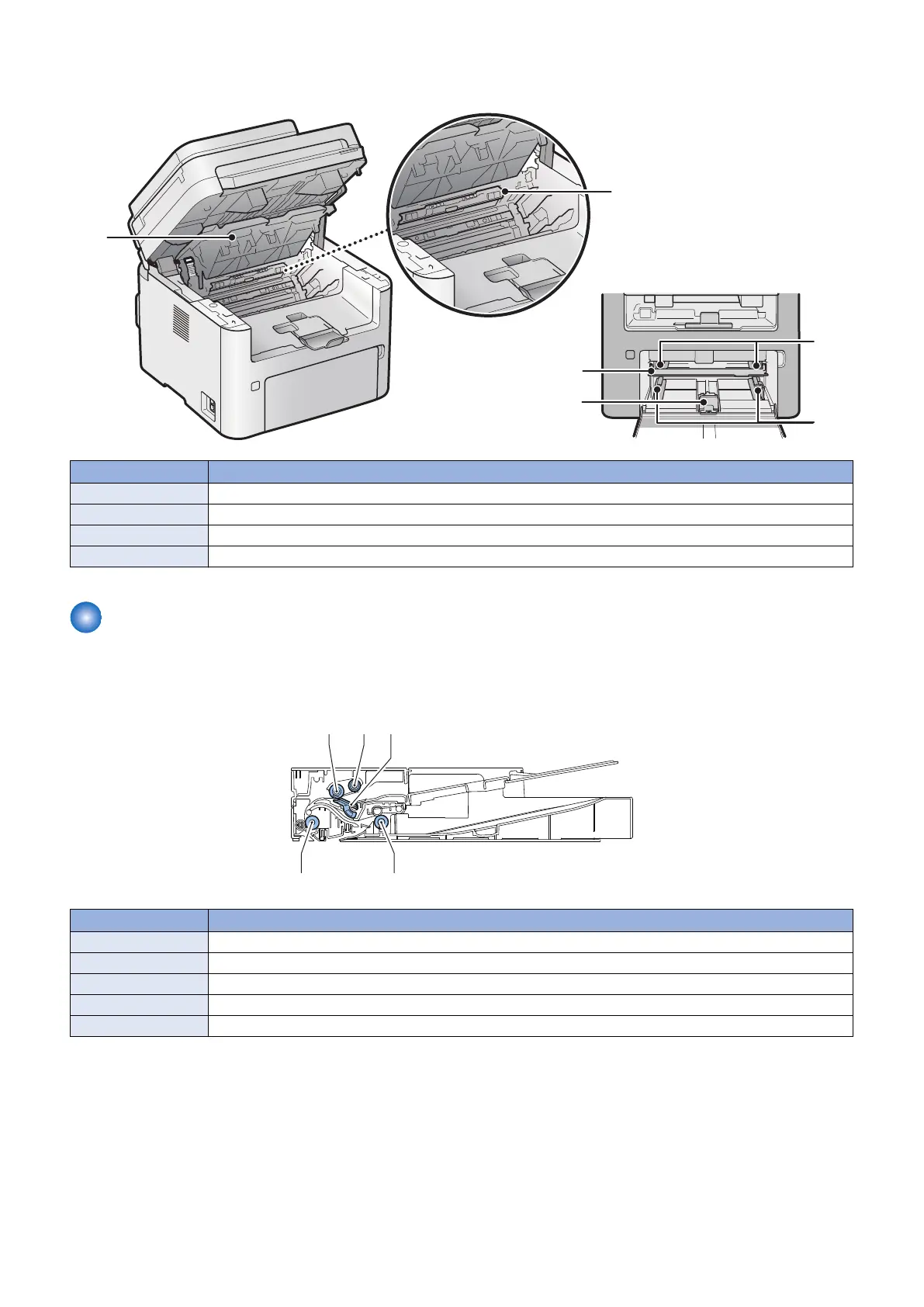

Canon imageCLASS MF264dw - Cross Section View

■ Inside of the host machine
3
[1]
[2]
[3]
[4]
[4]
[4]
No. Name
[1] Toner Cover
[2] Delivery Guide
[3] Multi-purpose Tray
[4] Paper Guide
Cross Section View
■ DADF
[4]
[5]
[3][1] [2]
No. Name
[1] Separation Roller
[2] Pickup Roller
[3] Separation Pad
[4] Delivery Roller
[5] Feed Roller
1. Product Overview
17
