NOTE:

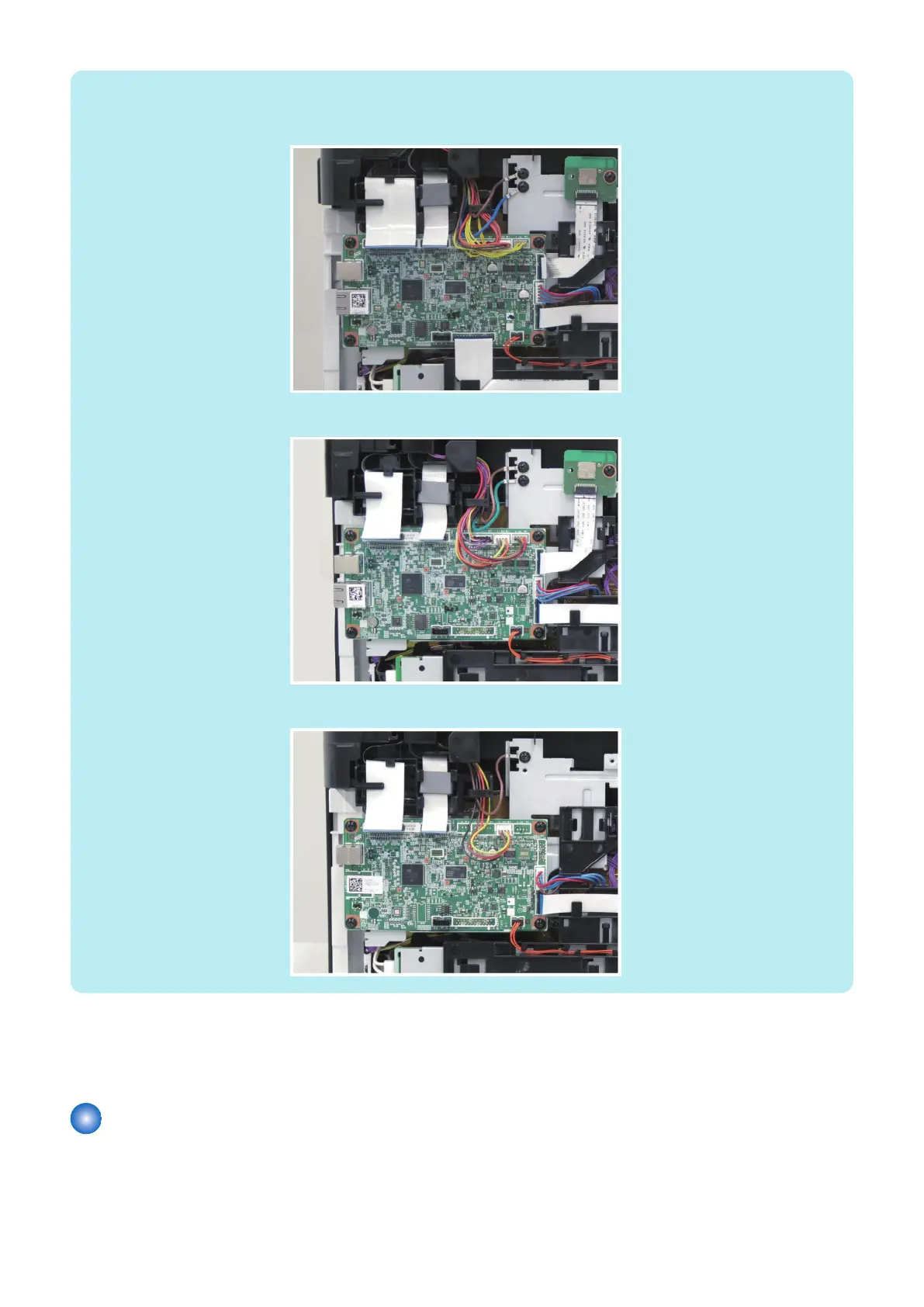

The completed assembly of the Main Controller PCB is shown below.
DADF Model
* SADF Model: The machine configuration differs between with and without the FAX and/or Wireless LAN.
Copyboard Model
3. Actions after Parts Replacement
“Adjustment at Parts Replacement” on page 221
Removing the Low-Voltage Power Supply Unit
■ Preparation
1. “Removing the Cartridge” on page 77
