Canon imageCLASS MF264dw - Removing the Duplex Frame Unit

■ Procedure
1.
NOTE:

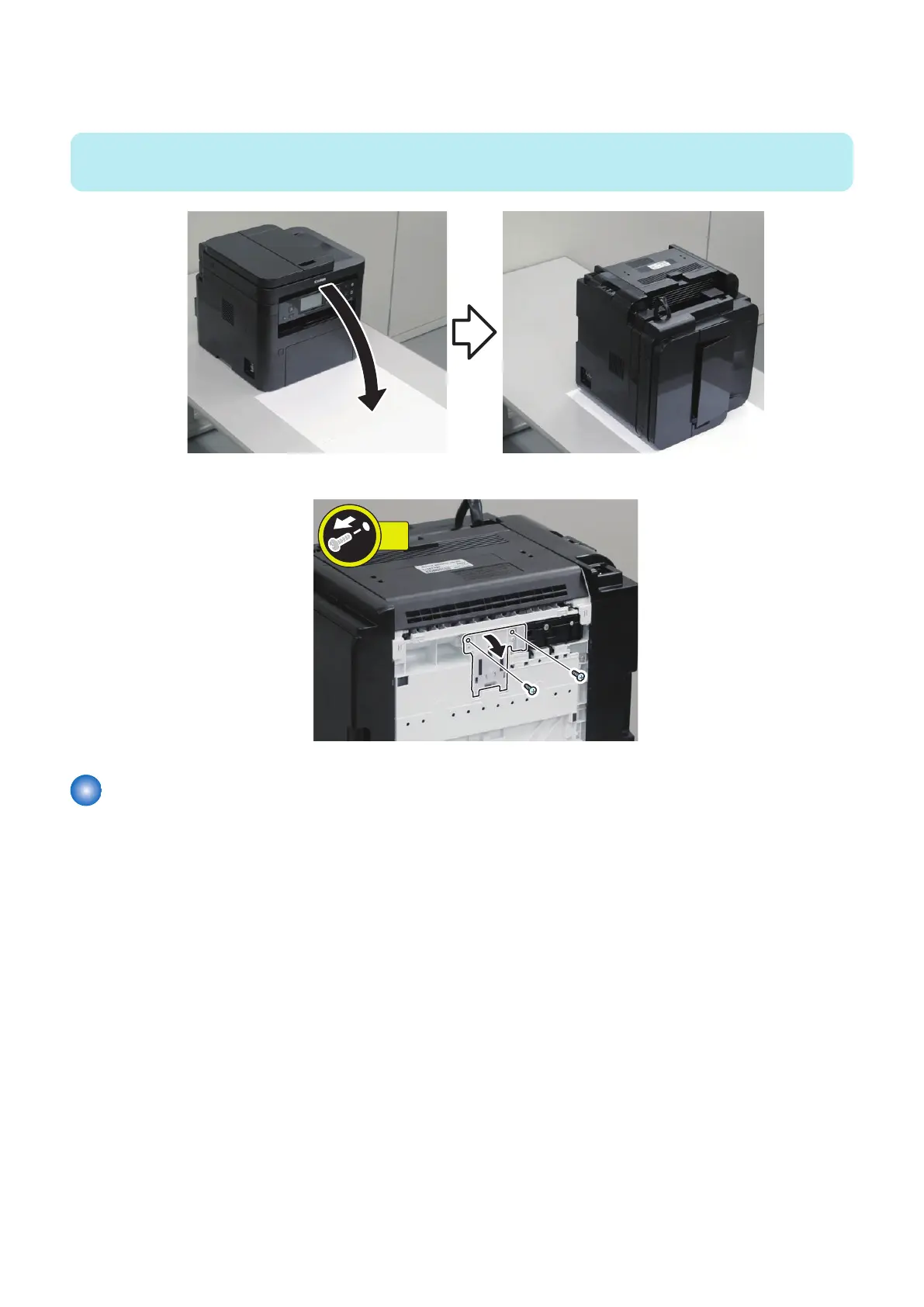

Be sure to put a piece of paper [2] and place the Control Panel Unit [1] on it carefully so as not to damage it.
2.
2x
Removing the Duplex Frame Unit
■ Preparation
1. “Removing the Cartridge” on page 77
2. “Removing the Right Cover” on page 78
3. “ Removing the Left Cover” on page 80
4. Depending on the model, perform one of the following operation.
• “Removing the DADF Unit + Reader Unit” on page 93
• “Removing the SADF Unit + Reader Unit” on page 126
• “Removing the Copyboard Cover + Reader Unit” on page 157
5. “ Removing the Toner Cover” on page 86
6. “ Removing the Upper Cover” on page 91
7. “Removing the Duplex Door” on page 90
4. Parts Replacement and Cleaning
