Canon imageCLASS MF264dw - Removing the DADF Motor

8.

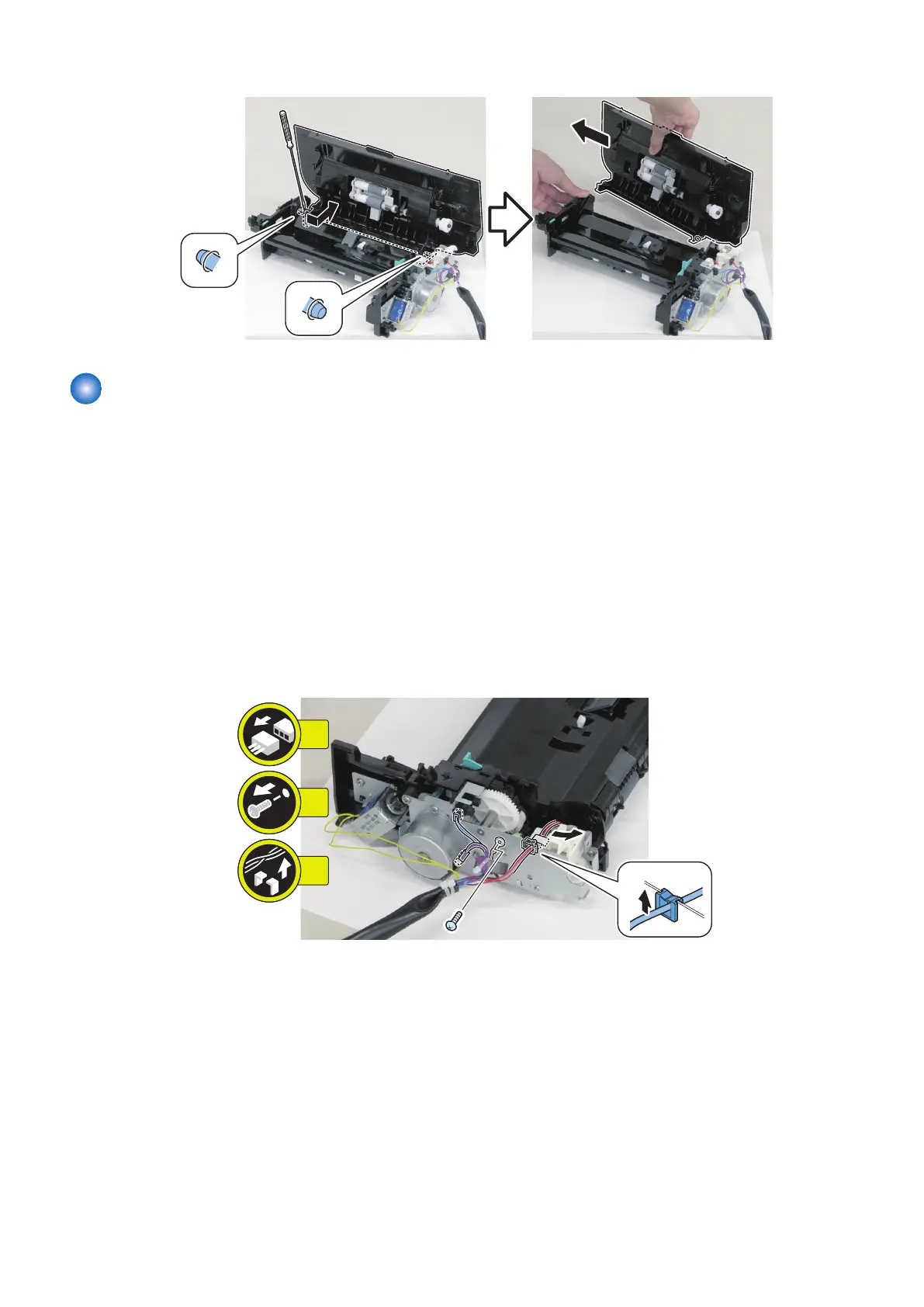

Removing the DADF Motor
■ Preparation
1. “Removing the Cartridge” on page 77
2. “ Removing the Left Cover” on page 80
3. “Removing the DADF Unit + Reader Unit” on page 93
4. “Separating the DADF Unit + Reader Unit” on page 96
5. “Removing the DADF Pickup Unit” on page 99
■ Procedure
1.
1x
2x
2x
4. Parts Replacement and Cleaning
103
