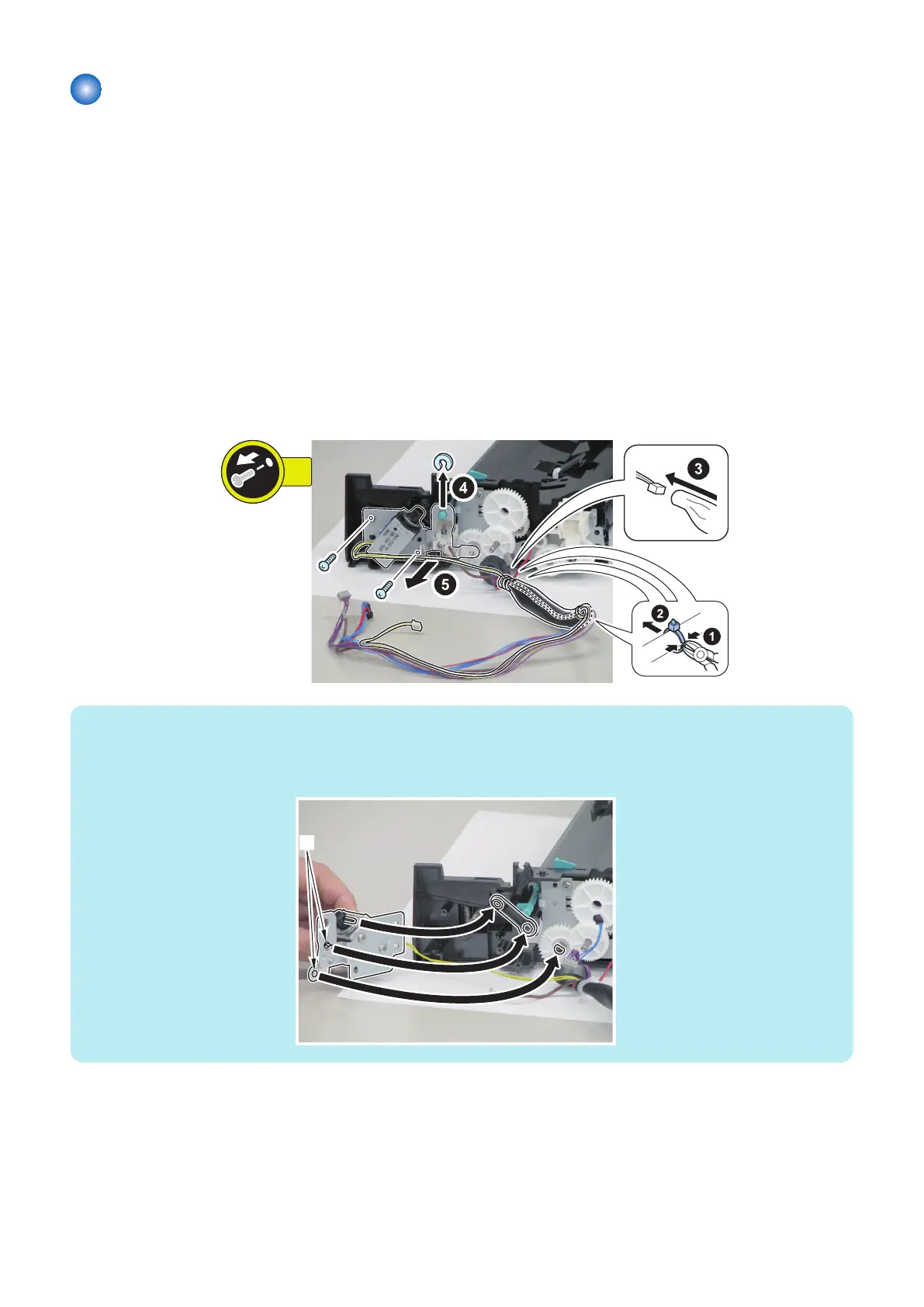

Removing the DADF Solenoid
■ Preparation
1. “Removing the Cartridge” on page 77
2. “ Removing the Left Cover” on page 80
3. “Removing the DADF Unit + Reader Unit” on page 93
4. “Separating the DADF Unit + Reader Unit” on page 96
5. “Removing the DADF Pickup Unit” on page 99
6. “Removing the DADF Motor” on page 103
■ Procedure
1.
NOTE:
How to assemble the DADF Solenoid
• Pass the Solenoid Shaft through the Solenoid Arm hole.
• Ensure that the 2 DADF Pickup Unit Shafts and the 2 DADF Solenoid Unit contact points [A] are in contact.
4. Parts Replacement and Cleaning
105
