CAUTION:

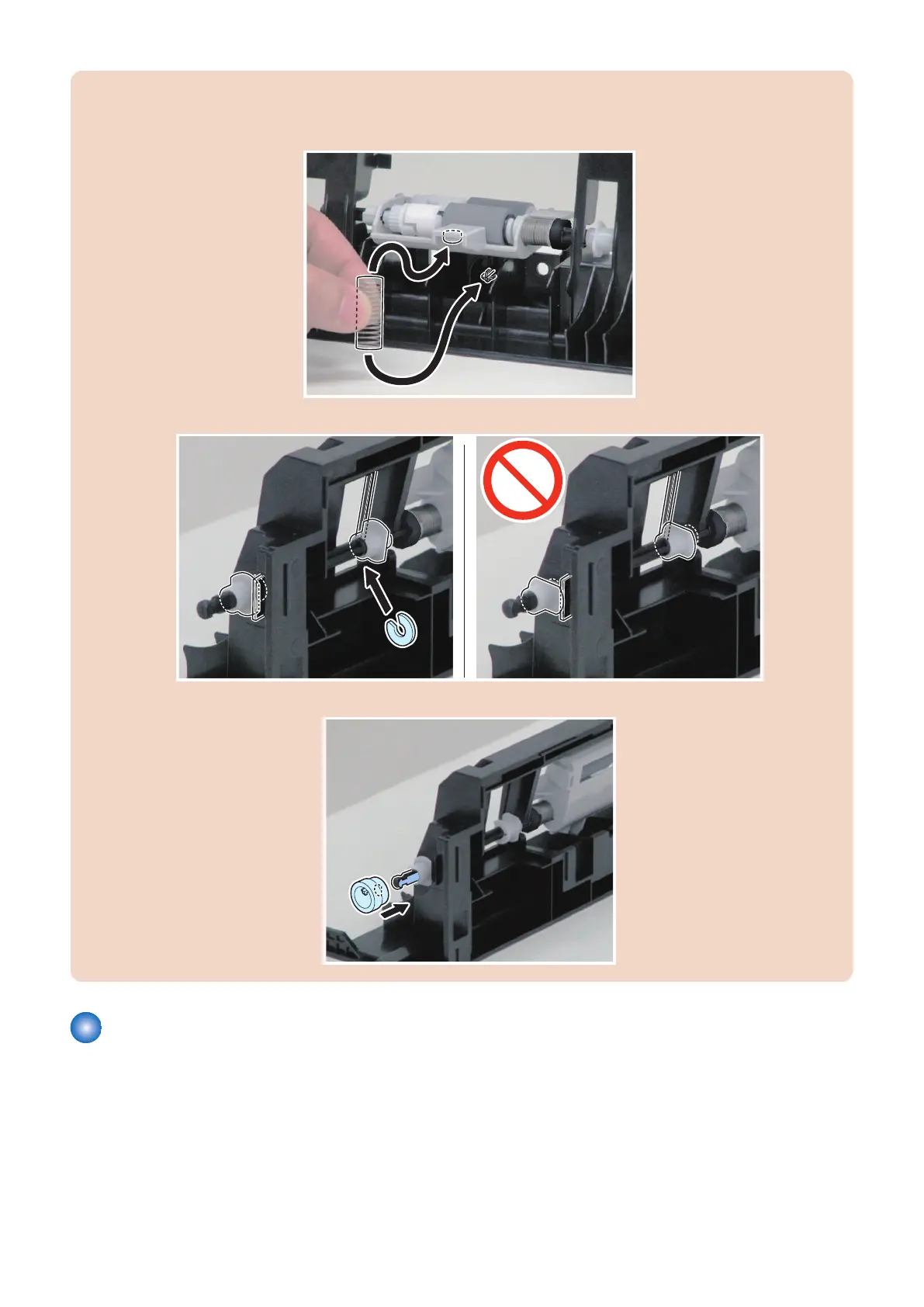

Points to note when assembling the SADF Pickup Roller Unit
• Be sure to fit the spring to the boss.
• Be sure to pay attention to the direction of the 2 bushings.
• Align the gear and the D-cut of the SADF Pickup Roller Shaft.
Removing the SADF Pickup Roller
■ Preparation
1. “Removing the Cartridge” on page 77
2. “ Removing the Left Cover” on page 80
3. “Removing the SADF Unit + Reader Unit” on page 126
4. “Separating the SADF Unit + Reader Unit” on page 129
4. Parts Replacement and Cleaning
