4. “ Removing the Left Cover” on page 80
5. Depending on the model, perform one of the following operation.
• “Removing the DADF Unit + Reader Unit” on page 93
• “Removing the SADF Unit + Reader Unit” on page 126
• “Removing the Copyboard Cover + Reader Unit” on page 157
6. “ Removing the Toner Cover” on page 86
7. “ Removing the Upper Cover” on page 91
8. “Removing the Duplex Door” on page 90
9. “ Removing the Duplex Frame Unit” on page 212

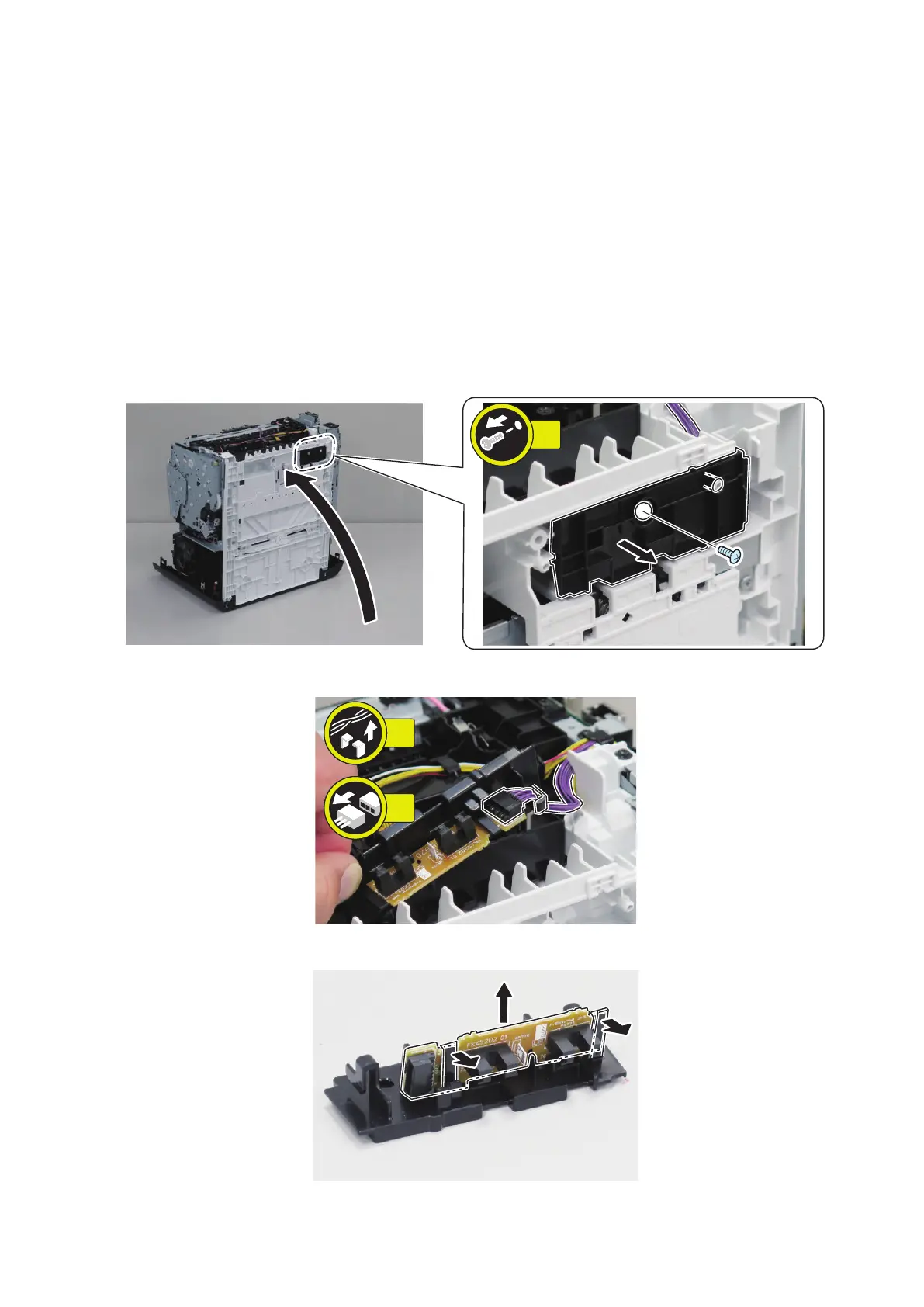

■ Procedure
1.
2.
3.
4. Parts Replacement and Cleaning
186
