CAUTION:

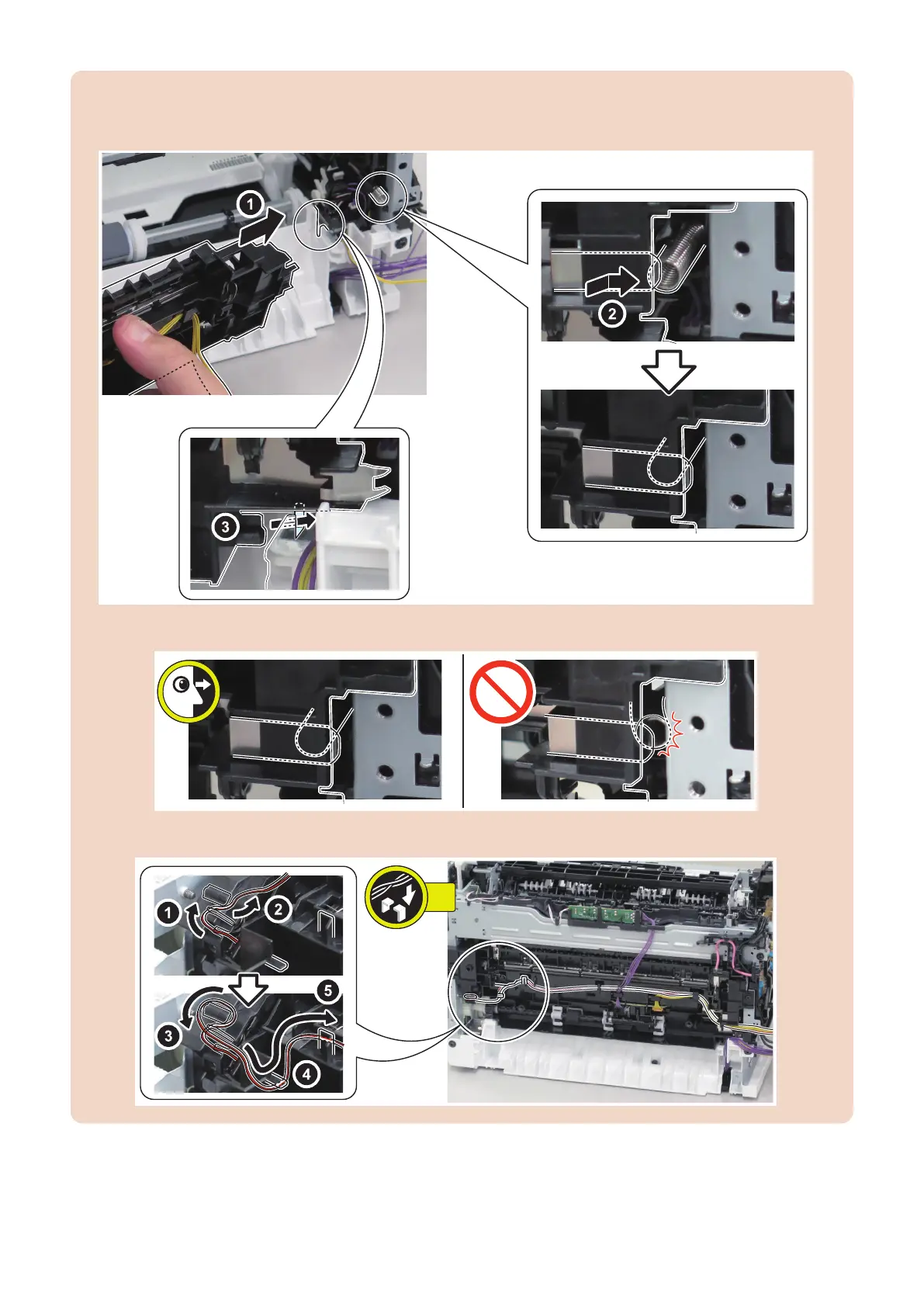

Points to Note When Installing the Transfer Unit
• Insert the shaft into the Shaft Support by aligning the Contact Spring with the Grounding Plate.
• Be careful not to let the Contact Spring come off from the Grounding Plate.
• The following shows the correct procedure for routing the TAG harness.
