Symbol Name Symbol Name
PS1 Paper Sensor PS4 Fixing Delivery Sensor
PS2 Pickup Paper Width Sensor PS5 Fixing Paper Width Sensor
PS3 TOP Sensor PS10 Multi-purpose Tray Sensor

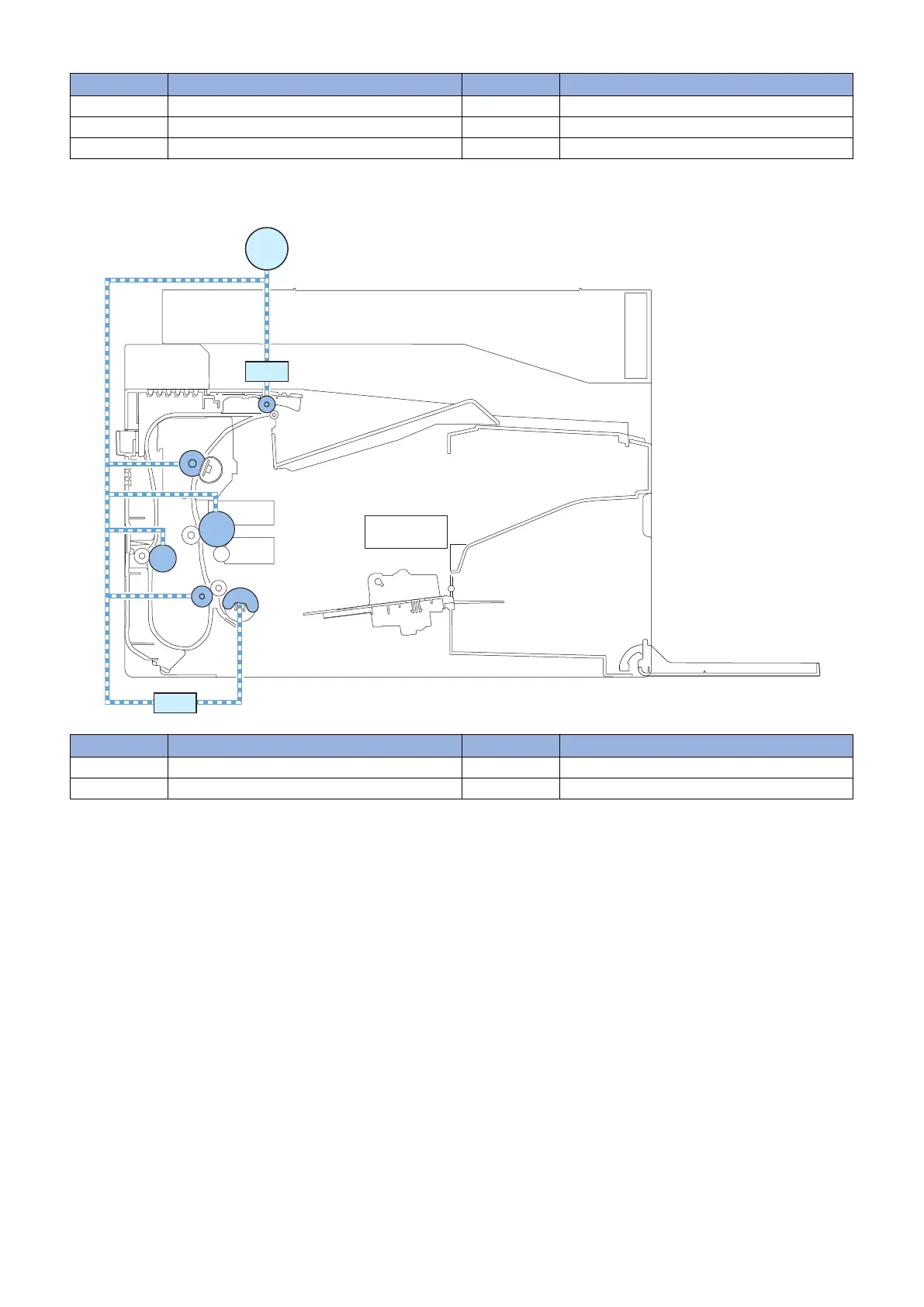

■ Diagram of Load Drives
M2
SL1
SL3
Symbol Name Symbol Name
SL1 Pickup Solenoid M2 Main Motor
SL3 Duplex Reverse Solenoid
2. Technology
52
