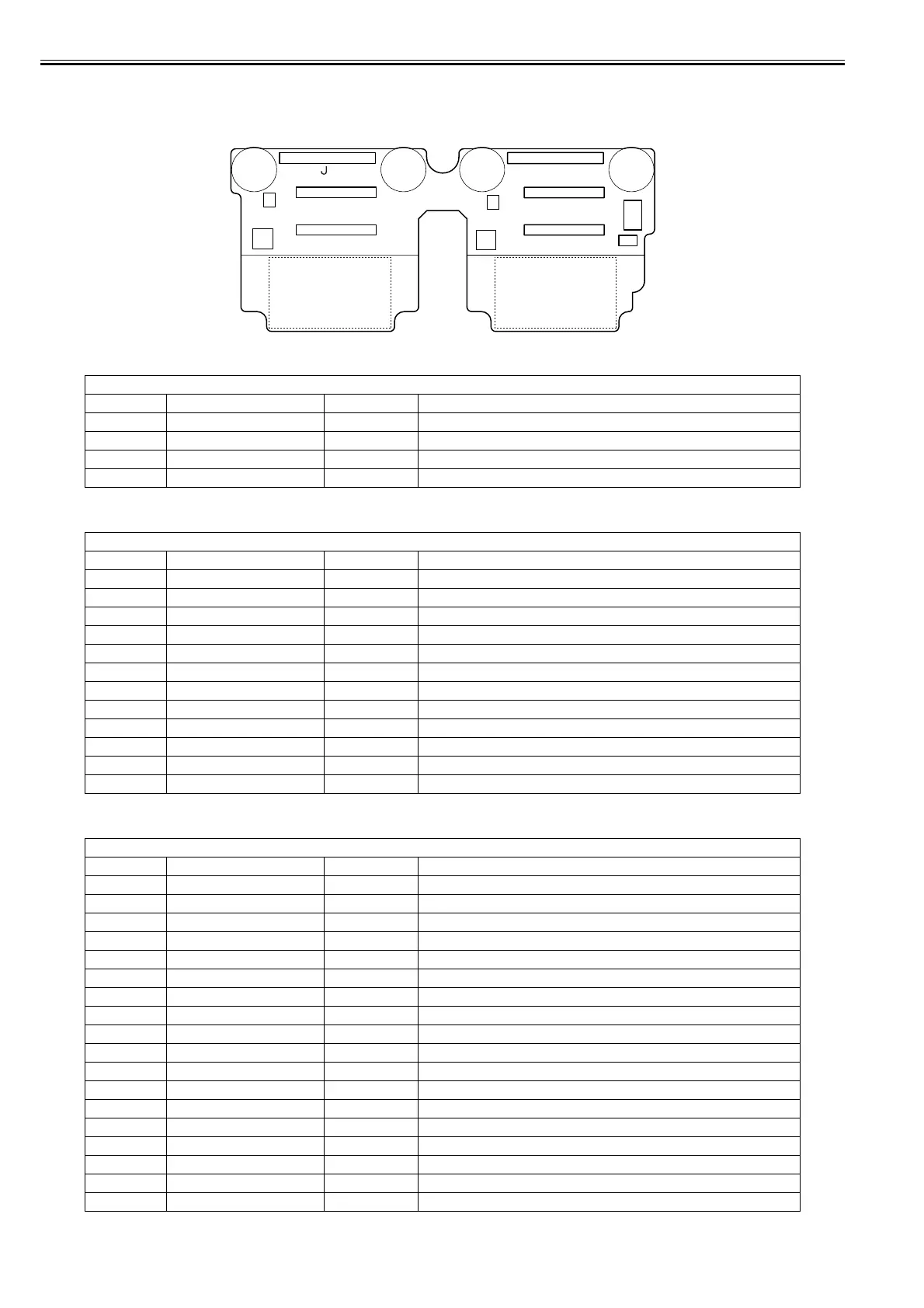

Canon iPF6100 - Carriage PCB

Chapter 6
6-68
6.2.6 Carriage PCB
0016-8453
iPF6100 / iPF6200 / iPF6000S / iPF6300 / iPF6350 / iPF6300S
F-6-6
T-6-112
T-6-113
T-6-114
J3
Pin Number Signal name IN/OUT Function
1 ENCODER_B IN Linear encoder detection signal B
2 GND - GND
3 ENCODER_A IN Linear encoder detection signal A
4 H1_5V OUT Power supply (+5V)
J5
Pin Number Signal name IN/OUT Function
1 HEAD_3V OUT Power supply (+3V)
2 EEPROM_SCL OUT EEPROM control signal (clock)
3 EEPROM_SDA IN/OUT EEPROM control signal (data)
4 GND - GND
5 PWLED1 OUT Multi sensor LED1 drive signal
6 PWLED2 OUT Multi sensor LED2 drive signal
7 PWLED3 OUT Multi sensor LED3 drive signal
8 PWLED4 OUT Multi sensor LED4 drive signal
9 VH OUT Power supply (+21.5V)
10 OUT1 IN Multi sensor input signal 1
11 OUT2 IN Multi sensor input signal 2
12 H1-5V OUT Power supply (+5V)
J11 (Connect to Main controller PCB J3401)
Pin Number Signal name IN/OUT Function
1 GND - GND
2 GND - GND
3 GND - GND
4 GND - GND
5 GND - GND
6 GND - GND
7 GND - GND
8 VH IN Power supply (+21.5V)
9 VH IN Power supply (+21.5V)
10 VH IN Power supply (+21.5V)
11 VH IN Power supply (+21.5V)
12 VH IN Power supply (+21.5V)
13 VH IN Power supply (+21.5V)
14 VH IN Power supply (+21.5V)
15 VH IN Power supply (+21.5V)
16 VH IN Power supply (+21.5V)
17 VH IN Power supply (+21.5V)
18 VH IN Power supply (+21.5V)
11
J21
J12
J22
J13
J23
J5
J14
J24
J3
11 J21
J12 J22
J13 J23
J5
J14 J24
J3
