Canon iPF6100 - Main Controller PCB

Chapter 6
6-57

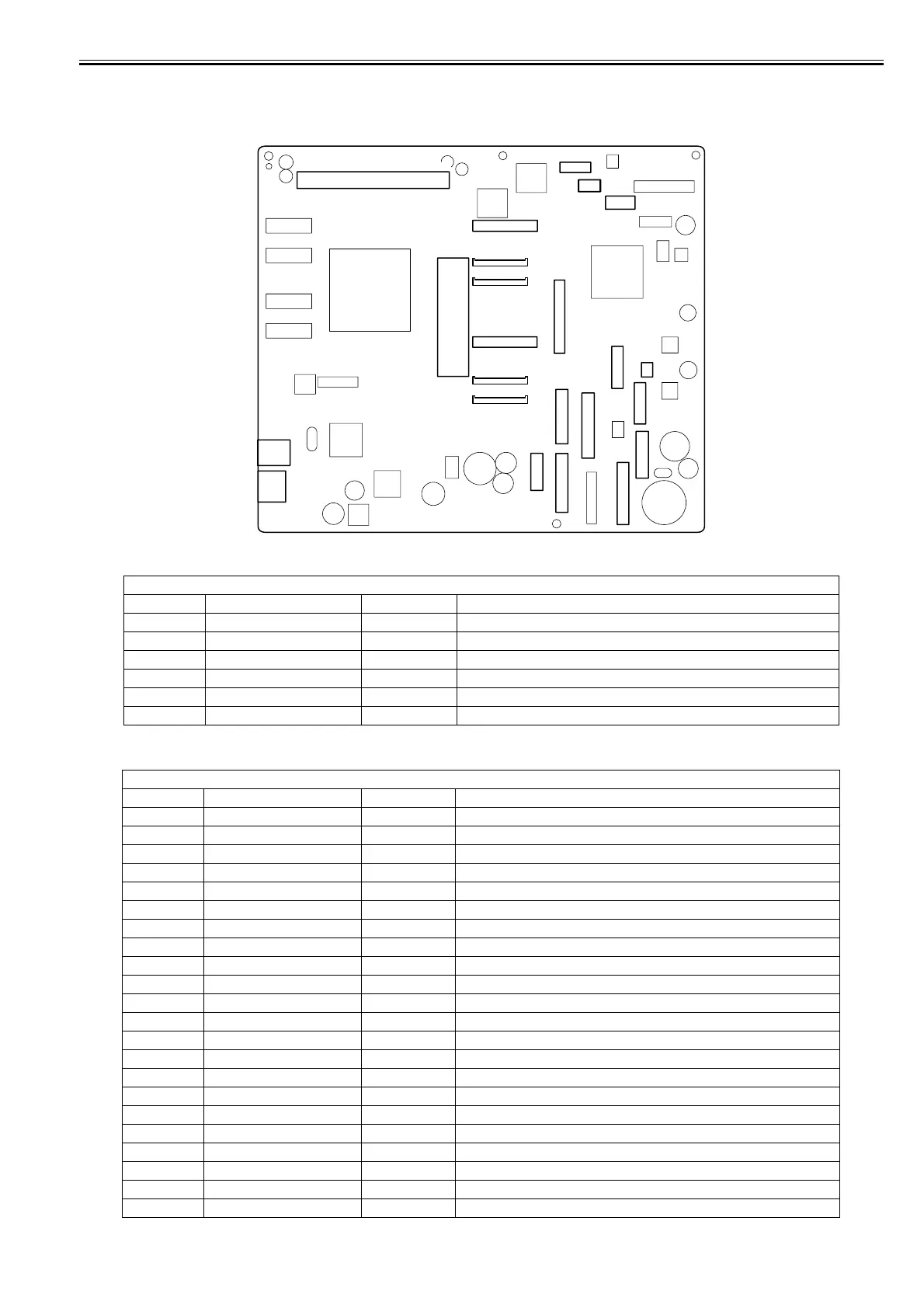

6.2.5 Main controller PCB
0026-6545
iPF6300S
F-6-5
T-6-89
T-6-90
J1001 (USB)
Pin Number Signal name IN/OUT Function
1 VBUS IN USB VBUS (+5V)
2 D- IN/OUT USB data (-)
3 D+ IN/OUT USB data (+)
4 GND - USB GND
5 GND - GND (Connector shell)
6 GND - GND (Connector shell)
J1101 (Connect to HDD expansion PCB)
Pin Number Signal name IN/OUT Function
1GND - GND
2GND - GND
3GND - GND
4 +3.3V OUT Power supply (+3.3V)
5 +3.3V OUT Power supply (+3.3V)
6 +3.3V OUT Power supply (+3.3V)
7 +3.3V OUT Power supply (+3.3V)
8 +3.3V OUT Power supply (+3.3V)
9 +3.3V OUT Power supply (+3.3V)
10 N.C. - N.C.
11 GND - GND
12 PME# IN Power management enable signal
13 INTA# IN Interrupt signal
14 GND - GND
15 RST# OUT PCI reset signal
16 CLK OUT PCI clock signal
17 GNT# OUT Grant signal
18 GND - GND
19 REQ# IN Request signal
20 AD31 IN/OUT Address and data signal 31
21 AD30 IN/OUT Address and data signal 30
22 AD29 IN/OUT Address and data signal 29
J401
J2601
J1101
J3701
J3801
J3401
J3501
J3601
J1201
J1001
J2703
J3203
J3301
J3211
J2801
J3911
J2511
J3011
J2512
