Canon iPF6100 - Roll Feed Unit Cover (Inside)

Chapter 1
1-44
1.5.9 Roll Feed Unit Cover (Inside)
0016-8154
iPF6100 / iPF6200 / iPF6000S

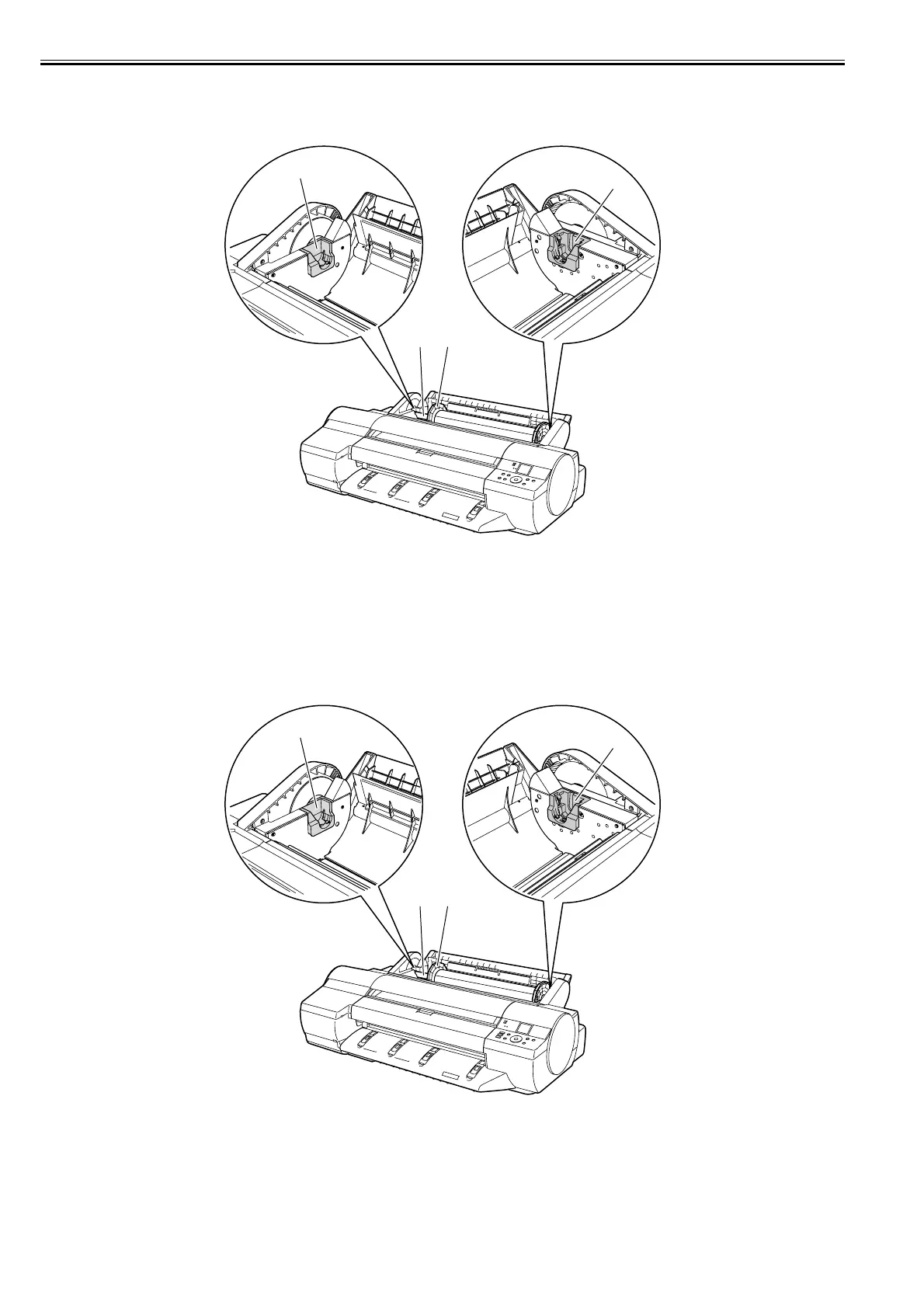

F-1-43
[1] Roller holder
Set roll media on this holder.
[2] Holder stopper
Use to secure roll media to the roller holder.
[3] Roller holder slot
Set the roller holder in this guide groove.
1.5.10 Roll Feed Unit Cover (Inside)
0024-8334
iPF6300 / iPF6350 / iPF6300S
F-1-44
[1] Roller holder
Set roll media on this holder.
[2] Holder stopper
Use to secure roll media to the roller holder.
[3] Roller holder slot
Set the roller holder in this guide groove.
[3]
[3]
[2] [1]
[3]
[3]
[2] [1]
