Chapter 1
1-40
1.5.5 Top Cover (Inside)
0016-8151
iPF6100 / iPF6200 / iPF6000S
F-1-39
[1] Carriage shaft
The carriage travels in this area.
[2] Carriage
Moves the printheads.
[3] Borderless printing ink receiving channel
Receives inks overflowing the edges of the paper during borderless printing.
[4] Platen
Paper and the printheads travel over the platen to execute printing. Suction holes on the surface prevent the paper from lifting.
[5] Pinch roller
A vital part needed to feed paper.
[6] Cleaner brush
Use this brush to wipe off chad over the plant when cleaning the inside of the top cover.

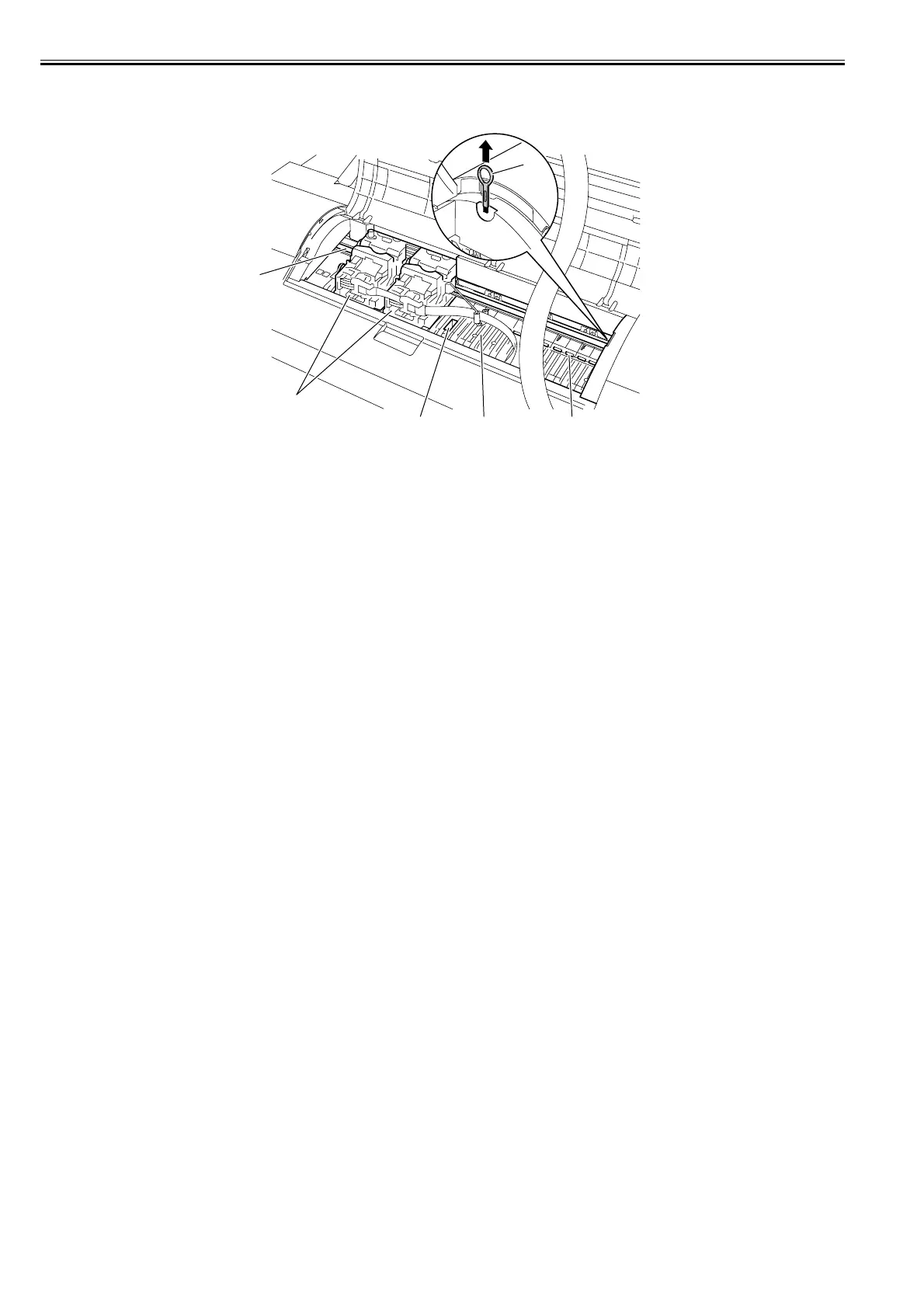

1.5.6 Top Cover (Inside)
0024-8353
iPF6300 / iPF6350 / iPF6300S
[6]
[5][4][3]
[1]
[2]
