2.3.3.2 Paper Path
2.3.3.2.1 Structure of Roll Media Pick-up Unit
0016-8203
iPF6100 / iPF6200 / iPF6000S / iPF6300 / iPF6350 / iPF6300S
When the roll media sensor detects media loaded with the printer powered, the roll media pick-up roller touches the media to rotate the roll media feed roller, thus
feeding the roll media onto the platen. Roll media feeding is controlled by the roll motor and roll feed unit PCB.
The roll media pick-up roller is moved up and down by the cam, and the cam movement is detected by the roll media cam sensor.
When the printer is turned on with roll media loaded, the roll media pick-up operation starts automatically.

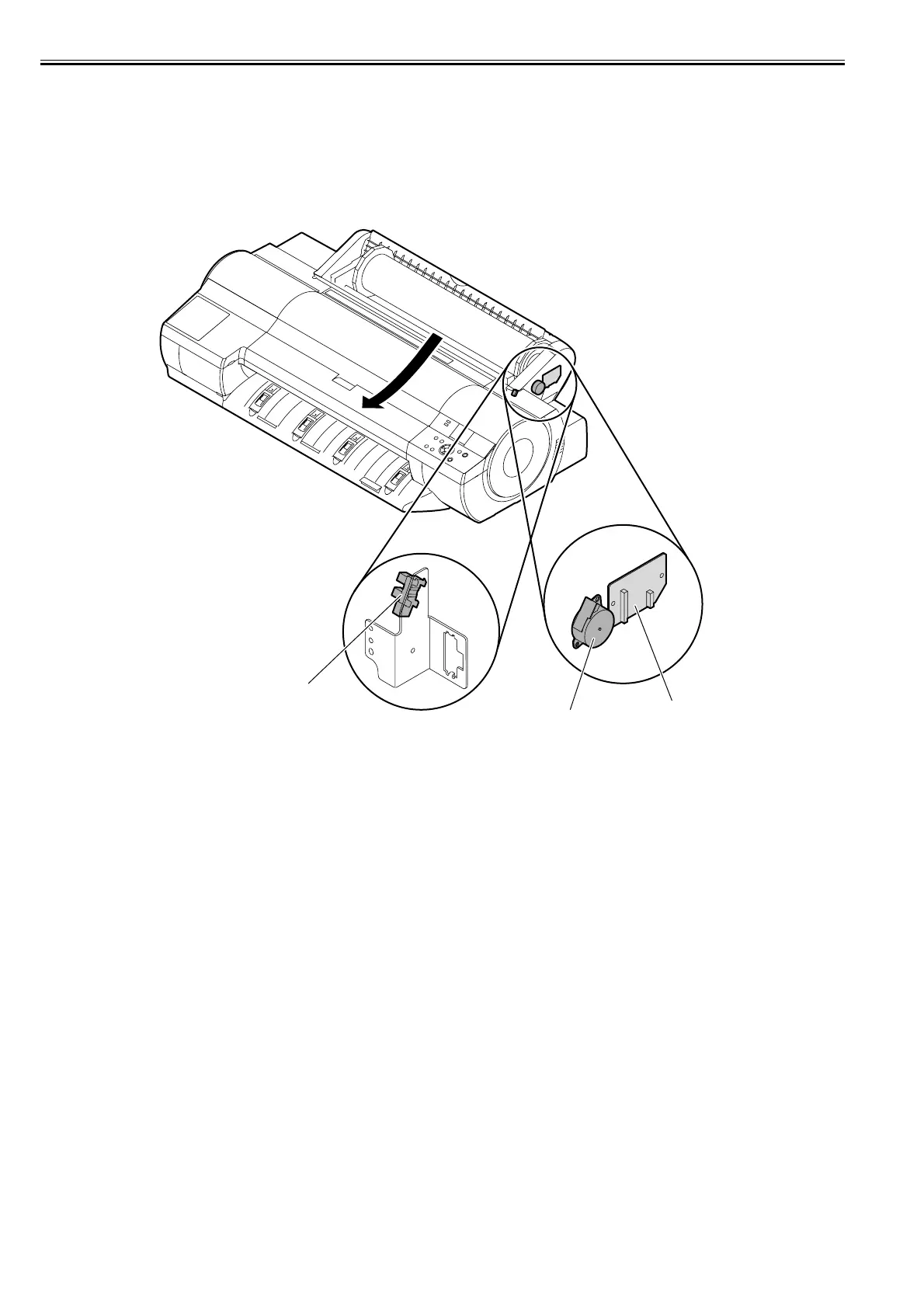

F-2-37
Roll motor
Roll feed unit PCB
Roll cam sensor
