Canon iPF6100 - Location of Connectors and Pin Arrangement; Main Controller PCB

Chapter 6
6-12
The battery capacity is low.
<Probable fault location>
Lithium battery or main controller PCB.
<Countermeasure>
1. Start up the printer in the service mode, and then turn off the power.
2. Replace the lithium battery.
3. Replace the main controller.
6.2 Location of Connectors and Pin Arrangement

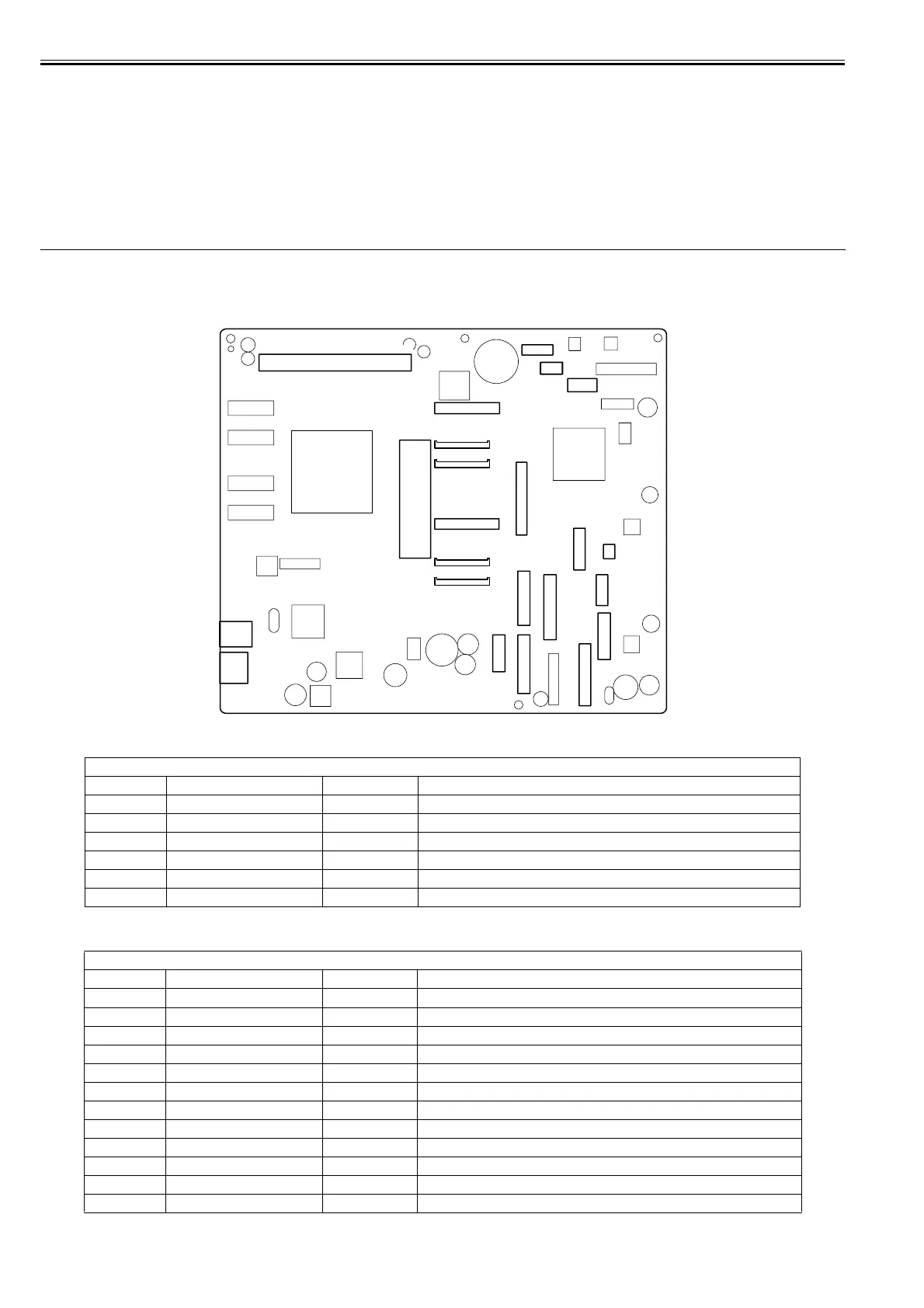

6.2.1 Main controller PCB
0016-8457
iPF6100
F-6-1
T-6-1
T-6-2
J1001 (USB)
Pin Number Signal name IN/OUT Function
1 VBUS IN USB VBUS (+5V)
2 D- IN/OUT USB data (-)
3 D+ IN/OUT USB data (+)
4 GND - USB GND
5 GND - GND (Connector shell)
6 GND - GND (Connector shell)
J1101 (Connect to IEEE1394 board)
Pin Number Signal name IN/OUT Function
1 GND - GND
2 GND - GND
3 GND - GND
4 +3.3V OUT Power supply (+3.3V)
5 +3.3V OUT Power supply (+3.3V)
6 +3.3V OUT Power supply (+3.3V)
7 +3.3V OUT Power supply (+3.3V)
8 +3.3V OUT Power supply (+3.3V)
9 +3.3V OUT Power supply (+3.3V)
10 N.C. - N.C.
11 GND - GND
12 PME# IN Power management enable signal
J401
J2601
J1101
J3701
J3801
J3401
J3501
J3601
J1201
J1001
J2703
J3203
J3301
J3211
J2801
J3911
J2511
J3011
J2512
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
J401
J2601
J3411
J3101
J3402
J1101
J3701
J3801
J1801J1801
J3401
J3501
J3601
J1201
J1001
J2703
J3202
J3301
J3211
J2801
J3911
J2511
J3011
J2512
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
11
