Canon iPF6100 - Ink Passage System

Chapter 2
2-81
2.5.2 Ink passage system
0013-4334
iPF6100 / iPF6200

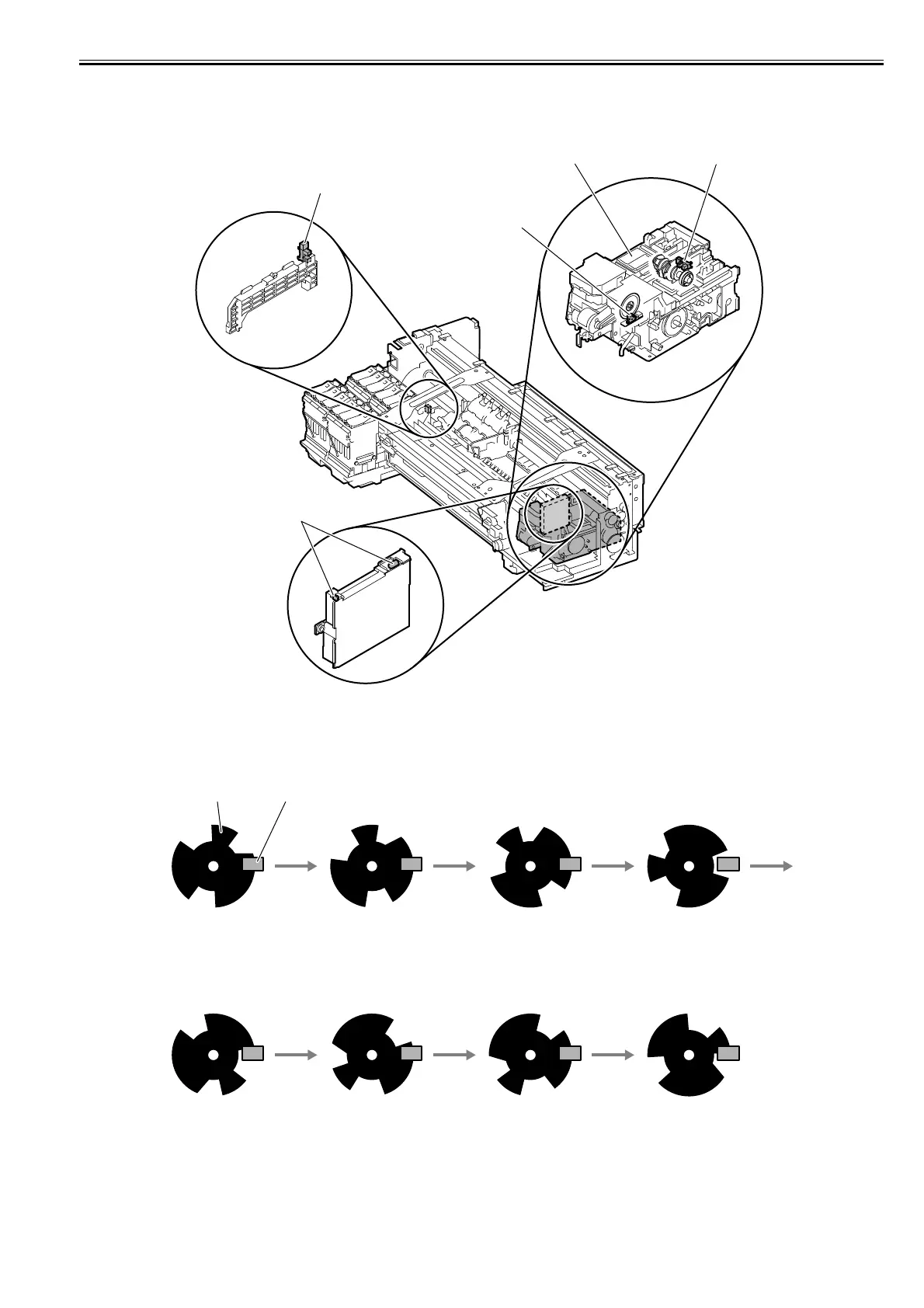

F-2-74
Pump cam sensor
The photo-interrupter-type pump cam sensor detects that the sensor light is shielded or unshielded by the rotary cam. The sensor detects the purge unit capping and
wiping states with the combination of the state detected by the pump cam and the state of pump motor rotation control performed by the pump encoder.
F-2-75
Purge unit
Pump encoder sensor
Pump cam sensor
Valve open/closed detection sensor
Head management sensor
- Carriage lock - Capping
- Suction
- Air passage valve open
- Idle suction
- Printing
- Suction during printing
- Wiping - Carriage lock
- Air passage
- Carriage move - Idle ejection
- Idle suction
Rotary flag
Sensor
