Canon iPF6100 - Waste Ink Collection Unit

Chapter 4
4-52
4.3.14 Waste Ink Collection Unit
0016-8537
iPF6100 / iPF6200 / iPF6000S / iPF6300 / iPF6350 / iPF6300S

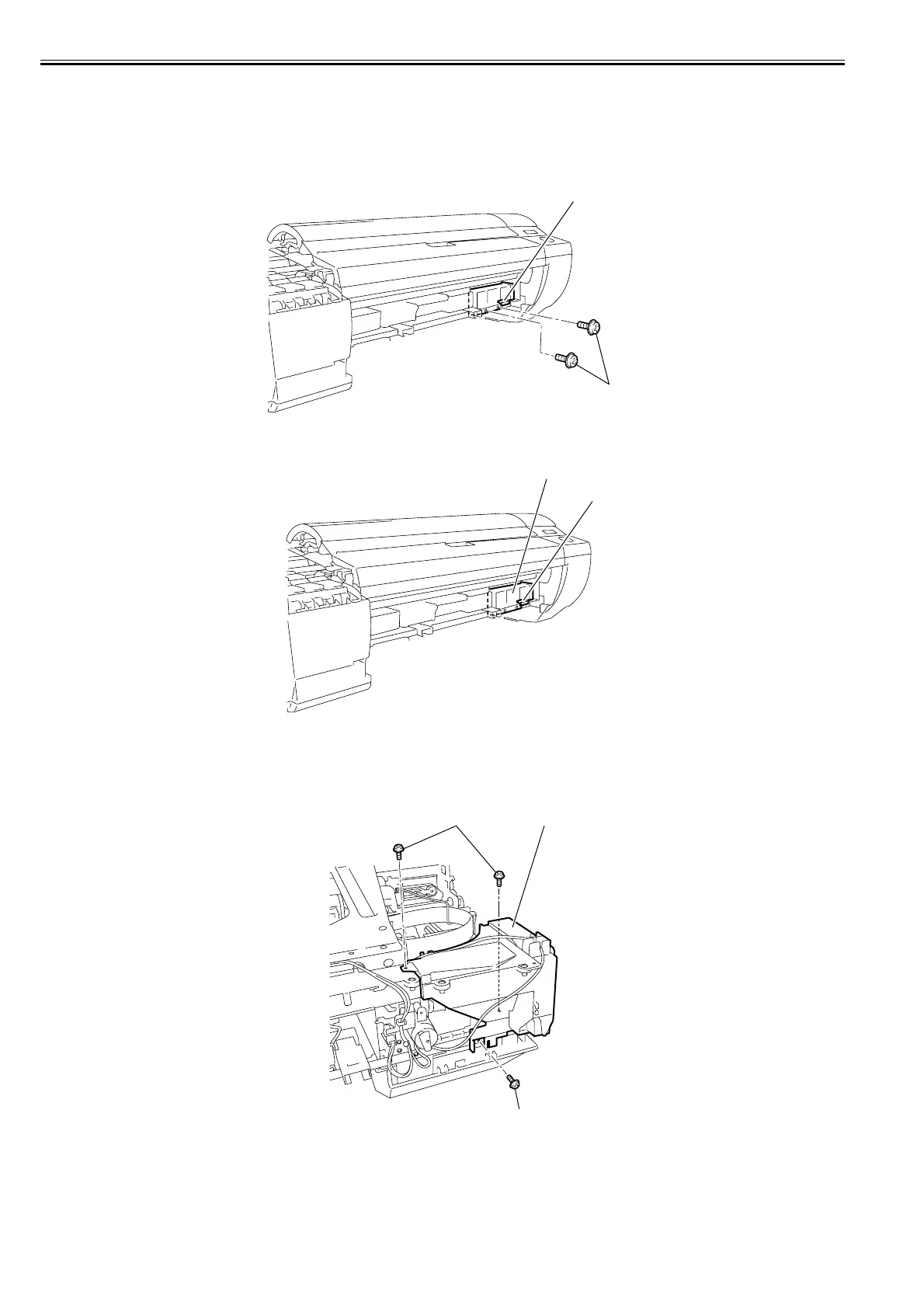

a) Removing the waste ink box
1) When removing the waste ink box, first remove the output guide.
2) Remove the two screws[1] and connector cover[2].
F-4-116
3) Disconnect the connector[1], and then remove the waste ink box[2].
F-4-117
b) Removing the mist fan
1) When removing the mist fan, first open the top cover, and then remove the output guide, right circle cover, right upper cover, operation panel, mist filter, filter
cover, filter, right cover, and right front cover.
Refer to DISASSEMBLY/REASSEMBLY > Points to Note on Disassembly and Reassembly > External Cover.
2) Remove the three screws[1] and disconnect the connector, and then remove the mist fan[2].
F-4-118
[1]
[2]
[2]
[1]
[1]
[1]
[2]
