4.3.13 Purge Unit
0016-8514
iPF6100 / iPF6200 / iPF6000S / iPF6300 / iPF6350 / iPF6300S
a) Removing the purge unit

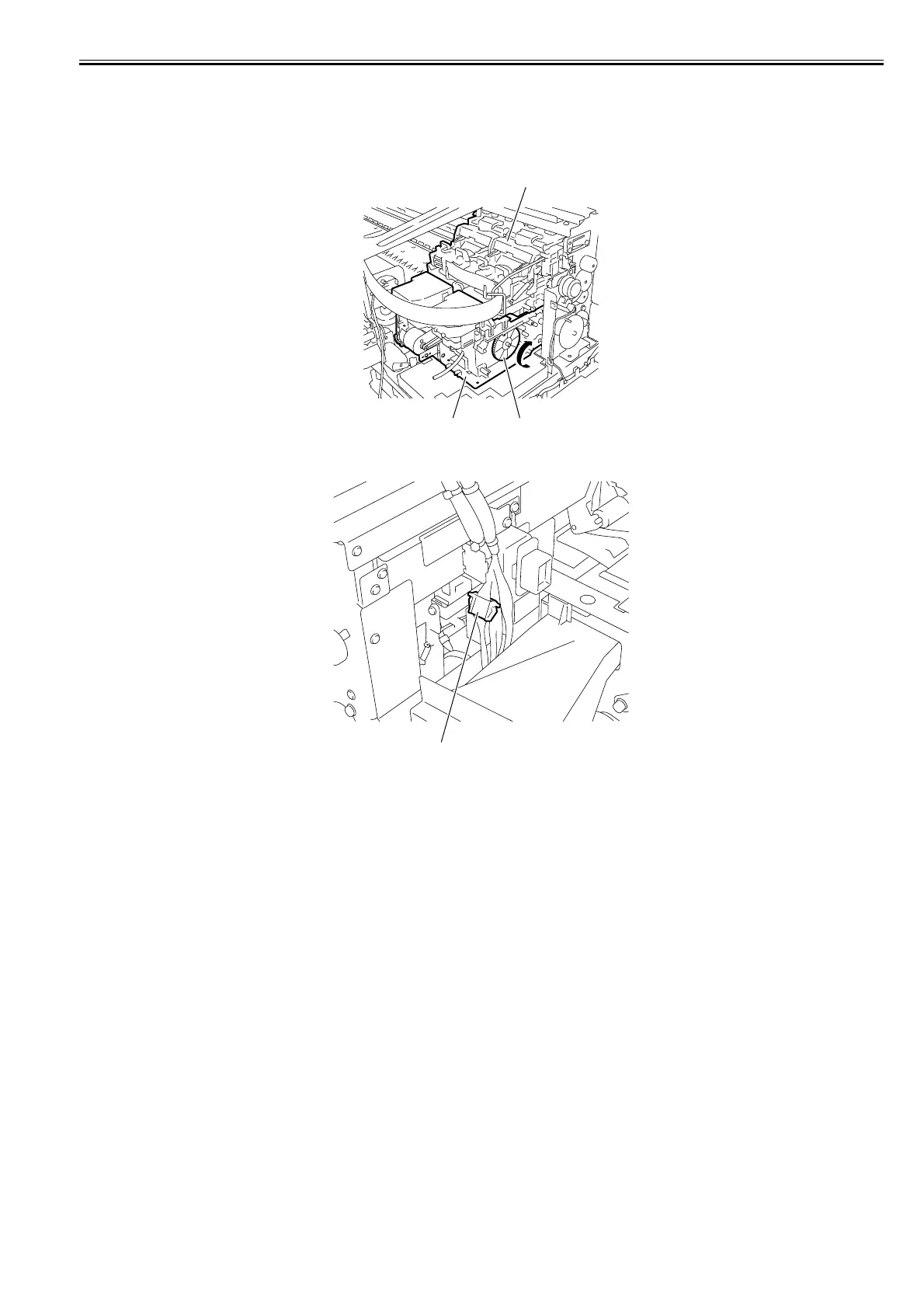

1) Turn the gear[1] of the purge unit[3] in the direction of the arrow to unlock and uncap the carriage. Next, move the carriage[2] onto the platen.
F-4-109
2) Remove the connector[1] from the rear of the unit to free the harness from the harness guide.
F-4-110
[1][3]
[2]
[1]
