Chapter 2
2-45
2.3.3 Paper Path
2.3.3.1 Outline
2.3.3.1.1 Overview of Paper Path
0016-8200
iPF6100 / iPF6200 / iPF6000S / iPF6300 / iPF6350 / iPF6300S
The paper path consist of roll feed unit, feed roller unit, pinch roller drive unit that applies/releases pressure to/from the pinch roller, spur drive unit that moves the
spur up/down, and various sensors that detect the media feed status, allowing media to be fed in three ways, fed, and ejected.

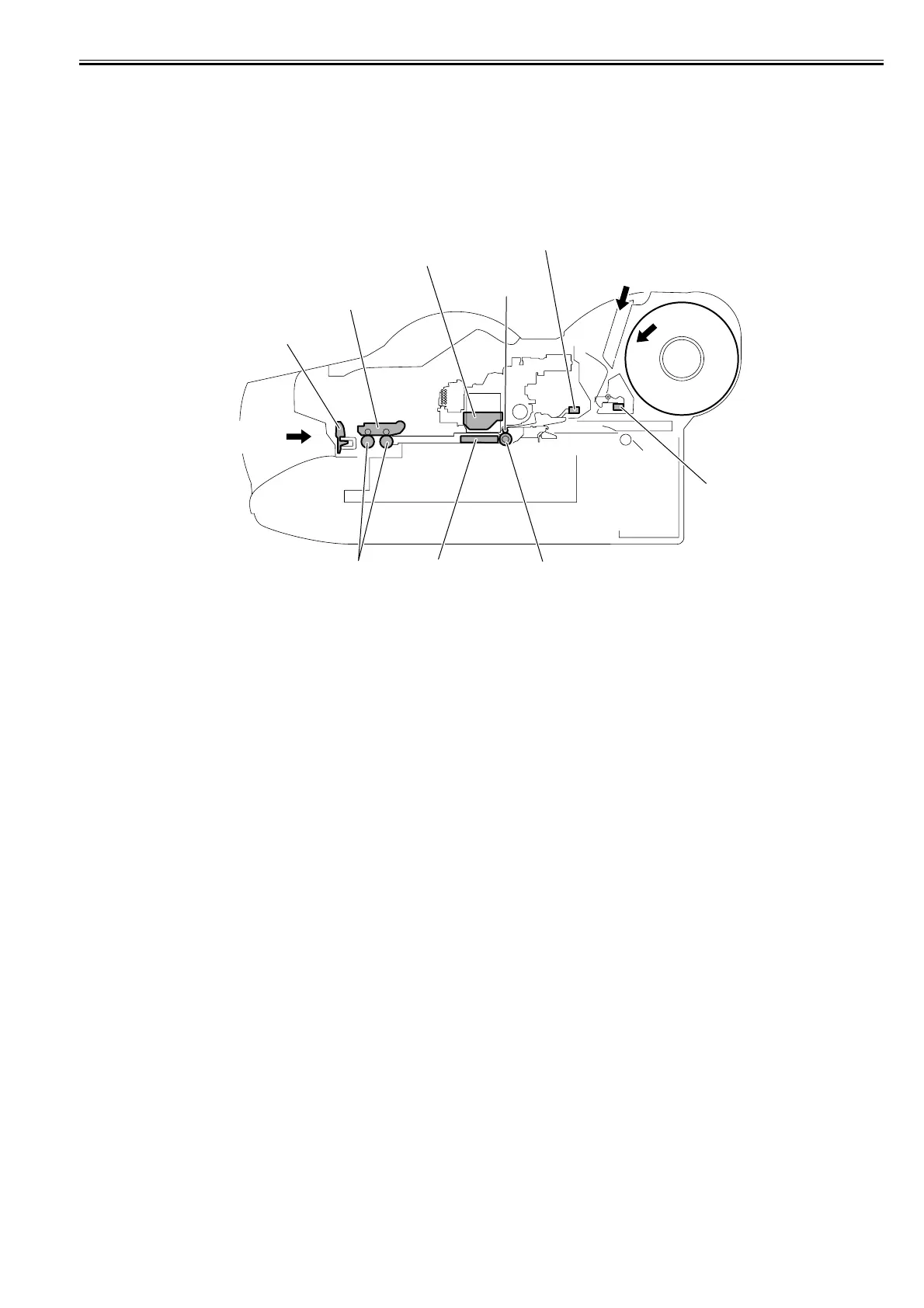

F-2-36
Roll media
sensor
Roll media
Multi sensor
Feed roller
Paper detection sensor
Manually fed cut sheet (top)
Manually fed cut
sheet (front)
Pinch roller
Platen
Eject roller
Spur unit
Cutter
