Chapter 1
1-145
1.7 Safety and Precautions
1.7.1 Safety Precautions
1.7.1.1 Moving Parts
0013-3746
iPF6100 / iPF6200 / iPF6000S / iPF6300 / iPF6350 / iPF6300S

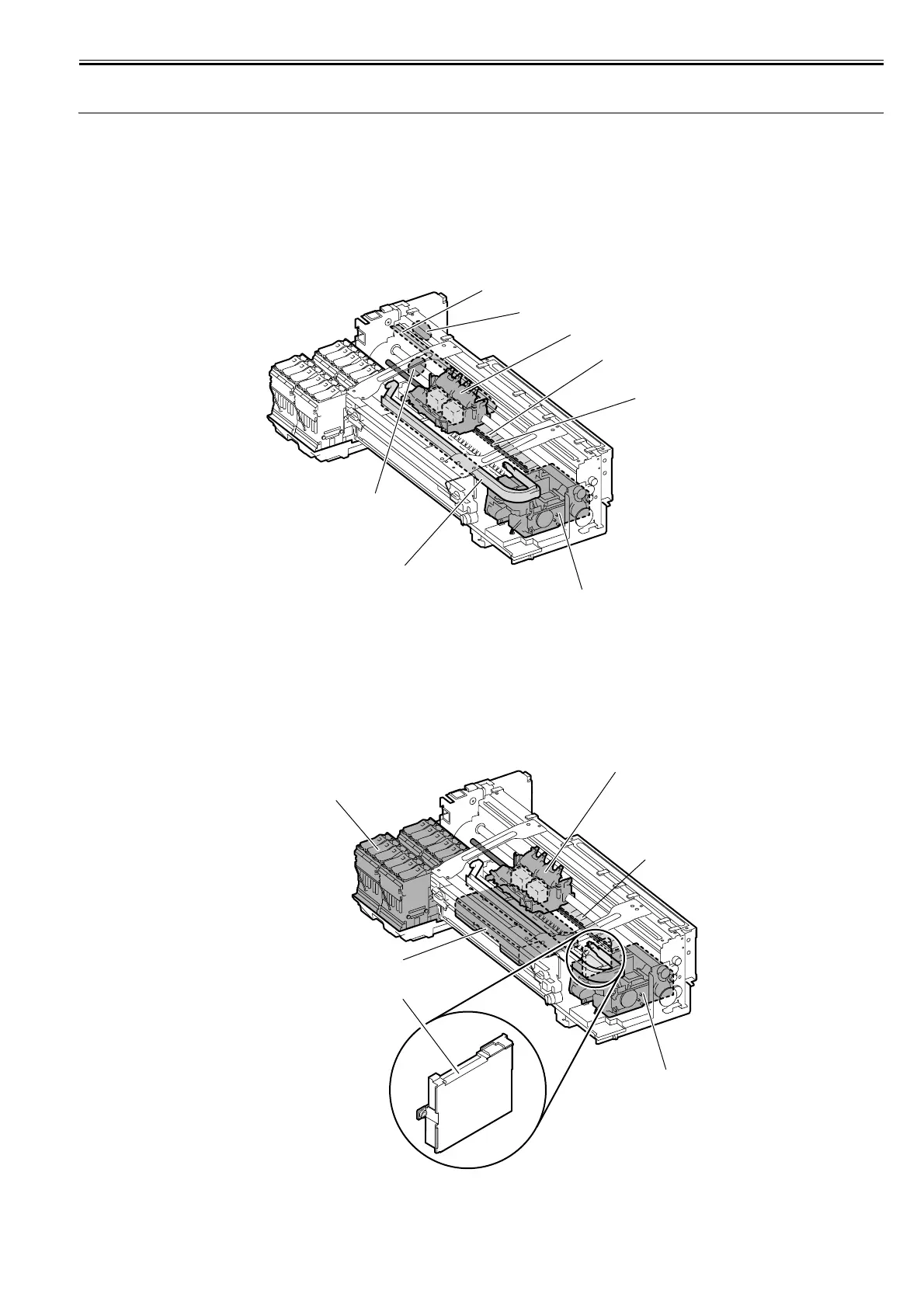

Moving parts of the printer include the carriage unit driven by the carriage motor, the carriage belt, the ink tube, the flexible cable, the feed roller driven by the feed
motor, the pinch roller, and the purge unit driven by the purge motor.
To prevent accidents, if the top cover is opened in the online/offline mode, the carriage motor, feed motor, and other driving power supplies are turned off.
F-1-54
1.7.1.2 Adhesion of Ink
0013-3747
iPF6100 / iPF6200 / iPF6000S / iPF6300 / iPF6350 / iPF6300S
(1) Ink passages
Be careful not to touch the ink passages of the printer to prevent the printer, workbench, ands, and clothes from being stained with ink.
The ink flows through the ink tank unit, carriage unit, purge unit, maintenance jet tray, maintenance cartridge, and the ink tubes that relay ink to individual units.
F-1-55
Feed motor
Flexible cable
Ink tube
Purge unit
Carriage unit
Carriage motor
Pinch roller
Feed roller
Platen
Ink tank unit
Purge unit
Carriage unit
Maintenance cartridge
Maintenance-jet tray
