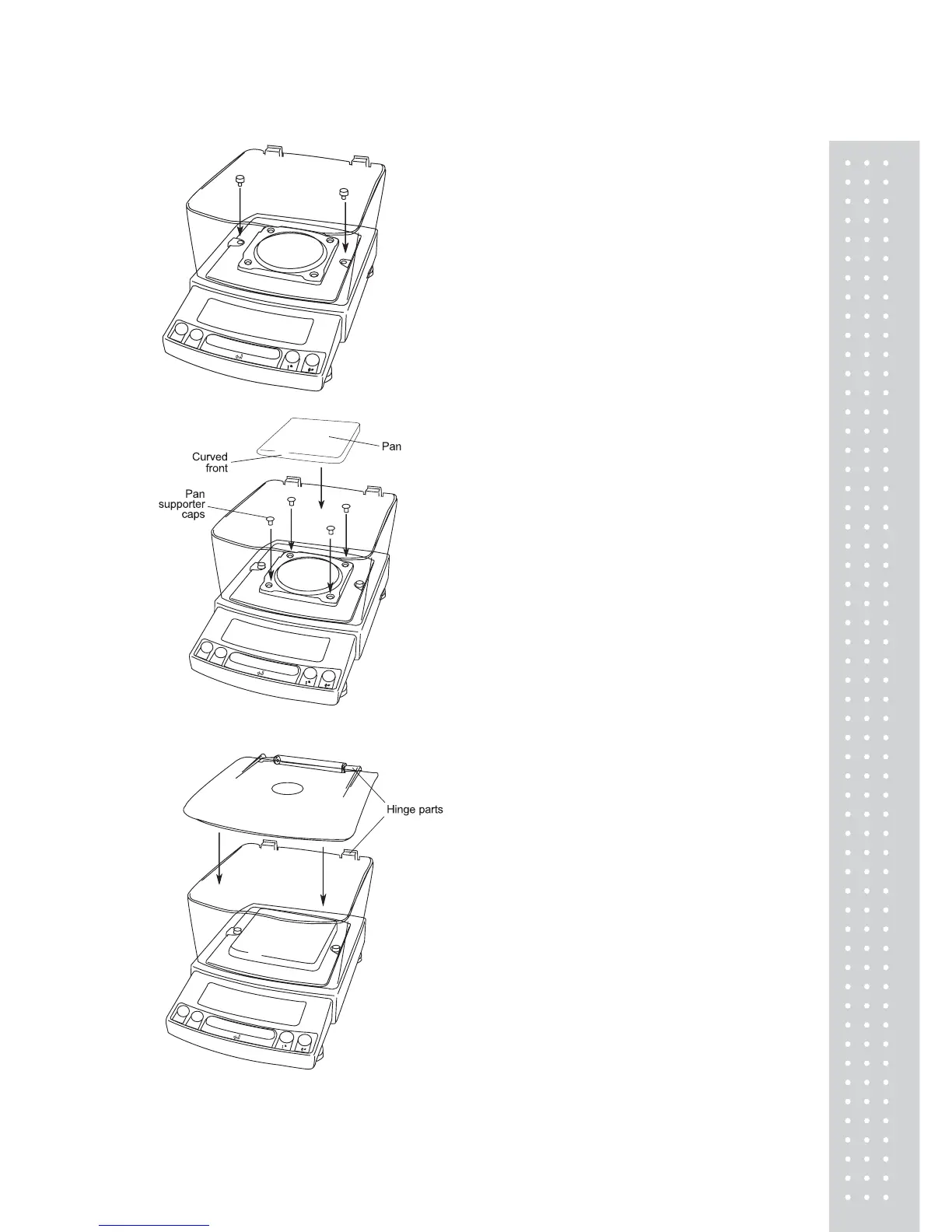

(2) Fit windbreak main on top of the balance
main body
, and fasten it with two fixing
knobs.
(3) Insert the four pan su
pporter caps into the
holes in the top of the balance. Place the
pan on them. Posit
ioners on the pan mu
st
fit pan supporter caps.
(4) Place windbreak lid on top of windbreak
main fitting the hinge parts.
23
25
Table of Contents
Notation Conventions
2
Safety Precautions
3
Declaration of Conformity
4
Table of Contents
6
1 Introduction
10
2 Name and Function of Components
11
Components
11
Key Panel and Operation
13
Balance Display and Function
14
3 Specifications
15
4 Installation
16
Choosing the Installation Site
16
Unpacking and Delivery Inspection
18
Installation
21
Turning on the Power
26
Span Calibration
27
5 Basic Operation
29
Weighing
29
Changing the Unit Display
30
6 Windowsdirect Function
31
Introduction: Experience It
31
Set up Windowsdirect
31
Setting up the Balance
31
Cable Connection
32
Setting up the Computer
32
Start and Checking Operation
34
Troubleshooting
35
7 Menu Item Selection
37
What Is the Menu
37
Menu Map
37
Menu Item Selection Procedure
38
Setting Numeric Values
40
Related Useful Functions
41
Last Menu Recall
41
Returning to the Default Settings (Menu Reset)
41
Menu Lock
42
8 Built-In Clock Set-Up
43
Date
43
Date Output Style
43
Time
44
Setting Display During Stand-By
44
9 Display Selection
45
Bar Graph Display
45
Changing the Minimum Display Digit (10D:1D)
45
10 Calibration
46
What Is Calibration
46
Calibration Execution
47
Span Calibration Using the Built-In Weight (UW Series Only)
47
Calibration Check Using the Built-In Weight (UW Series Only)
48
Span Calibration Using External Weights
49
Calibration Check Using External Weights
50
Calibration Setting
51
Selecting the Calibration Type
51
PSC Fully-Automatic Calibration (UW Series Only)
51
Clock-CAL Fully-Automatic Calibration (UW Series Only)
52
PCAL: Calibration of the Built-In Weight (UW Series Only)
53
PCAL Password Setting (UW Series Only)
54
For GLP/GMP/ISO Conformance
55
Calibration Report Setting
55
Balance ID Setting
55
11 Environment
56
Overview
56
Stability and Response (Averaging)
56
Stability Detection Settings
57
What Is Stability Detection
57
Stability Detection Band
58
Timing of Stability Mark Illumination and Linked Operation
59
Tracking
59
12 Units
60
Unit Display Set-Up
60
Percentage (%) Conversion
61
13 Enhancing Productivity
62
Checkweighing and Target Display
62
Checkweighing (Comparator) Display Type 1
63
Checkweighing (Comparator) Display Type 2
63
Target Mode
64
Piece Counting (PCS)
65
Auto Print
66
Auto Zero
68
Zero Range
69
Taring/Printing at Stability
70
Pretaring Value
71
14 Application Functions
72
Solid Specific Gravity Measurement
72
Liquid Density Measurement
74
Peak Hold
76
Interval Timer
78
Add-On Mode
79
Animal Weighing
81
Formulation Mode
84
15 Connecting Peripheral Instruments
86
Electronic Printer
86
Personal Computer - RS-232C
87
Connecting the Cable
87
Data Format
88
Using Command Codes
90
Multi-Connection Mode
95
Communication Setting
98
Overview
98
Handshaking
98
Format
99
Communication Speed
99
Parity / Bit Length
99
Stop Bit
99
Delimiter
100
Decimal Point Symbol in Output Data
100
16 Maintenance and Transportation
101
Maintenance
101
Moving the Balance
101
17 Troubleshooting
102
General Display
102
Error Display
103
Troubleshooting
104
LCD (Liquid Crystal Display) Check
104
Appendices
105
A-1. Menu Map
105
A-2. Standard Accessories and Maintenance Parts List
110
A-3. Optional Accessories List
111
A-4. Specifications of Connectors
112
A-5. Table of Unit Conversion Constants
113
A-6. Performance Checks
114
A-7. Below-Weigh Hook Dimensions
115
A-8. Notes on Windowsdirect
116
Precautionary Measures
117
A-9. Index
118
