2-SAFETYINFORMATION

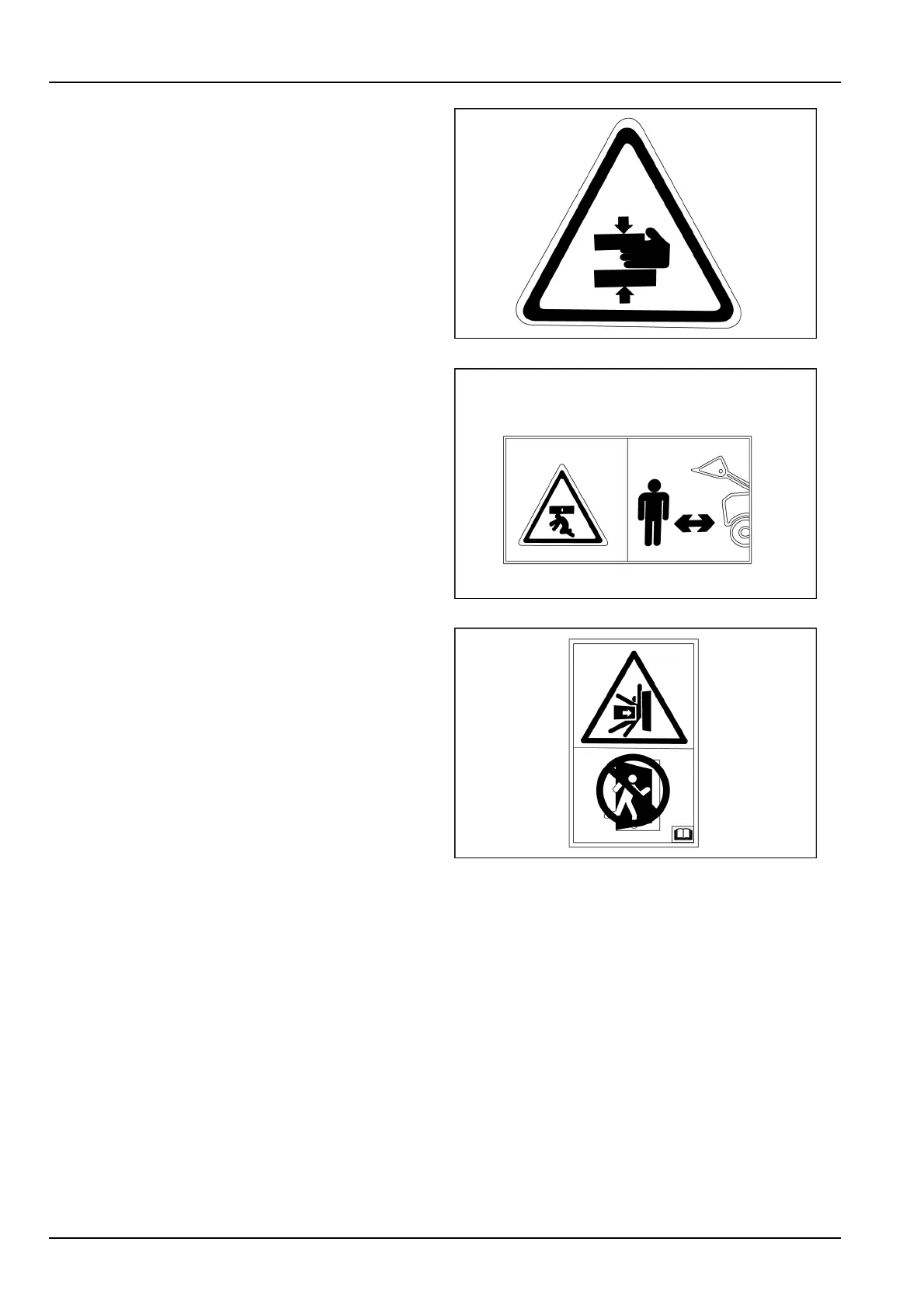

6.Crushinghazard

PTIL13TLB1433AA7

7.Fallingobjects,keepdistance

PTIL13TLB1437AA8

8.Fallinghazard

PTIL14TLB0053AA9

2-18
