Bucket Height Control

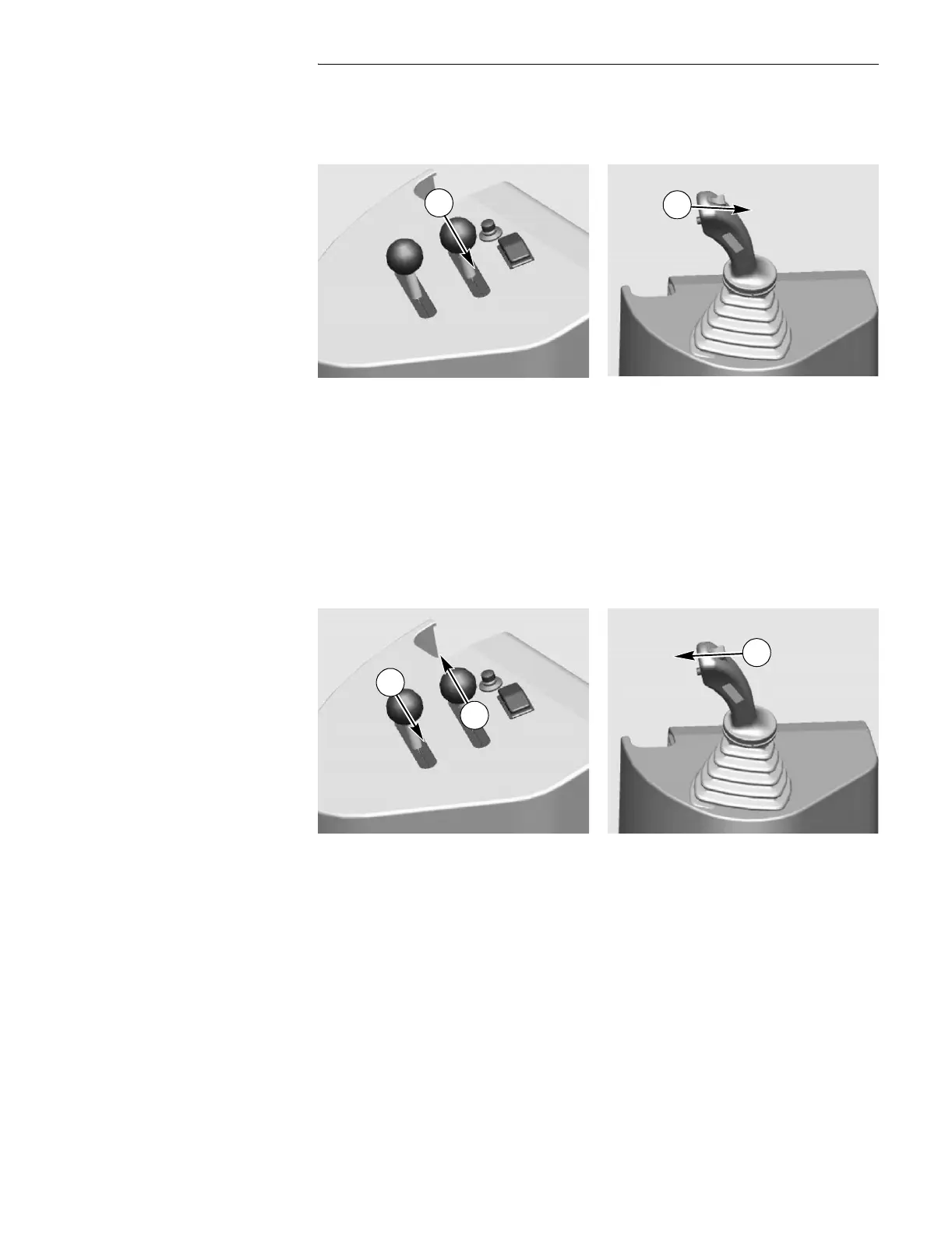

The bucket height control is used to automatically stop the loader arms at the
height that you select.
BC01E133
1. RAISE
BC01E131
1. RAISE
To actuate, move the control lever into the RAISE detent. The control lever(s) will
automatically return to the HOLD position when the loader bucket reaches the
height selected. See for Bucket Height Control Adjustments in this manual.
Return-To-Travel
NOTE: The Return-To-Dig function must be selected to select the Return-To-
Travel function.
The Return-To-Travel function is used to automatically stop the loader bucket at
the carry height that you select.
BC01E133
1. ROLLBACK DETENT
2. FLOAT
BC01E131
1. FLOAT AND ROLLBACK DETENT
To actuate, move the control lever(s) into the FLOAT and ROLLBACK detents.
The control lever(s) will automatically return to the HOLD position when the loader
reaches the Return-To-Travel position. See for Return-To-Travel Adjustment in
this manual.
