OPERATING INSTRUCTIONS
108
LEFT PAGE
Bur 6-34090EUR
LOADER CONTROL LEVERS
Two Spool Valve - Two Control Levers
BC01E133
NOTE: This page shows the basic
loader control lever positions. The
Detent Switch is in the OFF position.
See Loader Function Switches in this
manual for RETURN-TO-DIG,
BUCKET HEIGHT CONTROL and
RETURN-TO-TRAVEL/FLOAT
switches.
B1119A88J
HOLD: The loader arms and bucket will not move when the control levers
are in HOLD. When released, the control levers will return to HOLD
automatically.
5
5
3
4
2
1

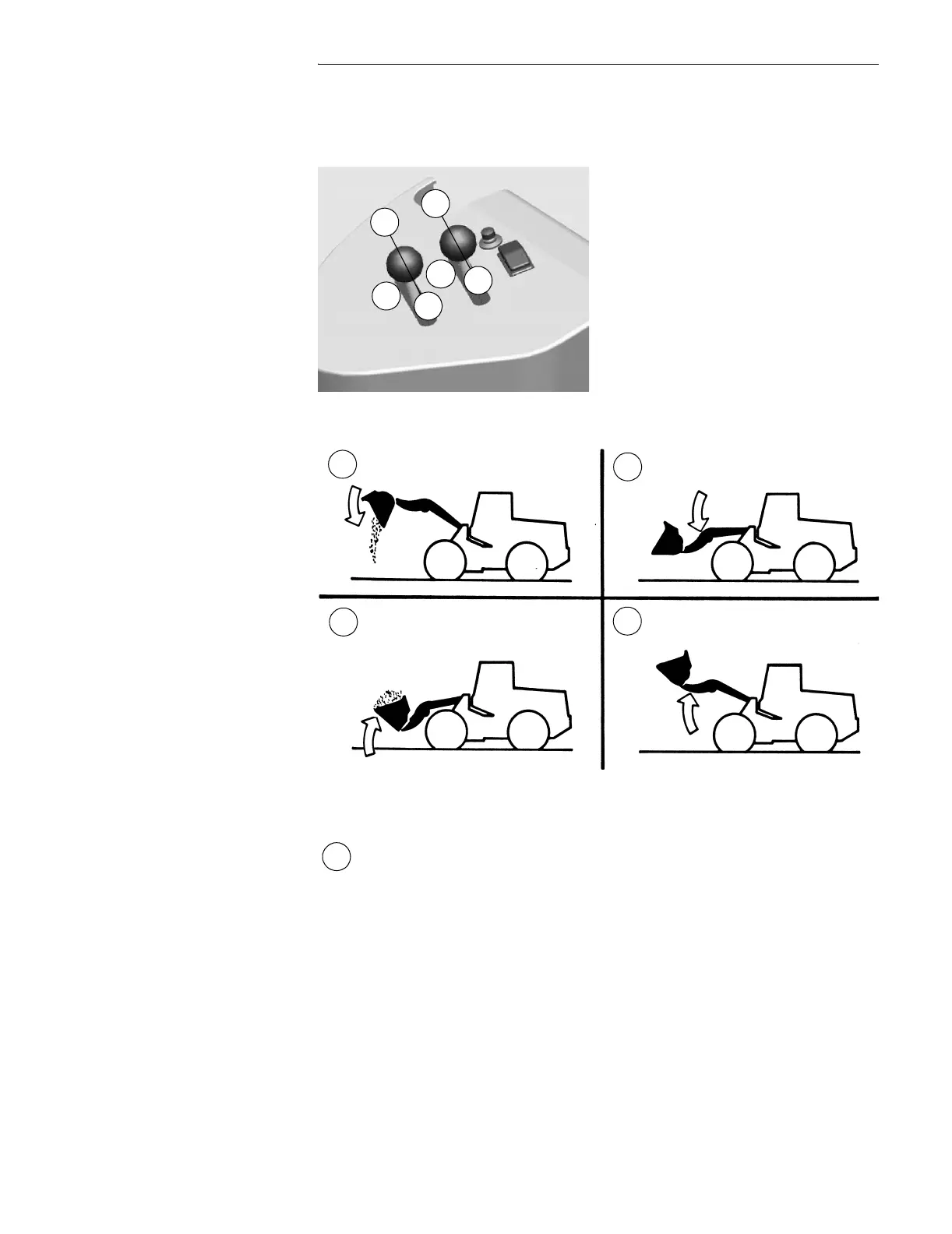

1. DUMP 2. ROLLBACK 3. LOWER 4. RAISE
1
2
3
4
5
