OPERATING INSTRUCTIONS
118
LEFT PAGE
Bur 6-34090EUR
AUXILIARY HYDRAULIC CONNECTION (IF EQUIPPED)

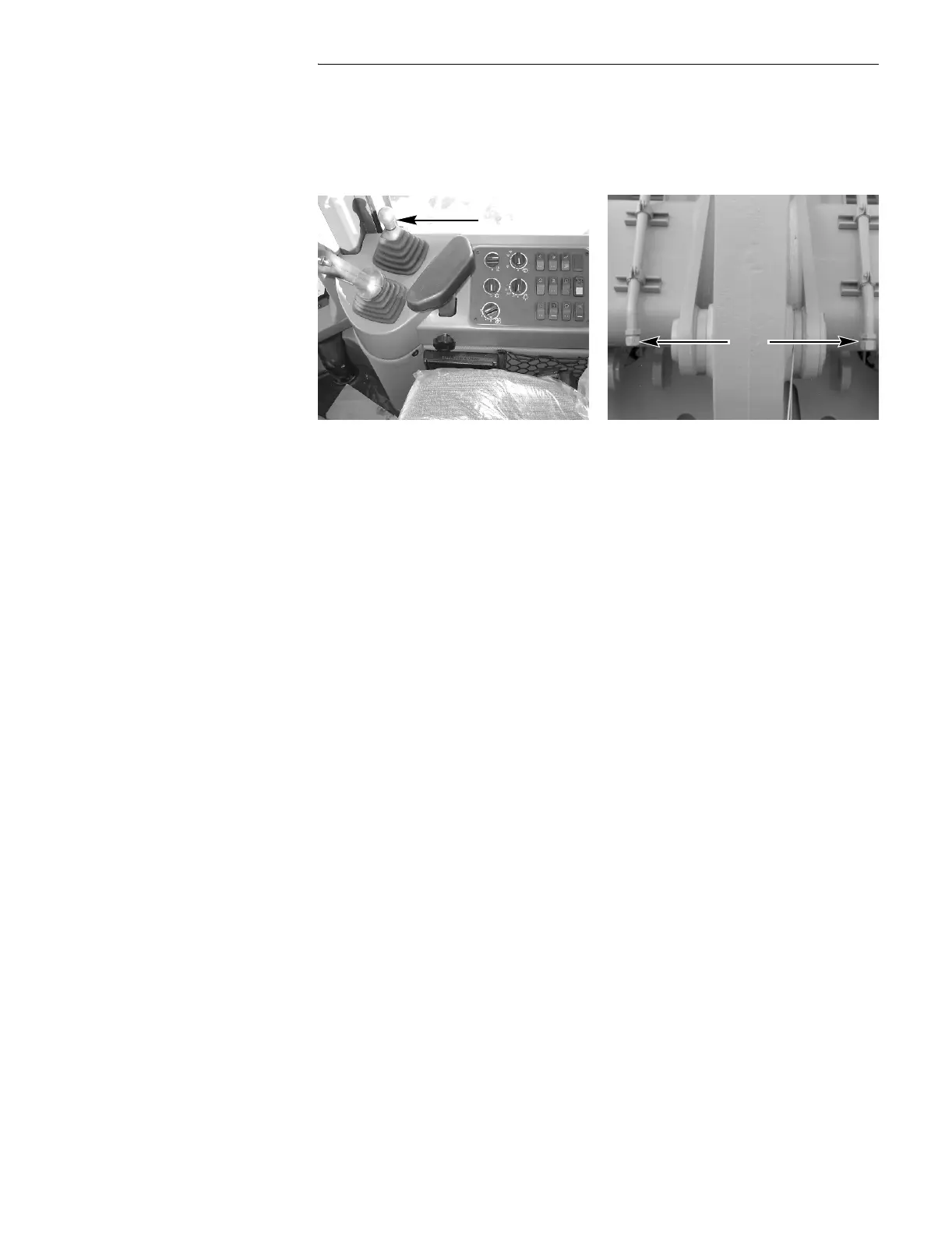

Your Wheel Loader is equipped with an Auxiliary Hydraulic System. A control
lever on the console controls flow to the auxiliary hydraulic connection points on
the lift arms.
BD02B056 FAR1048
Auxiliary Hydraulic System Specifications
921C Wheel Loader
Maximum System Pressure ................................................... 2 850 PSI (196 bar)
Maximum Capacity at 2 100 Engine RPM .............................................. 106 GPM (401 L/Min)
IMPORTANT: Exceeding the Auxiliary Hydraulic System specifications can result
in overheating and damaging the hydraulic system.
To Next Page
