33
RIGHT PAGE (First)
Bur 6-34090EUR
INSTRUMENT/CONTROLS

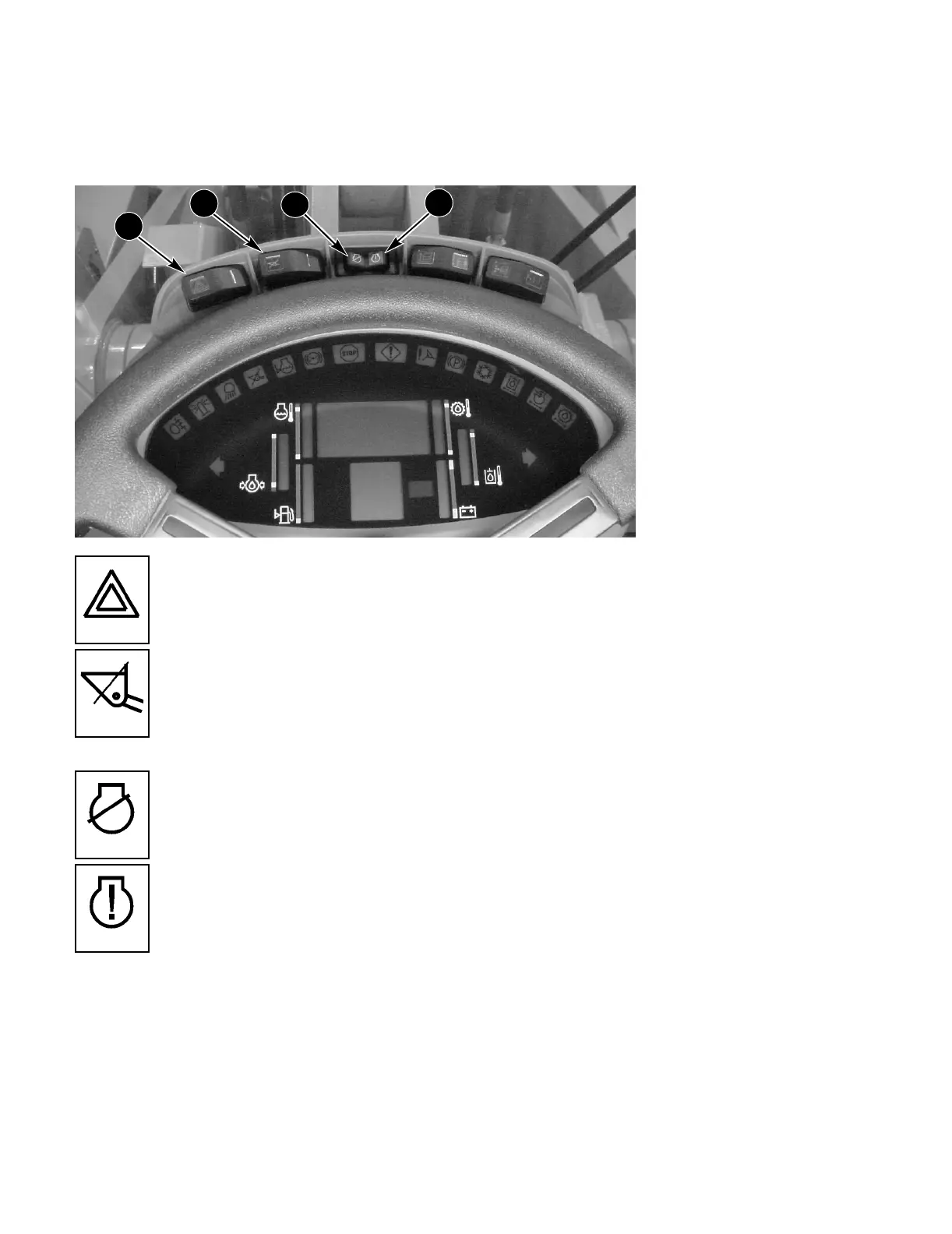

FRONT CONSOLE
BD02B020
1. FOUR-WAY FLASHER SWITCH:
Push the LH side of the of the flasher switch to actuate the flashers.
Push the RH side of the flasher switch for the OFF position.
2. PILOT CONTROL SWITCH:
Push on the LH side of the switch to disable the pilot controls, the
pilot control lamp will illuminate when the hydraulic control levers are
disabled. The loader linkage will stay in position when the pilot
controls are disabled. Push on the RH side of the switch to actuate
the pilot controls. The hydraulic control levers will now function.
3. ENGINE STOP LAMP:
The stop lamp provides critical operator messages. These messages
require immediate and decisive operator responses.
4. ENGINE WARNING/MAINTENANCE LAMP:
The warning/maintenance lamp provides important operator
messages. These messages require timely operator attention. The
warning lamp is also used to delineate diagnostics fault codes.
1
2
3
4
BC00B087
BC00B048
BC02B174
BCO2B175
