SPECIFICATIONS
217
RIGHT PAGE
Bur 6-34090EUR

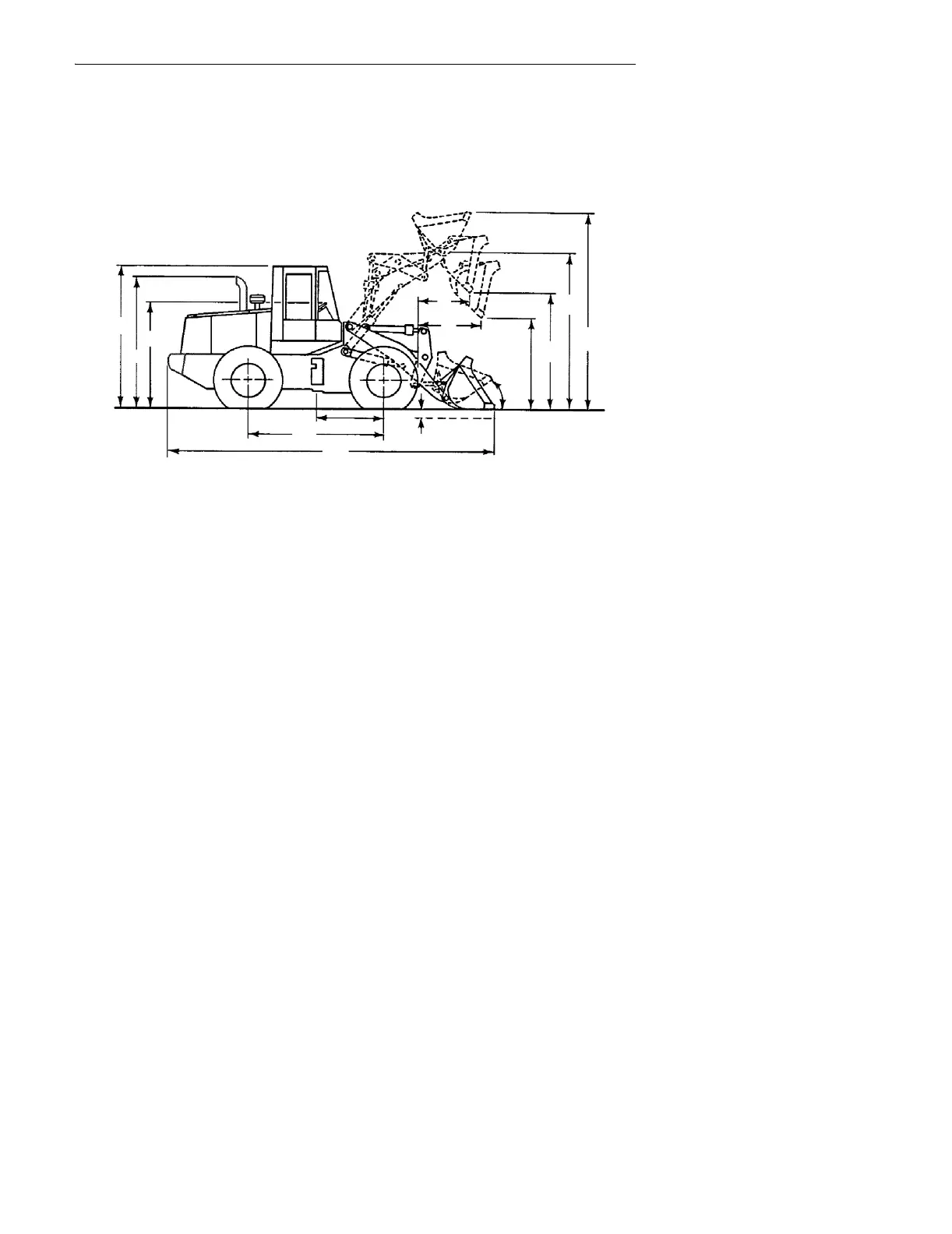

OPERATING DATA AND DIMENSIONS 921C
Specifications taken with 26.5 x 25, 20 PR, L3 tires, ROPS cab with heater, 2450
kg (5,400 pound) rear counterweight, fenders, lights, full fuel, and a 80 kg (175
pound) operator. Specifications per SAE J732, J1234, J742, and J818.
BS02B176
Machines with 3.63 m
3
(4.75 yd
3
) General Purpose Bucket
Tipping load, machine straight ............................. 19 643 kg (43 305 pounds)
Tipping load, 40 degree turn ................................ 15 675 kg (34 558 pounds)
A. Overall operating height, fully raised .................. 5 635 mm (18 foot 5.9 inch)
B. Height to bucket hinge pin, fully raised ............... 4 284 mm (14 foot 0.7 inch)
C. Dump height, 45 degree dump, full height .......... 3 146 mm (10 foot 3.9 inch)
D. Bucket reach, 45 degree dump, full height ........... 1 096 mm (3 foot 7.2 inch)
E. Bucket reach, 45 degree dump, 7 foot
(2134 mm) dump height ....................................... 1 747 mm (5 foot 8.8 inch)
Dump angle at full height ................................................................ 50 degree
F. Bucket rollback at ground line ......................................................... 39 degree
G. Digging Depth, bucket flat .................................................... 30 mm (1.2 inch)
H. Wheel Base ................................................................... 3 404 mm (134 inch)
Tread width ...................................................................... 2 210 mm (87 inch)
J. Overall length (without bucket teeth) .................. 8 612 mm (28 foot 3.0 inch)
K. Overall height to top of ROPS cab ....................... 3 571 mm (11 foot 8.6 inch)
L. Height to top of exhaust pipe ............................... 3 526 mm (11 foot 6.8 inch)
M. Height to top of steering wheel ............................. 2 837 mm (9 foot 3.7 inch)
Operating weight .................................................. 22 961 kg (50 621 pounds)
Turning angle from center ........................................................ 40 degree
A
B
C
D
E
F
G
H
J
K
L
M
7 FT
(2.13mm)
