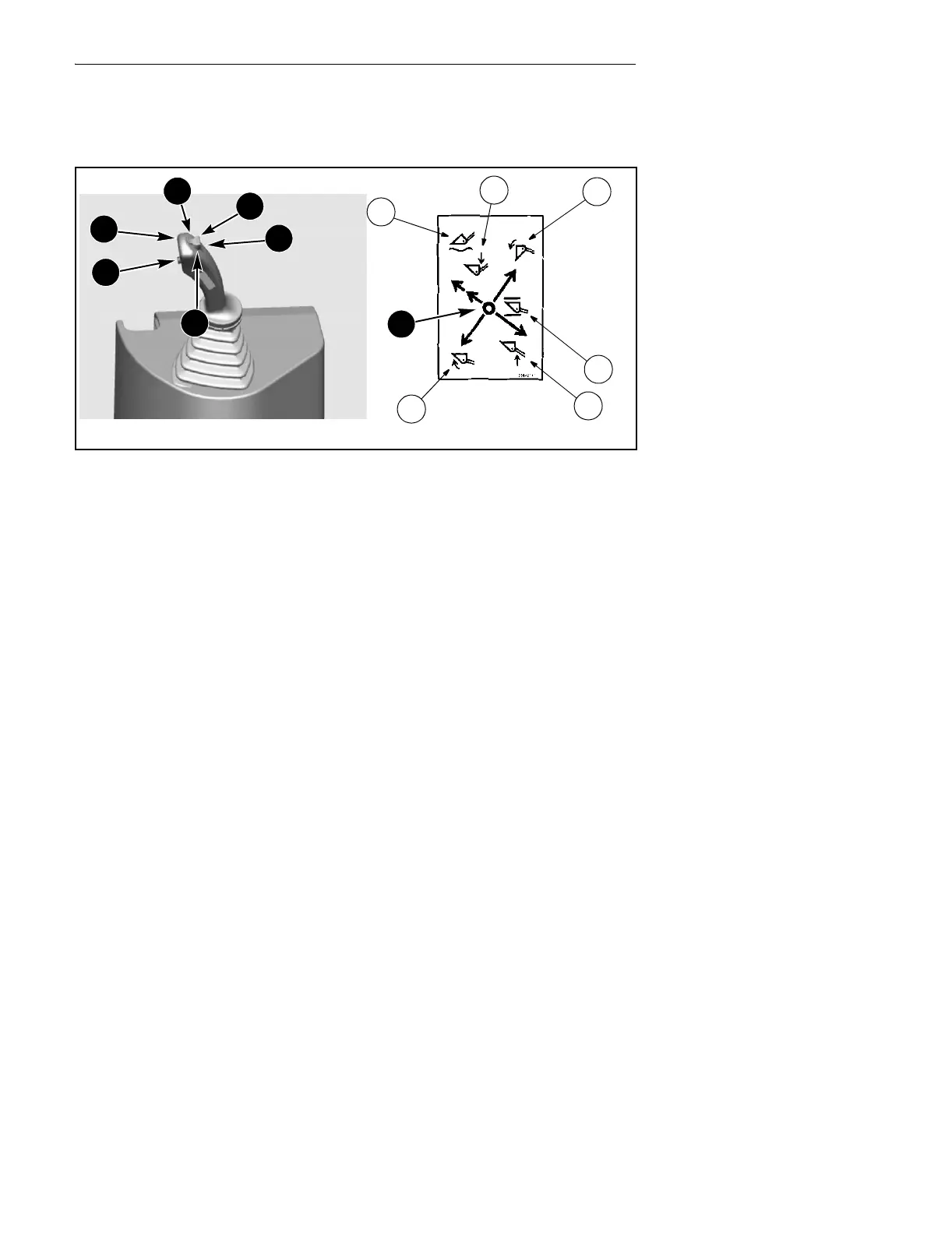

LOADER CONTROL LEVERS
Two Spool - One Lever
BC01E131/BS00B353
1. LIFT ARM AND BUCKET CONTROL
A. FLOAT (Detent): This is a detent position. When in the FLOAT (Detent)
position, the loader bucket can follow the level of the ground without
movement of the control lever.
B. LOWER
C. HOLD: The loader arms and bucket will not move when the control lever is
in the HOLD position. When released, the control lever will automatically
return to the HOLD position. You must manually move the control lever
from the FLOAT position to the HOLD position.
D. RAISE
E. DUMP
F. ROLLBACK
2. KICKDOWN BUTTON (DOWNSHIFT TRANSMISSION)
3. FNR SWITCH
G. FORWARD (Transmission)
H. NEUTRAL (Transmission)
I. REVERSE (Transmission)
1
A
E
C
D
F
B
1
2
3
I
H
G
