Case 921C - XR Machines with 3.82 M3 (5.0 Yd3) General Purpose Bucket

SPECIFICATIONS
222
LEFT PAGE
Bur 6-34090EUR
BS02B176
XR Machines with 3.82 m
3
(5.0 yd
3
) General Purpose
Bucket

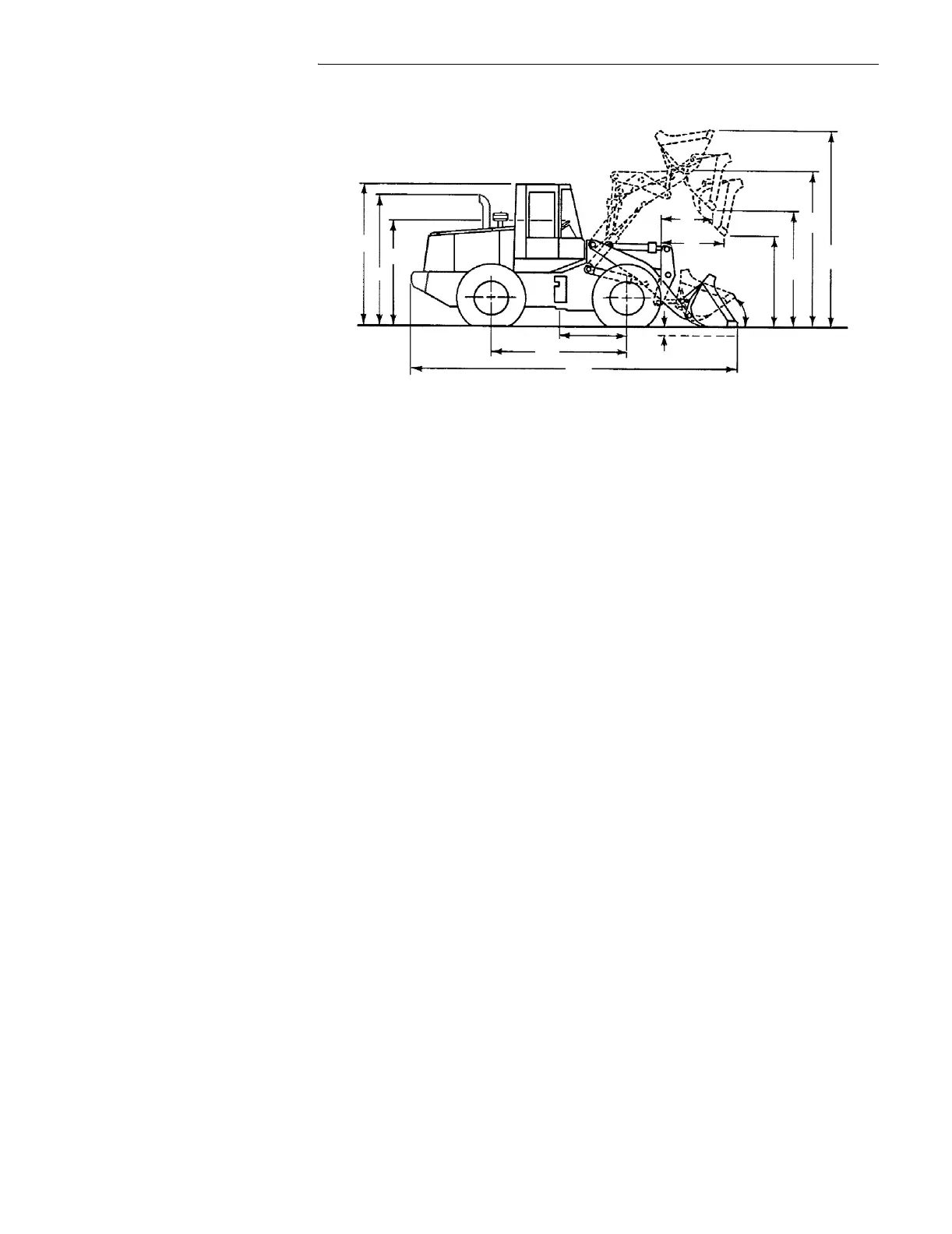

Tipping load, machine straight .............................. 15 393 kg (33 937 pounds)
Tipping load, 40 degree turn ................................. 12 359 kg (27 247 pounds)
A. Overall operating height, fully raised ................... 6 408 mm (21 foot 0.3 inch)
B. Height to bucket hinge pin, fully raised .............. 4 835 mm (15 foot 10.3 inch)
C. Dump height, 45 degree dump, full height ........... 3 679 mm (12 foot 0.9 inch)
D. Bucket reach, 45 degree dump, full height .......... 1 192 mm (3 foot 10.9 inch)
Dump angle at full height ................................................................ 45 degree
E. Bucket reach, 45 degree dump, 7 foot
(2 134 mm) dump height ....................................... 2 243 mm (7 foot 4.3 inch)
F. Bucket rollback at ground line ........................................................ 39 degree
G. Digging Depth, bucket flat .................................................... 44 mm (1.7 inch)
H. Wheel Base .................................................................... 3 404 mm (134 inch)
Tread width ....................................................................... 2 210 mm (87 inch)
J. Overall length (without bucket teeth) ................... 9 199 mm (30 foot 2.2 inch)
K. Overall height to top of ROPS cab ...................... 3 571 mm (11 foot 8.6 inch)
L. Height to top of exhaust pipe ............................... 3 526 mm (11 foot 6.8 inch)
M. Height to top of steering wheel .............................. 2 837 mm (9 foot 3.7 inch)
Operating weight ................................................. 23 465 kg (51 731 pounds)
Turning angle from center ........................................................ 40 degree
A
B
C
D
E
F
G
H
J
K
L
M
7 FT
(2.13mm)
