ELECTRICAL SYSTEM
210
LEFT PAGE
Bur 6-34090EUR

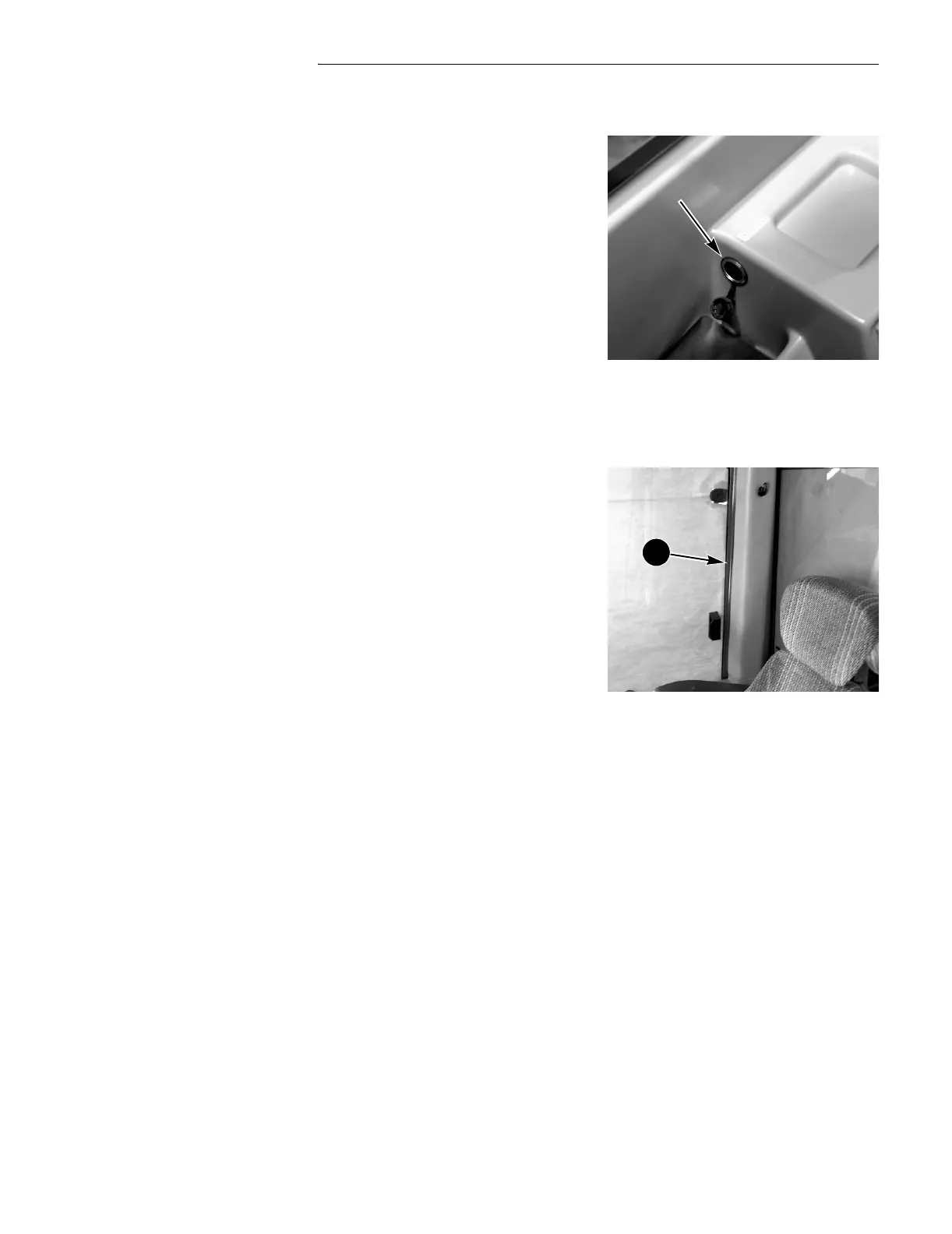

AUXILIARY POWER OUTLET (IF EQUIPPED)
The Auxiliary Power Outlet socket (12
volt) can be used for the connection of
a lighting device to help with service
and maintenance procedures.
NOTE: This is a
12 volt outlet.
BD00B003
AUXILIARY POWER EQUIPMENT MOUNTING
BRACKET LOCATION
The auxiliary power equipment
mounting brackets are located behind
the right and left ROPS post covers.
These brackets are for mounting
radios, phones, etc.
To locate the bottom of the mounting
bracket measure 300 mm (11.8 inches)
from the bottom edge of the plastic
panel. To locate the top of the
mounting bracket measure 420 mm
(16.5 inches) from the bottom edge of
the plastic panel. The mounting bracket
is approximately 70 mm (2.75 inches)
wide.
BD00B009
1. RIGHT ROPS POST COVER
1
