TRANSMISSION DISPLAY CENTER
RD97F206
The Transmission Display will show the status of the transmission control. The
Display contains the following information:
Direction Selected, shown at the top of the display center:
F - Forward
N - Neutral
R - Reverse
F - Flashing forward not engaged.
N - Flashing set control lever to neutral position.
R - Flashing reverse not engaged.
Requested Gear (gear position on shift lever), shown in the center of the gear
symbol:
1 - 1st Gear
2 - 2nd Gear
3 - 3rd Gear
4 - 4th Gear
Actual Gear, shown with bars to the right of the gear symbol.
The number of bars indicates the gear the transmission is actually in. This may
vary from the requested gear when the transmission is in the Automatic Mode.
Transmission Mode (Automatic or Manual), shown in the lower left of the display
center. A gear symbol with an “A” in the center will be displayed in the lower left of
the display when the transmission is in the Automatic Mode. When the
transmission is in the Manual Mode no symbol will be displayed.

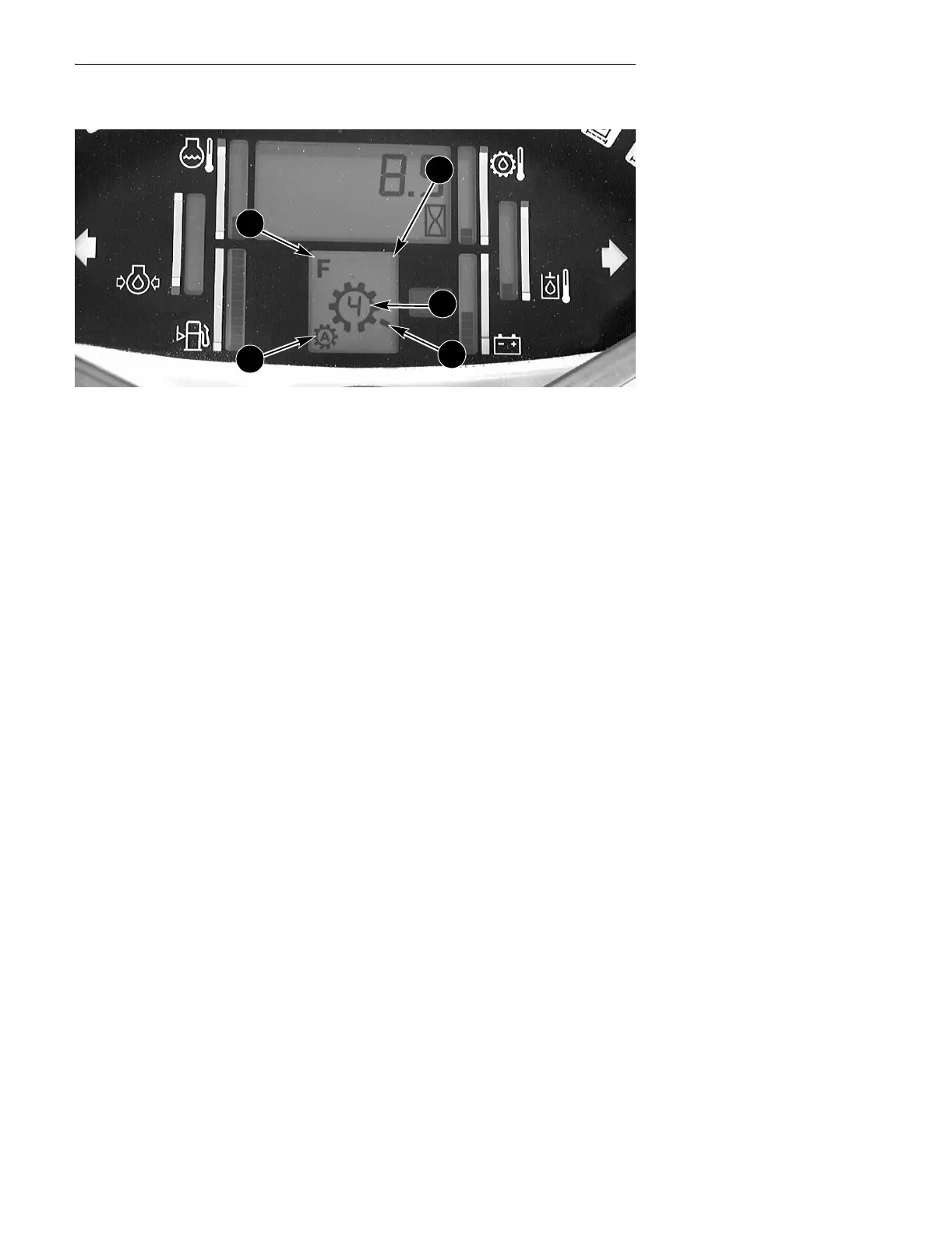

A. F - N - R C. GEAR E. AUTOMATIC MODE
B. DISPLAY CENTER D. BAR
E
A
B
C
D
