INSTRUMENTS/CONTROLS
38
LEFT PAGE
Bur 6-34090EUR

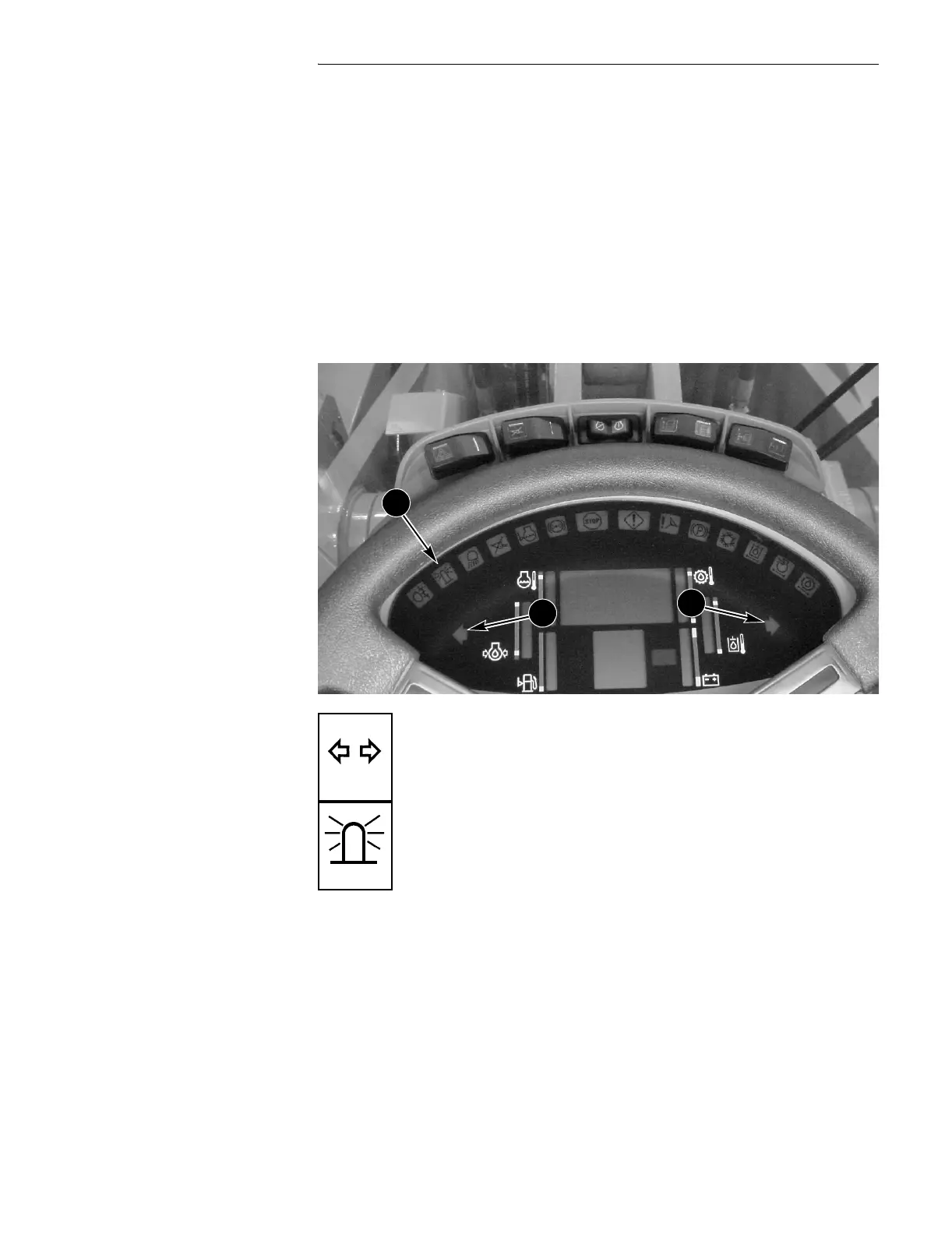

INSTRUMENT PANEL INDICATORS
Instrument Cluster
The instrument cluster will check each monitored system when you turn the key
switch to the ON position. All LED’s (Light Emitting Diodes) will illuminate, six bar
graphs will energize for three seconds, and the warning alarm will sound for three
seconds. At the end of this check all monitored systems will return to normal
operation. If there is an open circuit between a sensor and the instrument cluster,
the LED will flash and the warning alarm will sound for 5 seconds.
IMPORTANT: If during operation, the stop master warning lamp (on front
console) flashes and the warning alarm is continuous, stop the machine, stop the
engine, and find the problem.
BD02B020
1. INDICATOR LAMP FOR FOUR-WAY FLASHER AND TURN
SIGNALS:
This green indicator lamp will flash when you signal a turn or when
you actuate the four-way flashers.
2.
BEACON INDICATOR:
This indicator illuminates when the Beacon is in the ON position.
1
1
2
BS96H049
BC00B082
