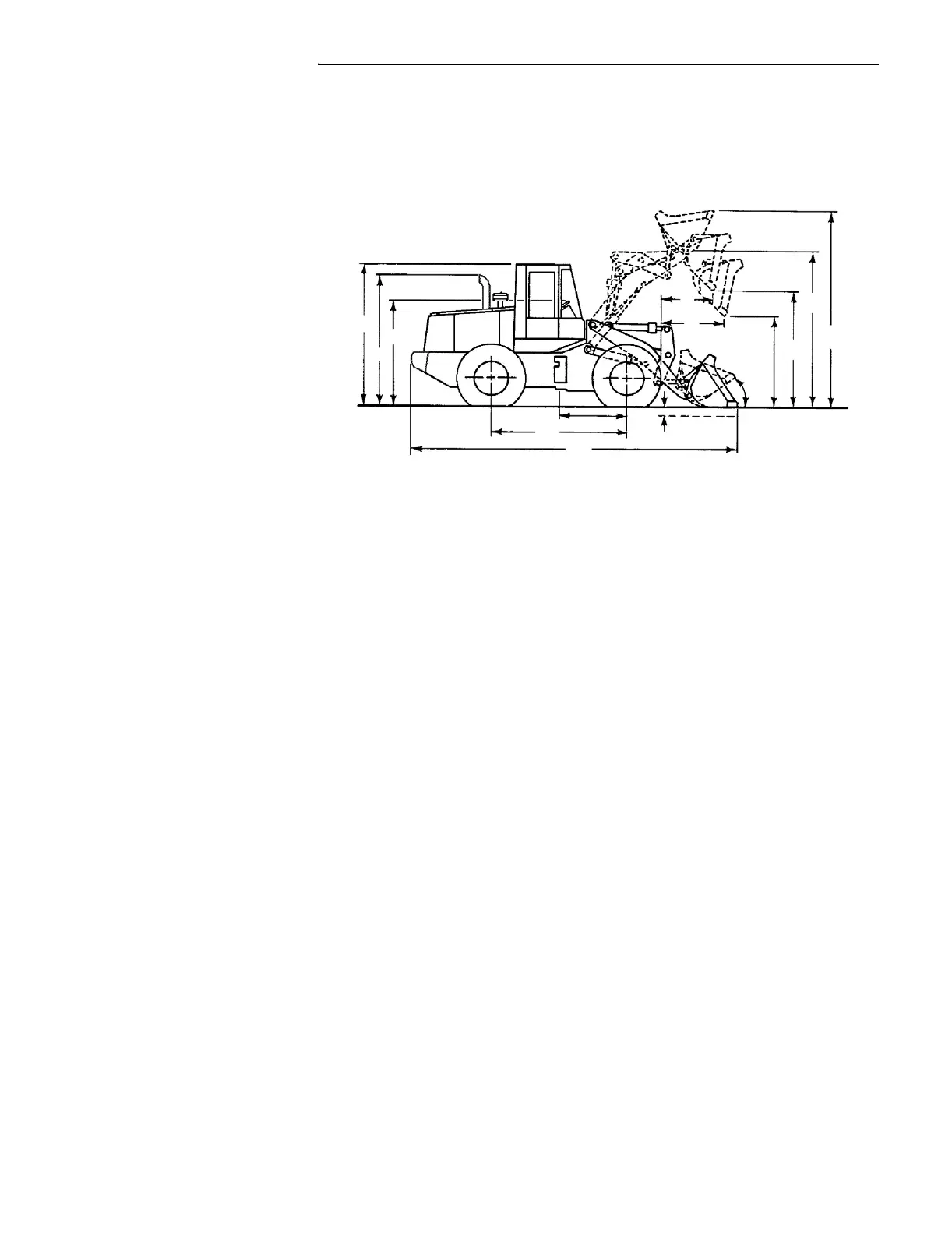

OPERATING DATA AND DIMENSIONS 921C XR
Specifications taken with 26.5 x 25, 20 PR, L3 tires, ROPS cab with heater, 2450
kg (5400 pound) rear counterweight, fenders, lights, full fuel, and a 80 kg (175
pound) operator. Specifications per SAE J732, J1234, J742, and J818.
BS02B176
XR Machines with 3.63 m
3
(4.75 yd
3
) General Purpose
Bucket
Tipping load, machine straight ............................. 15 375 kg (33 896 pounds)
Tipping load, 40 degree turn ................................ 12 358 kg (27 245 pounds)
A. Overall operating height, fully raised ................... 6 186 mm (20 foot 3.6 inch)
B. Height to bucket hinge pin, fully raised .............. 4 835 mm (15 foot 10.4 inch)
C. Dump height, 45 degree dump, full height ........... 3 698 mm (12 foot 1.6 inch)
D. Bucket reach, 45 degree dump, full height .......... 1 174 mm (3 foot 10.2 inch)
E. Bucket reach, 45 degree dump, 7 foot
(2134 mm) dump height ........................................ 2 232 mm (7 foot 3.9 inch)
Dump angle at full height ................................................................ 45 degree
F. Bucket rollback at ground line ........................................................ 39 degree
G. Digging Depth, bucket flat .................................................... 44 mm (1.7 inch)
H. Wheel Base .................................................................... 3 404 mm (134 inch)
Tread width ....................................................................... 2 210 mm (87 inch)
J. Overall length (without bucket teeth) ................... 9 173 mm (30 foot 1.1 inch)
K. Overall height to top of ROPS cab ...................... 3 571 mm (11 foot 8.6 inch)
L. Height to top of exhaust pipe ............................... 3 526 mm (11 foot 6.8 inch)
M. Height to top of steering wheel .............................. 2 837 mm (9 foot 3.7 inch)
Operating weight ................................................. 23 392 kg (51 570 pounds)
Turning angle from center ........................................................ 40 degree
A
B
C
D
E
F
G
H
J
K
L
M
7 FT
(2.13mm)
