ELECTRICAL SYSTEM
209
RIGHT PAGE
Bur 6-34090EUR

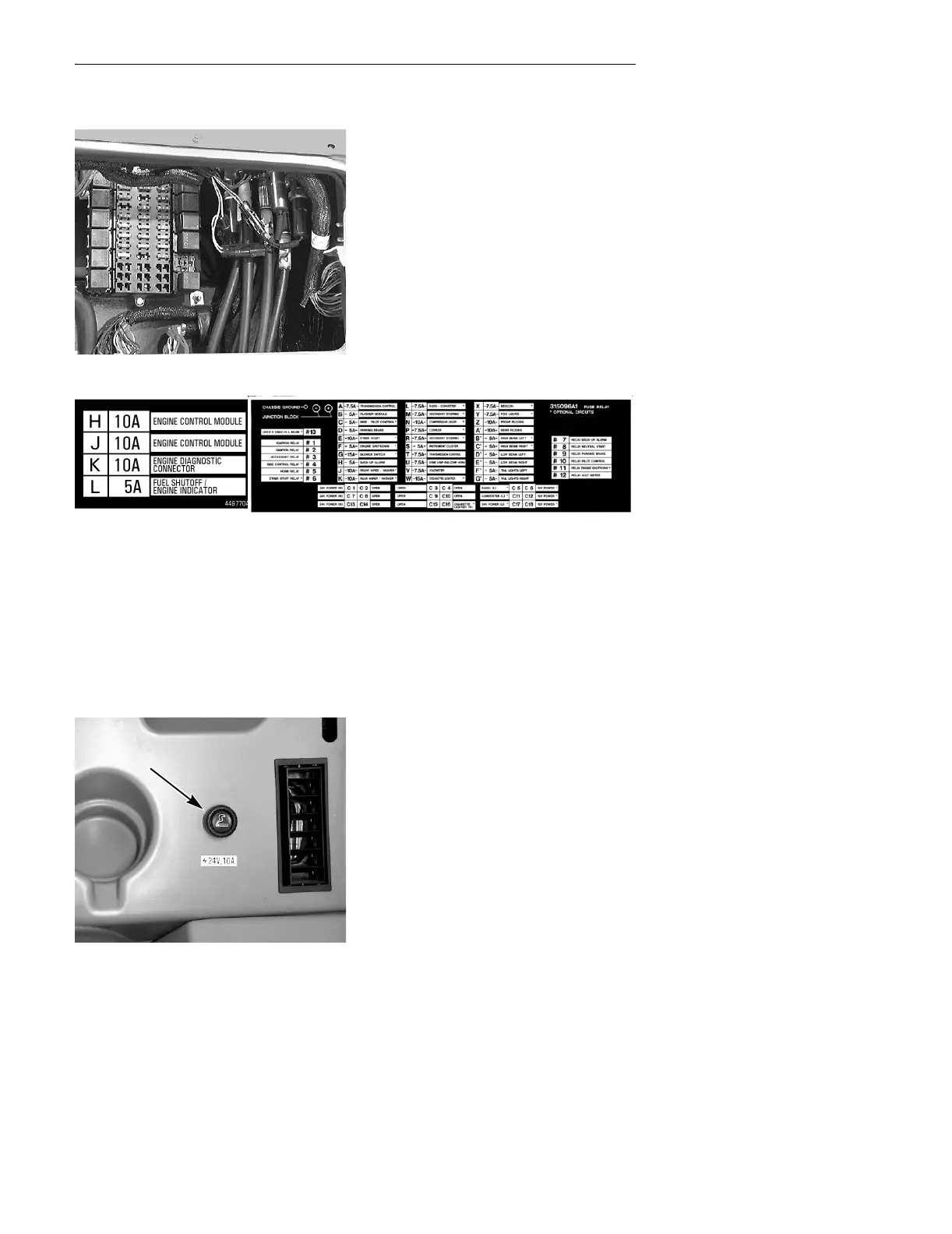

FUSES
RD97F154
The fuses in this machine are blade
type. To replace, pull the old fuse
straight out and push the new fuse
straight in. The amperage for each fuse
is stamped on the fuse. Refer to the
fuse panel decal for correct location of
each fuse.
449770A1/315096A1
SERVICE ELECTRICAL CONNECTOR (IF EQUIPPED)
The cigar lighter socket (24 volt) can
be used for the connection of a lighting
device to help with service and
maintenance procedures.
NOTE: This is a
24 volt outlet.
BD00B030
